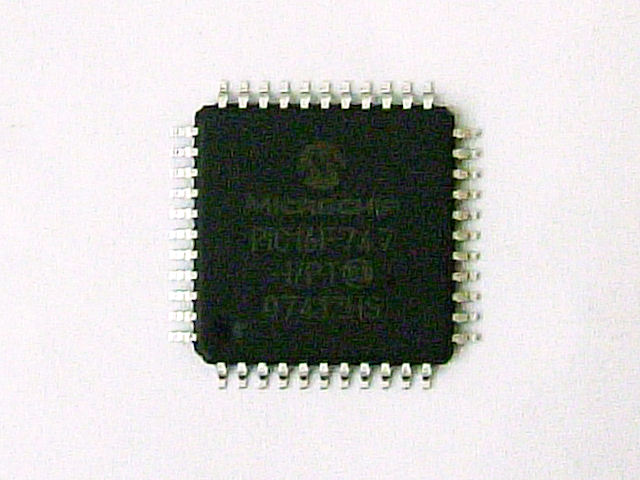

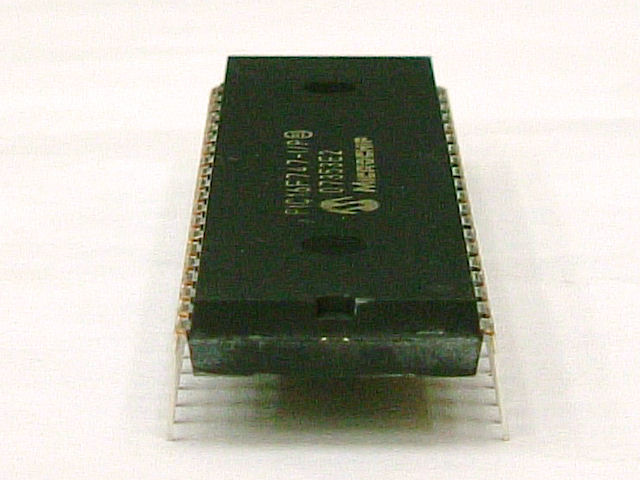

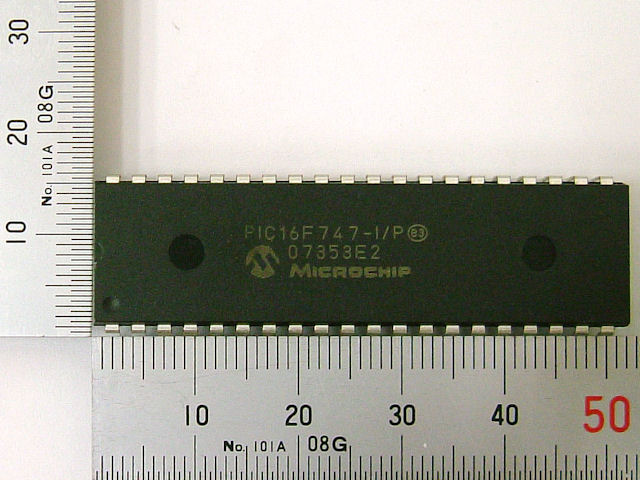

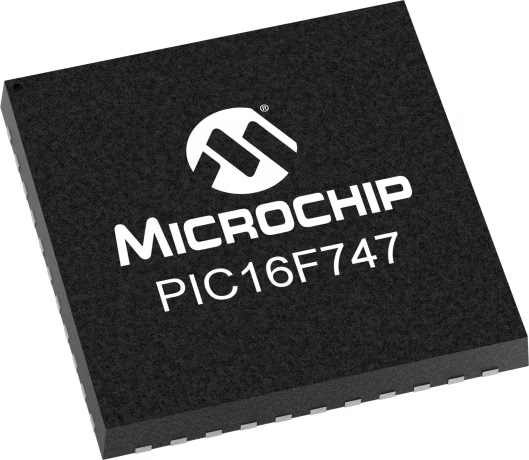

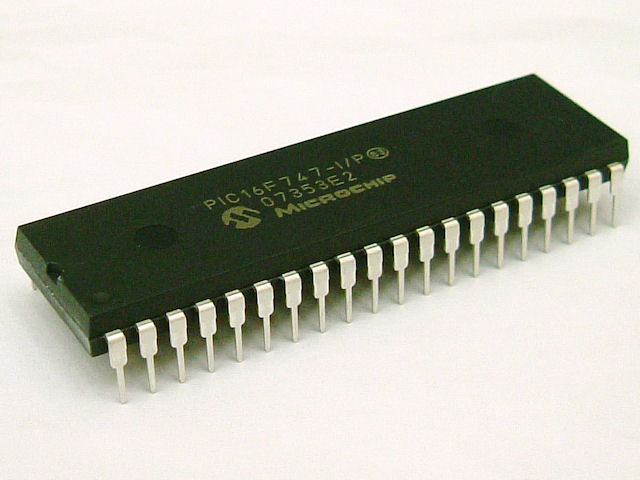

The PIC16F747 is a powerful embedded MCU featuring 7 KB of flash memory, 256 bytes of eeprom, and a 10-bit ADC, making it a cornerstone in automotive dashboards, industrial pumps, HVAC controllers, and medical monitoring devices. Its protected architecture includes locked configuration bits and encrypted readout protection, designed to safeguard proprietary source code.

Yet when original binary files are lost due to outdated programming tools or supplier bankruptcy, engineers need legitimate ways to duplicate the chip’s logic. Unlike simpler 8-bit cousins, the PIC16F747 uses a complex interrupt vector table and internal oscillator calibration values stored in protected memory – losing these means replacing whole systems. Our service specializes in ethical clone operations: we retrieve every data byte from the secured die, enabling production continuity without redesigning the entire PCB.

Special Microcontroller Features:

· Fail-Safe Clock Monitor for protecting critical applications against crystal failure;

· Two-Speed Start-up mode for immediate code execution

· Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Programmable Code Protection

· Processor Read Access to Program Memory

· Power-Saving Sleep mode

· In-Circuit Serial Programming (ICSP) via two pins

· MPLAB® In-Circuit Debug (ICD) via two pins

· MCLR pin function replaceable with input only pin

DEVICE OVERVIEW

This document contains device specific information about the following devices:

PIC16F737/767 devices are available only in 28-pin packages, while PIC16F747/777 devices are available in 40-pin and 44-pin packages. All devices in the PIC16F7X7 family share common architecture with the following differences:

· The PIC16F737 and PIC16F767 have one-half of the total on-chip memory of the PIC16F747 and PIC16F777.

· The 28-pin devices have 3 I/O ports, while the 40/44-pin devices have 5.

· The 28-pin devices have 16 interrupts, while the 40/44-pin devices have 17.

· The 28-pin devices have 11 A/D input channels, while the 40/44-pin devices have 14.

· The Parallel Slave Port is implemented only on the 40/44-pin devices.

· Low-Power modes: RC_RUN allows the core and peripherals to be clocked from the INTRC, while SEC_RUN allows the core and peripherals to be clocked from the low-power Timer1. Refer to

Section 4.7 “Power-Managed Modes” for further details.

· Internal RC oscillator with eight selectable frequencies, including 31.25 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz and 8 MHz. The INTRC can be configured as a primary or secondary clock source. Refer to Section 4.5 “Internal Oscillator Block” for further details.

To break into a locked PIC16F747, the first step is decapsulate the epoxy using acid or laser etching, exposing the silicon die. Then, specialists apply fault injection or side-channel analysis to attack the protective readout guard. This non-destructive method reveals the heximal (Intel HEX) program stored in flash and eeprom. Alternatively, we can decode the firmware via brute-force voltage glitching, effectively bypassing hardware locks. Once the archive is extracted, we clone the complete MCU – including configuration fuses and calibration constants – onto a new chip. For clients needing software updates, we also duplicate the binary into a file for emulation or disassembly. This process requires precision equipment and years of experience, as the PIC16F747’s secured boot block can self-destruct if probed incorrectly. Our lab ensures 100% data integrity, recovering even hidden memory sections that standard programmers ignore.

Why would a company need to hack its own embedded device? Consider a factory automation line using PIC16F747-based motor drives. The original source code was lost in a server migration, and the sole working unit is degrading. Without extraction, thousands of machines become obsolete. Our service lets you retrieve the firmware from that last good sample, then duplicate it onto fresh MCUs – saving millions in redesign costs. Similarly, medical syringe pumps with encrypted program logic can be decoded for safety recertification or feature enhancement. End users benefit from: (1) avoiding costly hardware re-engineering, (2) extending product life cycles, (3) creating backup archives for legacy repair, and (4) legally cloning batches of discontinued chips. Unlike reverse engineering for theft, our service requires proof of ownership. We turn a locked silicon puzzle into a usable heximal file – empowering you to maintain, upgrade, or migrate your embedded systems confidently.
