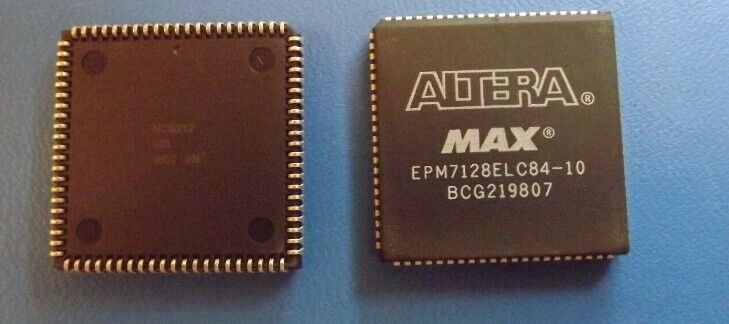

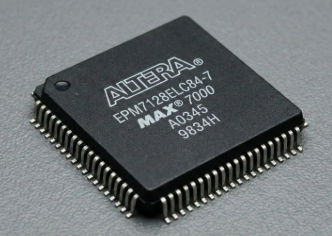

The EPM7128ELC84-10 is a high-density CPLD widely deployed in complex digital logic systems where deterministic timing, fast response, and stable embedded behavior are critical. It is commonly found in industrial automation platforms, telecom switching equipment, automotive control units, aerospace subsystems, and advanced instrumentation. As a programmable logic device, it stores configuration data that defines hardware-level logic behavior rather than executing traditional firmware instructions. This configuration, typically represented in binary or heximal form, acts as the functional equivalent of a program. However, when the original design archive, configuration file, or source code is lost, maintaining or replicating system functionality becomes extremely challenging. The Attack PLD EPM7128ELC84-10 Binary service is developed to help authorized users recover this critical embedded logic information from secured devices.

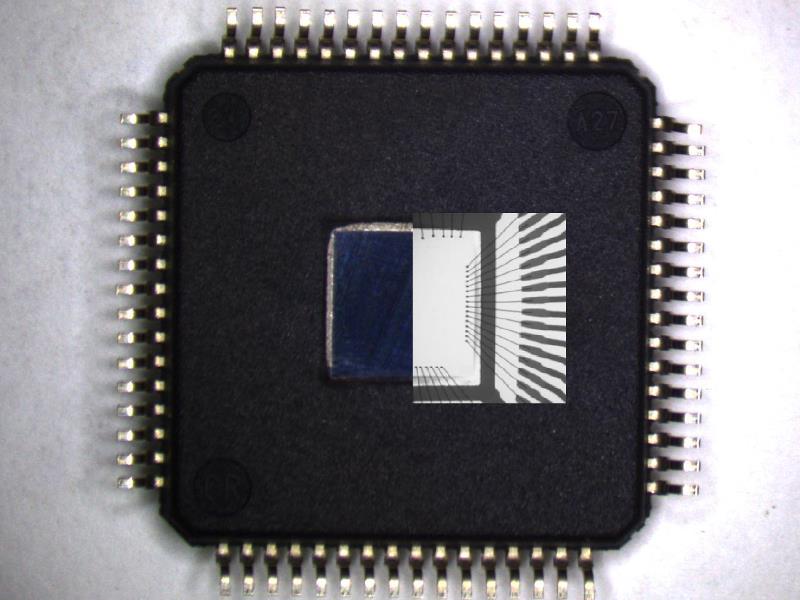

In real-world applications, the EPM7128ELC84-10 is often configured with protective, protected, locked, or encrypted mechanisms that restrict access to its internal memory and configuration data. These security measures prevent direct readout of the PLD’s binary or heximal program file, even for legitimate engineering purposes. Our service focuses on controlled methods to attack, break, or carefully decode these restrictions, allowing the safe retrieve of embedded configuration data. Through in-depth structural analysis of the PLD, we reconstruct the internal program, extract usable binary images, and rebuild complete archive outputs from secured devices. In advanced scenarios, specialized decapsulate approaches may be applied to expose deeply embedded memory structures, enabling access to otherwise inaccessible configuration elements. This process ensures that recovered data maintains fidelity to the original programmed logic.

Joint Test Action Group (JTAG) interface available in MAX 7000S devices – ISP circuitry compatible with IEEE Std. 1532

Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices

Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells

Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2) 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)

PCI-compliant devices available

Open-drain output option in MAX 7000S devices

Programmable macrocell flipflops with individual clear, preset, clock, and clock enable controls

Programmable power-saving mode for a reduction of over 50% in each macrocell

Configurable expander product-term distribution, allowing up to 32 product terms per macrocell

44 to 208 pins available in plastic J-lead chip carrier (PLCC), ceramic pin-grid array (PGA), plastic quad flat pack (PQFP), power quad flat pack (RQFP), and 1.0-mm thin quad flat pack (TQFP) packages.

Programmable security bit for protection of proprietary designs

3.3-V or 5.0-V operation

– MultiVoltTM I/O interface operation, allowing devices to interface with 3.3-V or 5.0-V devices after Attack PLD EPM7128ELC84-10 Binary (MultiVolt I/O operation is not available in 44-pin packages)

– Pin compatible with low-voltage MAX 7000A and MAX 7000B devices

Enhanced features available in MAX 7000E and MAX 7000S devices

– Six pin- or logic-driven output enable signals

– Two global clock signals with optional inversion

– Enhanced interconnect resources for improved routability

– Fast input setup times provided by a dedicated path from I/O pin to macrocell registers

– Programmable output slew-rate control

Software design support and automatic place-and-route provided by Altera’s development system for Windows-based PCs and Sun SPARCstation, and HP 9000 Series 700/800 workstations.

Additional design entry and simulation support provided by EDIF 2 0 0 and 3 0 0 netlist files, library of parameterized modules (LPM), Verilog HDL, VHDL, and other interfaces to popular EDA tools from manufacturers such as Cadence, Exemplar Logic, Mentor Graphics, OrCAD, Synopsys, and VeriBest.

Programming support

– Altera’s Master Programming Unit (MPU) and programming hardware from third-party manufacturers program all MAX 7000 devices

– The BitBlasterTM serial download cable, ByteBlasterMVTM parallel port download cable, and MasterBlasterTM serial/universal serial bus (USB) download cable program MAX 7000S devices

After extraction, the retrieved binary and heximal data must be translated into a usable engineering format. The recovered configuration is decoded and mapped into logical representations that reflect the original design intent. Although PLDs do not contain firmware in the conventional sense, their programmed logic functions as an embedded program, making accurate reconstruction essential. With properly processed file outputs and reconstructed source code equivalents, clients can clone or duplicate the original functionality onto replacement devices or migrate the design into newer CPLD or FPGA platforms. This allows legacy systems to continue operating without requiring a complete redesign from the ground up.

For equipment manufacturers, maintenance teams, and system integrators, the Attack PLD EPM7128ELC84-10 Binary service delivers substantial value. It enables recovery of critical configuration data, preservation of proven embedded logic, and extension of system lifecycle without disruption. Instead of replacing hardware due to locked or secured programmable devices, organizations can regain access to their essential design archive and embedded resources. By combining deep expertise in programmable logic with disciplined handling of protected and encrypted environments, this service provides a reliable pathway to restore, reuse, and replicate complex digital systems across a wide range of industries.
