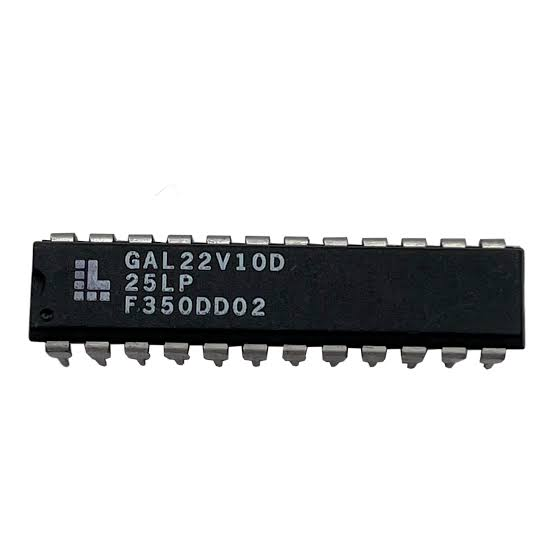

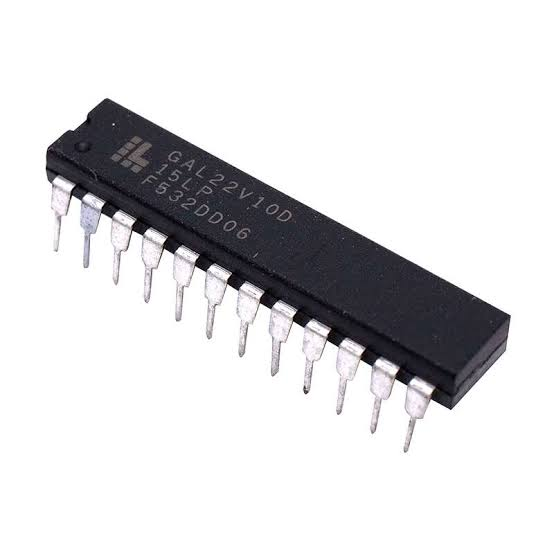

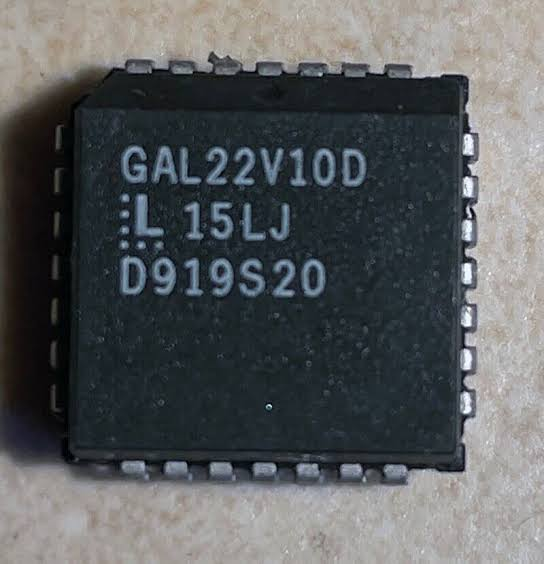

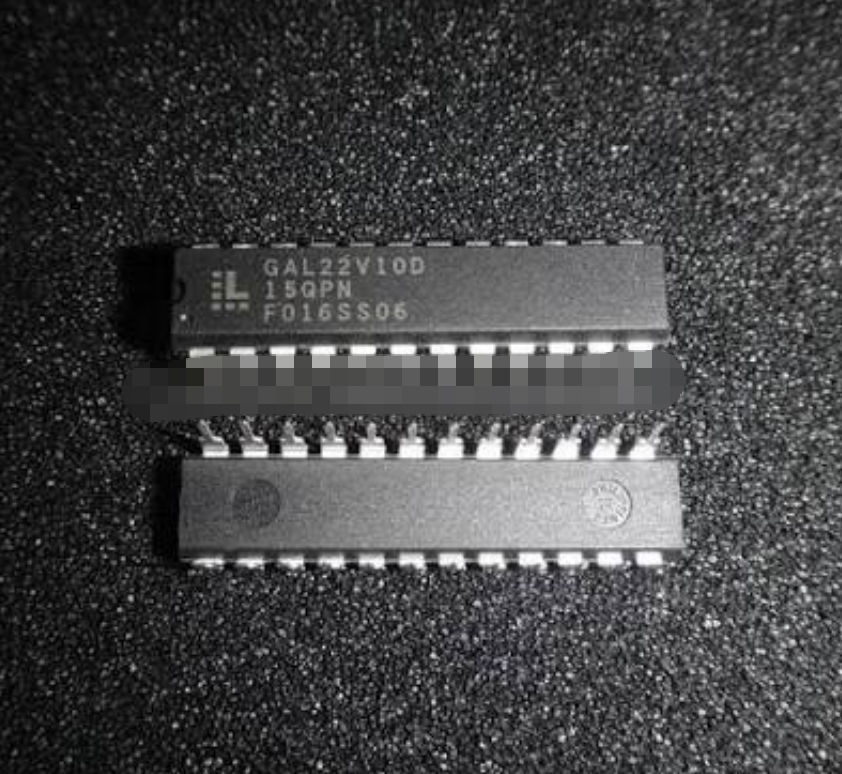

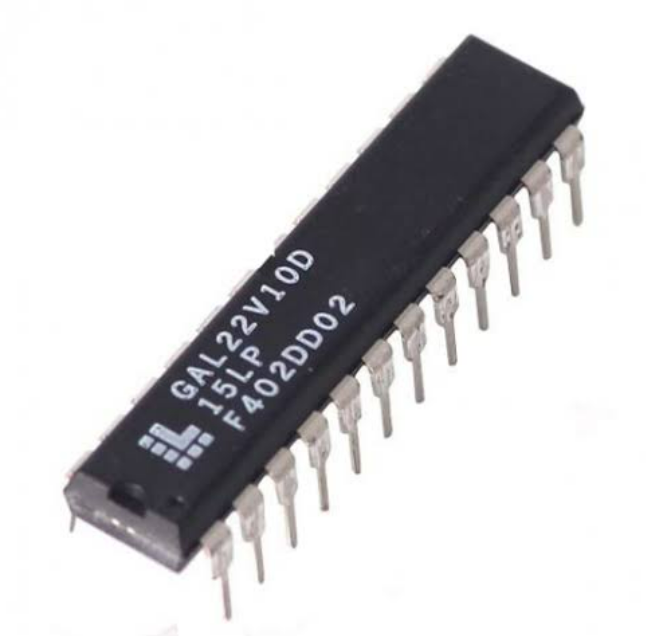

The GAL22V10D-10LJ is a classic Programmable Logic Device (PLD) from Lattice Semiconductor, widely deployed in automotive engine control units, industrial automation controllers, telecommunications infrastructure, medical instrumentation, and military avionics. Unlike a standard microcontroller, this chip contains a embedded logic array that implements custom firmware – typically in the form of binary logic equations rather than source code.

Its key features include 10 macrocells, 22 inputs, high-speed operation (10 ns propagation delay), and a protective security fuse that, when locked, prevents any readout of the internal data. Many legacy systems still rely on this PLD because of its reliability and low power consumption. However, when the original design file or heximal program is lost, the secured memory becomes an inaccessible archive that threatens the entire product’s maintainability.

Break IC GAL22V10D-10LJ Binary from its memory and rewrite the program into new PLD GAL22V10D:

HIGH PERFORMANCE E2CMOS® TECHNOLOGY

— 4 ns Maximum Propagation Delay

— Fmax = 250 MHz

— 3.5 ns Maximum from Clock Input to Data Output

— UltraMOS® Advanced CMOS Technology which has been fully developed in the process of Break IC GAL22V10D-10LJ Binary

The need to break into a locked GAL22V10D arises when equipment becomes obsolete and the original source code or binary file no longer exists. Without the ability to retrieve the internal firmware, a failed chip would scrap expensive machinery. To hack this PLD, one must first decapsulate the plastic package using chemical or laser techniques, then physically probe the embedded memory cells or exploit timing faults to decode the encrypted logic pattern. The goal is to clone or duplicate the exact program into a new device. The protective security fuse on the GAL22V10D is designed to block standard programmers from performing a readout. Thus, a direct attack is impossible without invasive methods. Our service specializes in this break process:

we decapsulate the chip, retrieve the binary data from the flash-equivalent cells, and produce a complete heximal file that mirrors the original firmware. This archive can then be cloned into fresh PLD units, restoring full functionality.

· ACTIVE PULL-UPS ON ALL PINS

· COMPATIBLE WITH STANDARD 22V10 DEVICES

— Fully Function/Fuse-Map/Parametric Compatible with Bipolar and UVCMOS 22V10 Devices

· 50% to 75% REDUCTION IN POWER VERSUS BIPOLAR

— 90mA Typical Icc on Low Power Device

— 45mA Typical Icc on Quarter Power Device

· E2 CELL TECHNOLOGY

— Reconfigurable Logic

— Reprogrammable Cells

— 100% Tested/100% Yields

— High Speed Electrical Erasure (<100ms)

— 20 Year Data Retention

· TEN OUTPUT LOGIC MACROCELLS

— Maximum Flexibility for Complex Logic Designs

 Our break procedure follows a disciplined workflow. First, we chemically decapsulate the protected GAL22V10D without damaging the silicon die. Next, using micro‑probing stations, we decode the locked logic configuration stored in the EEPROM‑like cells. The extracted binary is then verified against the original chip’s behavior. Finally, we deliver a heximal file that can be programmed into any compatible PLD – effectively allowing you to clone or duplicate the program for unlimited replacements. The benefits for our clients are substantial: you avoid costly system redesigns, extend the life of obsolete equipment, and regain control over your embedded firmware. Whether you need to retrieve a lost archive, clone a failing chip, or simply decode a secured logic pattern for reverse engineering, our service delivers a clean, reliable binary output.

· PRELOAD AND POWER-ON RESET OF REGISTERS

— 100% Functional Testability

· APPLICATIONS INCLUDE:

— DMA Control

— State Machine Control

— High Speed Graphics Processing

— Standard Logic Speed Upgrade

· ELECTRONIC SIGNATURE FOR IDENTIFICATION

The GAL22V10, at 4ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest performance available of any 22V10 device on the market.

CMOS circuitry allows the GAL22V10 to consume much less power when compared to bipolar 22V10 devices. E2 technology offers high speed (<100ms) erase times, providing the ability to reprogram or reconfigure the device quickly and efficiently which is critical for Break IC GAL22V10D-10LJ Binary.

The generic architecture provides maximum design flexibility by allowing the Output Logic Macrocell (OLMC) to be configured by the user. The GAL22V10 is fully function/fuse map/parametric compatible with standard bipolar and CMOS 22V10 devices.

Unique test circuitry and reprogrammable cells allow complete AC, DC, and functional testing during manufacture. As a result, Lattice Semiconductor delivers 100% field programmability and functionality of all GAL products. In addition, 100 erase/write cycles and data retention in excess of 20 years are specified.

We offer confidential, fast, and precise break services for the GAL22V10D-10LJ and many other PLD families. Every attack is performed with care to preserve the data integrity. Contact us with your locked chip, and we will decapsulate, decode, and retrieve the complete binary file – turning a protected memory into a usable archive for production.
