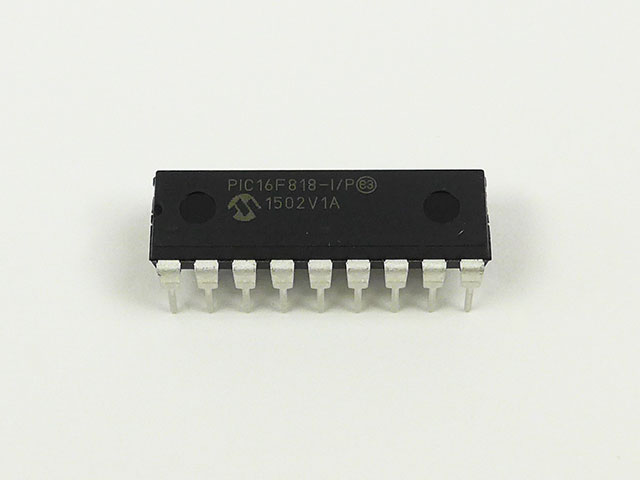

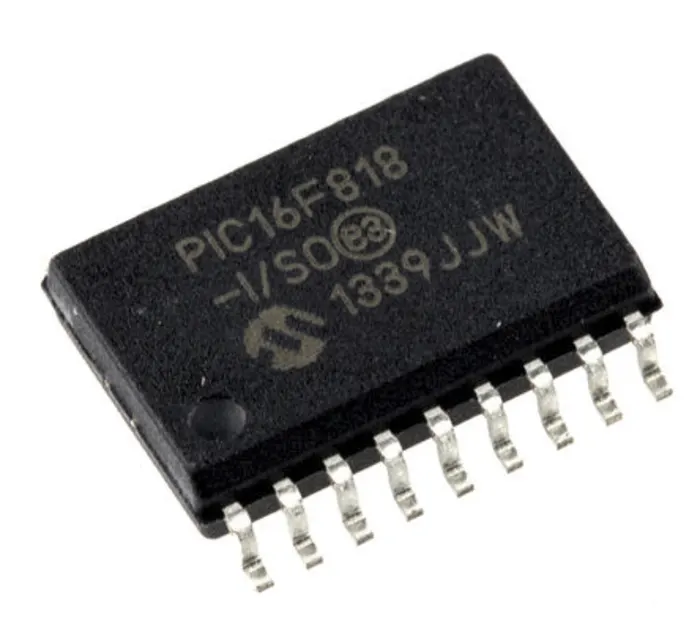

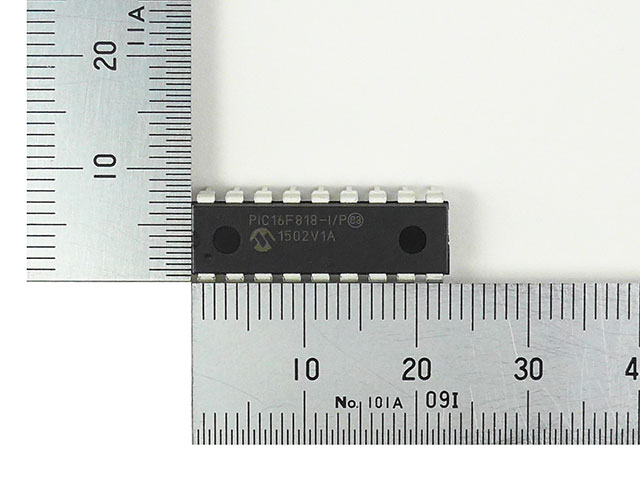

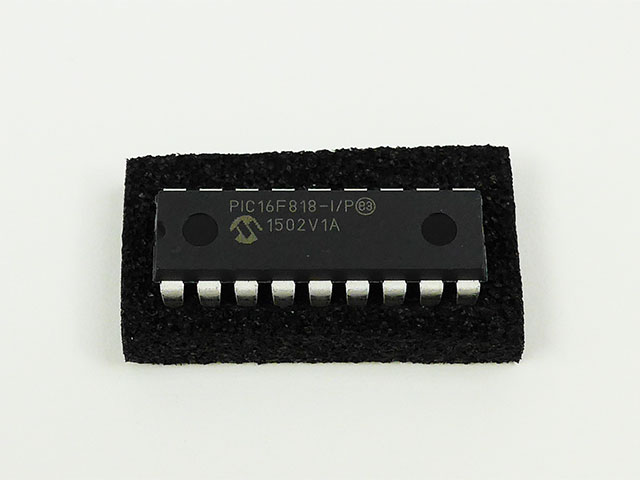

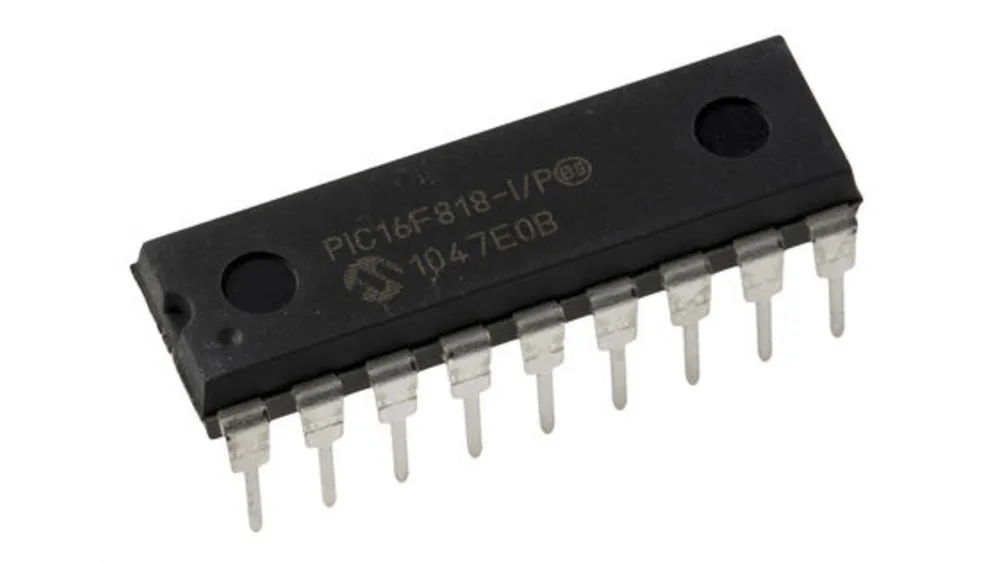

The PIC16F818 microcontroller represents a milestone in low-power, high-efficiency embedded computation, heavily relied upon by engineers designing modern commercial electronics. From portable biometric medical monitoring systems and smart home security networks to precision environmental telemetry arrays and automated industrial valve controllers, this versatile component provides robust operational dependability. A standout feature of this specific hardware configuration is its internal precision oscillator block, coupled with Microchip’s proprietary nanoWatt technology, which allows for extreme power optimization in remote field deployments. Because these microcontrollers are responsible for managing intricate timing sequences and capturing sensitive sensory data, the underlying code represents the intellectual crown jewel of the product. Consequently, original equipment manufacturers consistently enable rigid silicon-level defensive mechanisms to prevent unauthorized access to the operational core.

Power-Managed modes:

– Primary Run: XT, RC oscillator, 87 µA, 1 MHz, 2V

– INTRC: 7 µA, 31.25 kHz, 2V

– Sleep: 0.2 µA, 2V

· Timer1 oscillator: 1.8 µA, 32 kHz, 2V

· Watchdog Timer: 0.7 µA, 2V

· Wide operating voltage range:

– Industrial: 2.0V to 5.5V

Oscillators:



· Three Crystal modes:

– LP, XT, HS: up to 20 MHz

· Two External RC modes

· One External Clock mode:

– ECIO: up to 20 MHz

· Internal oscillator block:

– 8 user selectable frequencies: 31 kHz, 125 kHz,

250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz

Special Microcontroller Features:

· 100,000 erase/write cycles Enhanced Flash program memory typical

· 1,000,000 typical erase/write cycles EEPROM data memory typical

· EEPROM Data Retention: > 40 years

· In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

· Processor read/write access to program memory

· Low-Voltage Programming

· In-Circuit Debugging via two pins

Peripheral Features:

16 I/O pins with individual direction control

High sink/source current: 25 mA

Timer0: 8-bit timer/counter with 8-bit prescaler

Timer1: 16-bit timer/counter with prescaler, can be

incremented during Sleep via external crystal/clock

Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

Capture, Compare, PWM (CCP) module:

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10-bit

10-bit, 5-channel Analog-to-Digital converter

Synchronous Serial Port (SSP) with

SPI™ (Master/Slave) and I2C™ (Slave).

When a legacy industrial asset suffers a terminal electronics failure and the original development blueprints are completely lost, engineers face a major barrier if the chip is in a protected or locked state. Standard digital diagnostic interfaces are completely blind to an encrypted or heavily secured framework. To solve this, our specialized engineering team utilizes physical and silicon-level forensics to Recover MCU PIC16F818 Binary payloads directly from the hardware layer. The recovery process begins in our advanced laboratory, where we carefully decapsulate the external epoxy resin packaging using highly specialized micro-milling or acid etching techniques. Once the raw silicon die is exposed under a scanning electron microscope, our technicians can visually map out the layout of the embedded architecture. We systematically attack the configuration fuses and decode the physical transistor states within the flash and eeprom memory matrices. By using localized micro-probing, we can safely break through the protective lock bits, allowing us to hack past the hardware restrictions without corrupting the delicate internal storage structures holding the operational firmware.

Once the physical security gates are bypassed, our proprietary data-extraction pipelines allow us to safely retrieve the uncorrupted binary or heximal program file directly from the micro-architecture. This raw data stream is then processed into a complete, pristine software archive that mirrors the original operational logic. For organizations needing to execute emergency maintenance or replace obsolete hardware arrays, we can seamlessly clone or duplicate the extracted source code parameters onto fully compatible modern replacement components. Our laboratory ensures that the final compiled data file matches the timing constraints, instruction sets, and flag definitions of the original system flawlessly. By turning a previously unreadable, secured piece of silicon into an open, documented digital program, we bypass months of expensive, speculative reverse-engineering and software redevelopment, ensuring that your legacy infrastructure remains entirely operational.

Strategic Operational Value for the End-User

The ultimate benefit for the end user is total operational self-reliance and the elimination of catastrophic downtime in critical production environments. Instead of discarding an entire multi-million dollar automated assembly line or medical diagnostic suite due to a single unresponsive, obsolete circuit board, companies gain an exact, actionable path forward. Our professional hardware recovery service transforms a destructive system bottleneck into a predictable, non-destructive maintenance blueprint. This provides long-term peace of mind, shielding your capital investments from the sudden whims of component manufacturing lifecycles and guaranteeing complete control over your facility’s legacy technological ecosystem.
