The PIC16C62B has been a dependable microcontroller in countless embedded applications for many years. Its compact architecture, stable operating characteristics, and low power consumption have made it a popular choice for industrial automation equipment, security controllers, consumer electronics, environmental monitoring devices, medical instruments, communication interfaces, and automotive accessories. Within these products, the microcontroller stores critical firmware, application program logic, operational data, and configuration parameters inside internal eeprom and other memory resources. As equipment remains in service long after development has ended, manufacturers frequently discover that the original source code, binary, heximal, engineering file, or project archive has disappeared. At the same time, the device itself is often configured with protected, locked, secured, or encrypted settings to safeguard valuable intellectual property throughout the product lifecycle.

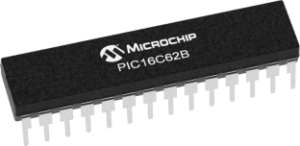

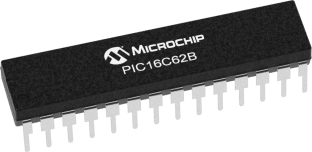

We can recover Chip PIC16C62B Eeprom, please view the Chip PIC16C62B features for your reference:

Microcontroller Core Features:

· High-performance RISC CPU

· Only 35 single word instructions to learn

· All single cycle instructions except for program branches, which are two cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· 2K x 14 words of Program Memory, 128 x 8 bytes of Data Memory (RAM)

· Interrupt capability

· Eight level deep hardware stack

· Direct, indirect, and relative addressing modes

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Brown-out detection circuitry for Brown-out Reset (BOR)

· Programmable code-protection

· Power saving SLEEP mode

· Selectable oscillator options

· Low-power, high-speed CMOS EPROM technology

· Fully static design

· In-Circuit Serial Programming™ (ICSP)

· Wide operating voltage range: 2.5V to 5.5V

· High Sink/Source Current 25/25 mA

· Commercial, Industrial and Extended temperature ranges

· Low-power consumption:

– < 2 mA @ 5V, 4 MHz

– 22.5 µA typical @ 3V, 32 kHz

– < 1 µA typical standby current

Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler, can be incremented during sleep via external crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Capture, Compare, PWM module

· Capture is 16-bit, max. resolution is 12.5 ns,

Compare is 16-bit, max. resolution is 200 ns, PWM maximum resolution is 10-bit

· 8-bit multi-channel Analog-to-Digital converter

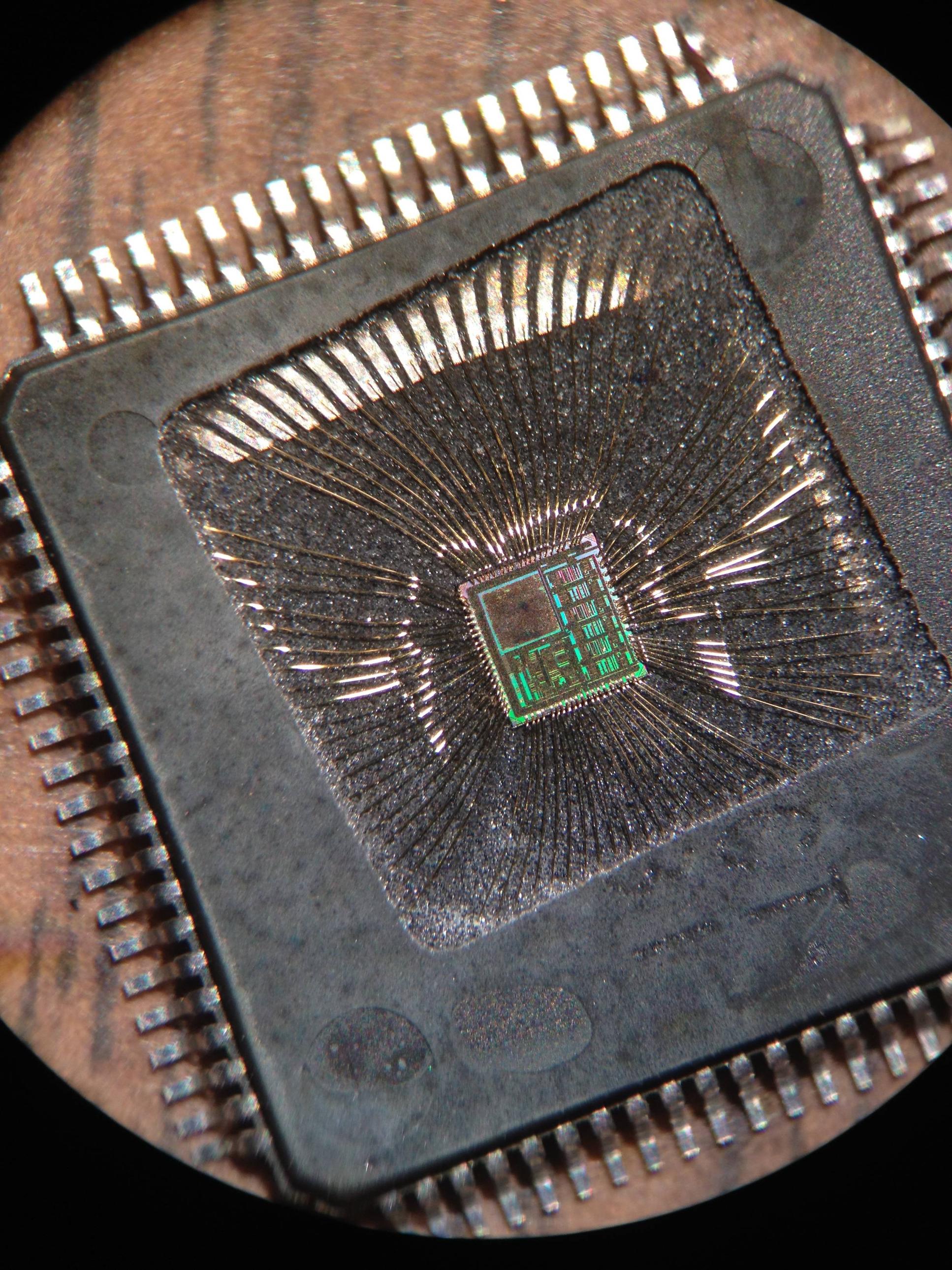

Our “Recover Chip PIC16C62B eeprom” service is designed to help equipment owners and authorized manufacturers regain access to these important engineering assets. Using advanced laboratory analysis and structured recovery techniques, our specialists can retrieve valuable firmware, organize historical data, and reconstruct available binary and heximal information from internal memory. Depending on the condition of the device and project requirements, controlled semiconductor examination, including carefully managed decapsulate procedures where appropriate, may assist the recovery process. Sophisticated decode methods help interpret recovered program structures and organize them into meaningful file and archive formats for engineering evaluation. When customers need to preserve existing products or maintain production continuity, recovered information can support compatible clone verification, controlled duplicate manufacturing, documentation rebuilding, and long-term maintenance planning. Projects involving highly protected or encrypted devices are evaluated individually to determine the most appropriate recovery methodology while respecting ownership and authorization requirements.

The recovery workflow combines extensive hardware knowledge with advanced firmware analysis. Engineers first evaluate the condition of the microcontroller and its internal memory organization before collecting available data from the device. Recovered binary images are validated and processed to reconstruct meaningful firmware, application program behavior, and historical source code references whenever feasible. Throughout the process, specialized analytical tools are used to decode storage structures and verify the consistency of recovered archive contents. Where legally authorized, advanced laboratory techniques may assist in understanding inaccessible memory regions that have been configured with locked, secured, or protective settings. Rather than simply attempting to attack, break, or hack a device, the objective is to preserve valuable engineering information and transform fragmented electronic assets into reliable technical documentation that supports future product development.

For manufacturers, maintenance providers, and engineering organizations, recovering PIC16C62B eeprom contents delivers significant long-term value. Access to historical firmware, organized data archives, reconstructed source code, and validated program information can reduce redevelopment costs, extend product life, improve repair capability, and preserve compatibility across multiple hardware generations. Instead of redesigning proven systems from the beginning, organizations can utilize recovered engineering resources to maintain legacy equipment and support future modernization projects. With extensive experience in embedded firmware analysis and memory recovery, our service provides a dependable solution for preserving valuable electronic knowledge and ensuring that important technologies remain available for years to come.
