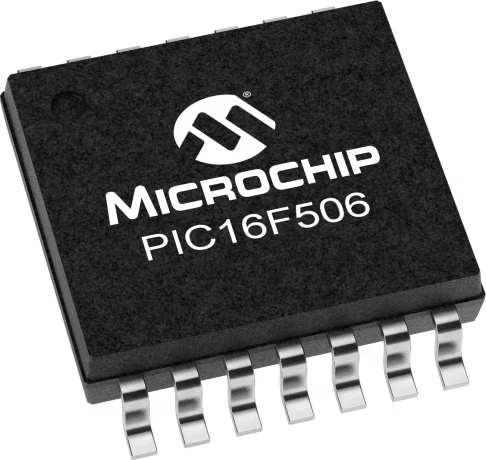

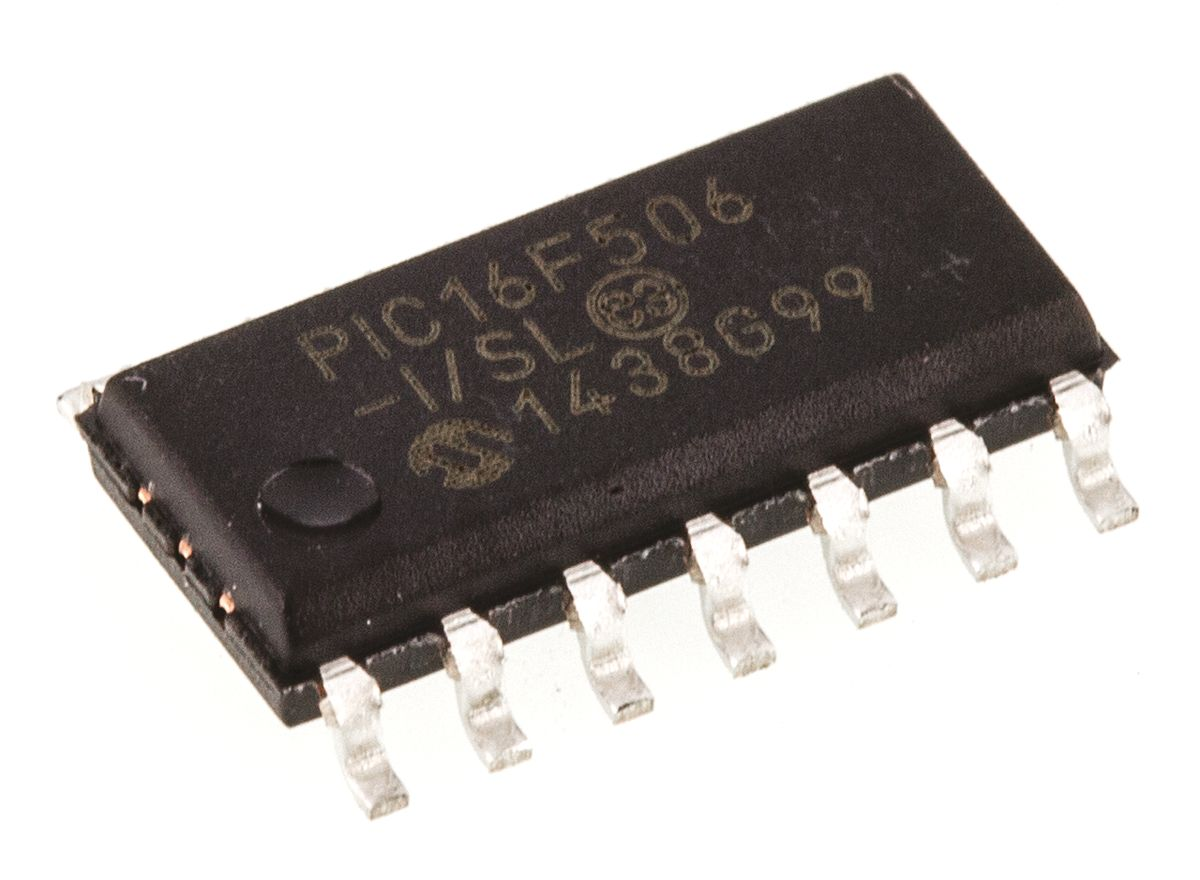

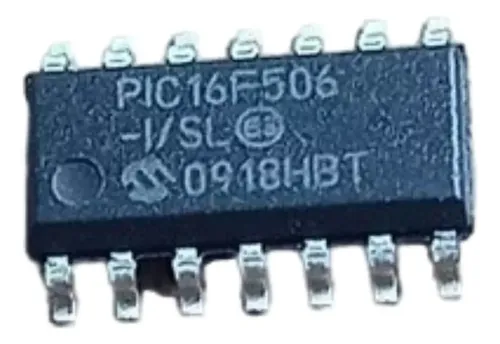

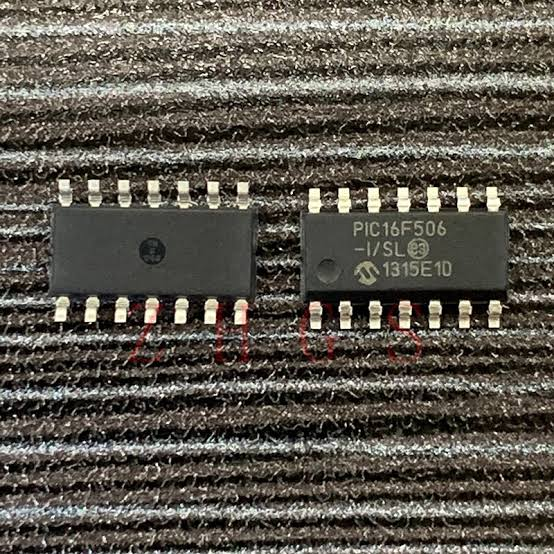

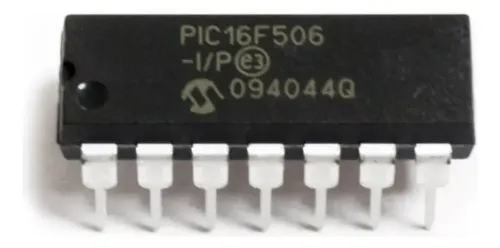

The PIC16F506 is a remarkably compact and efficient 14-pin MCU that has found its way into countless specialized applications since its inception. Known for its cost-effective Flash-based CMOS technology, this microcontroller is widely utilized in sectors ranging from basic consumer electronics and toy manufacturing to more sophisticated automotive climate controls and industrial timing relays. Its unique features, such as an internal 4MHz oscillator and a diverse set of I/O pins within a small footprint, make it an ideal candidate for embedded systems where space and power efficiency are paramount. However, most of these units are deployed with protective security bits enabled, creating a locked environment that safeguards the internal logic. For many organizations, the inability to access this secured program during a hardware failure or after losing the original development archive can lead to a complete operational standstill.

Our high-precision technical service offers a professional methodology to attack these hardware-level barriers and retrieve the critical binary data stored within the silicon. To successfully break the security of a protected MCU, our laboratory utilizes a specialized process to decapsulate the chip, exposing the internal memory structure for direct analysis. This allows our engineers to decode the heximal file directly from the flash or eeprom segments, effectively bypassing the encrypted or secured status of the device. Whether the objective is to clone a legacy controller to ensure production line continuity or to duplicate the firmware from a locked unit for essential maintenance, our service provides the most reliable way to hack the physical limitations of the chip. By transforming a protected binary back into a usable source code resource, we ensure that your embedded intelligence is never truly lost.

We can attack PIC MCU 16F506 Code, please view the PIC MCU features for your reference:

High-Performance RISC CPU:

· Only 33 single-word instructions to learn

· All single-cycle instructions except for program branches, which are two-cycle

· 12-bit wide instructions

· 2-level deep hardware stack

· Direct, Indirect and Relative Addressing modes for data and instructions

· 8-bit wide data path

· 10 Special Function Hardware registers (PIC12F510)

· 13 Special Function Hardware registers (PIC16F506)

· Operating speed:

– DC – 8 MHz Crystal Oscillator (PIC12F510)

– DC – 500 ns instruction cycle (PIC12F510)

– DC – 20 MHz Crystal Oscillator (PIC16F506)

– DC – 200 ns instruction cycle (PIC16F506)

Special Microcontroller Features:

· 4 or 8 MHz selectable precision internal oscillator:

– Factory calibrated to ±1% when attack PIC MCU

· In-Circuit Serial Programming™ (ICSP™)

· In-Circuit Debugging (ICD) support

· Power-on Reset (POR)

· Device Reset Timer (DRT):

– Short DRT (1.125 ms, typical) for INTOSC, EXTRC and EC

– DRT (18 ms, typical) for HS, XT and LP

· Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation

· Programmable code protection

· Multiplexed MCLR input pin if attack PIC MCU

· Selectable internal weak pull-ups on I/O pins

· Power-Saving Sleep mode

· Wake-up from Sleep on pin change

· Wake-up from Sleep on comparator change

Selectable oscillator options:

– INTOSC: 4/8 MHz precision Internal oscillator

– EXTRC: External low-cost RC oscillator

– XT: Standard crystal/resonator

– LP: Power-saving, low-frequency crystal

– HS: High-speed crystal/resonator (PIC16F506 only)

– EC: High-speed external clock input (PIC16F506 only)

· Analog-to-Digital (A/D) Converter:

– 8-bit resolution

– 4-input channels (1 channel is dedicated to conversion of the internal 0.6V absolute voltage reference)

· High current sink/source for direct LED drive

· 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler

Low-Power Features/CMOS Technology:

· Operating Current:

– < 170 ìA @ 2V, 4 MHz

· Standby Current:

– 100 nA @ 2V, typical

· Low-power, high-speed Flash technology:

– 100,000 cycle Flash endurance

– > 40-year retention

· Fully static design

· Wide operating voltage range: 2.0V to 5.5V

· Wide temperature range:

– Industrial: -40°C to +85°C

– Extended: -40°C to +125°C e:AR-SA’>programmable prescaler

The fundamental purpose of performing a targeted attack to break the security of a PIC16F506 is to protect the long-term viability of proprietary technology in an era of rapid obsolescence. For end users, the ability to retrieve a heximal archive from a locked MCU is often the only way to clone or duplicate vital system components when a supplier no longer exists. By choosing to decode or hack the secured architecture of an existing chip, you can successfully migrate your program data to new hardware without the massive expense of a ground-up redesign. Our expertise ensures that you can duplicate the flash and eeprom contents of any embedded controller, ensuring that your protected logic remains an accessible asset for your organization. This technical bridge allows for the seamless recovery of a binary file that would otherwise be permanently trapped within a secured silicon housing.

Ultimately, our recovery service provides the end user with an unparalleled level of hardware independence and peace of mind. Instead of struggling with the impossible task of recreating lost source code, you can simply retrieve the heximal program and clone the locked data directly onto a fresh MCU. We specialize in the precision required to decapsulate and attack these high-security chips, ensuring that every binary file is handled with surgical accuracy and total integrity. By providing a reliable way to decode and duplicate the firmware of a secured PIC16F506, we turn a protected archive into a living, functional part of your current technological ecosystem. Our commitment is to ensure that your data, memory, and program files remain within your control, regardless of the protective measures originally placed upon the embedded silicon.
