The R5F21244SDFP is a 16-bit microcontroller from Renesas Electronics’ R8C/24 group, built around the R8C CPU core for compact embedded control applications. It operates at up to 20 MHz and provides 16 KB of Flash program memory, 1 KB of RAM, a 10-bit analog-to-digital converter with 12 channels, multiple timers, and a range of serial communication interfaces. The device also supports voltage-monitoring functions and watchdog protection, making it suitable for electronic control boards, industrial monitoring equipment, instrumentation, communication interfaces, and selected automotive or factory-automation networking applications.

Its 52-pin LQFP package provides a practical combination of processing resources and peripheral connectivity for established electronic designs. Although this Renesas MCU is not recommended for new designs, it remains relevant to organizations maintaining existing equipment that depends on its original firmware.

1. The measurement condition is Topr = -20 to 85°C (N version) / -40 to 85°C (D version), unless otherwise specified.
2. 2.      This condition (external power VCC rise gradient) does not apply if VCC ³ 1.0 V.

When a legacy electronic product needs repair or reproduction, the absence of its original software project can make the task considerably more difficult. The programmed R5F21244SDFP may contain important control routines, communication logic, calibration values, and application-specific instructions that are no longer available in the original development archive. A protective, secured, or locked microcontroller can restrict access to its internal Flash memory, preventing routine programming equipment from reading the original program.

For authorized equipment owners, manufacturers, and repair engineers, assessing firmware recovery options can support troubleshooting, replacement-controller development, discontinued-product maintenance, and preservation of established electronic systems. Recovering accessible binary information may also provide a useful reference for understanding the original controller’s behavior, although the available results depend on the device’s security configuration and physical condition.

1. When using the voltage monitor 0 digital filter, ensure that the voltage is within the MCU operation voltage range (2.2 V or above) during the sampling time.
2. The sampling clock can be selected. Refer to 6. Voltage Detection Circuit of Hardware Manual for details.

Vdet0 indicates the voltage detection level of the voltage detection 0 circuit. Refer to 6. Voltage Detection Circuit of Hardware Manual for details

1. VCC = 2.2 to 5.5 V, Topr = -20 to 85°C (N version) / -40 to 85°C (D version), unless otherwise specified.
2. 2.      Standard values when the FRA1 register value after reset is assumed.
3. 3.      Standard values when the corrected value of the FRA6 register has been written to the FRA1 register.

This enables the setting errors of bit rates such as 9600 bps and 38400 bps to be 0% when the serial interface is used in UART mode.

For an R5F21244SDFP protection-analysis project, specialists can begin by identifying the exact device variant, examining the circuit board, checking supported programming interfaces, and reviewing the memory and security configuration. Depending on the device condition, the investigation may determine whether firmware, source code, data, software, memory, archive, flash, or eeprom information can be retrieved, decoded, duplicated, or cloned for authorized engineering purposes. If a protective, secured, encrypted, or locked configuration limits standard access, engineers can assess supported recovery procedures and determine whether the applicable protection barrier can be addressed without unnecessarily damaging the original chip.

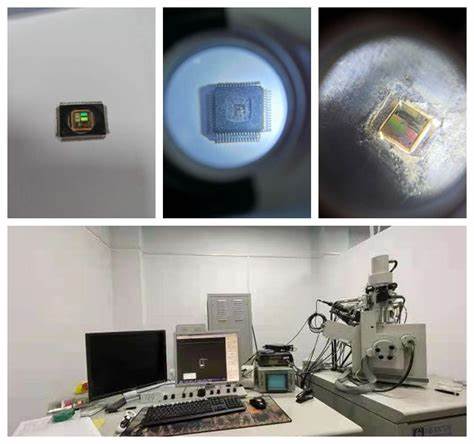

Advanced semiconductor analysis, including controlled decapsulation, may be considered when technically justified. These evaluations apply to the microcontroller, microprocessor, MCU, chip, or IC and must account for the actual security implementation rather than assume that every device can be unlocked. The feasibility of recovering usable code from each R5F21244SDFP depends on its configuration, physical state, and accessible interfaces; complete firmware extraction is not guaranteed.

Our Renesas R5F21244SDFP firmware recovery and microcontroller protection analysis service supports authorized equipment owners, manufacturers, repair providers, and engineering teams working with legacy electronic products. We can examine the target board, verify the installed MCU, investigate available programming interfaces, and evaluate the feasibility of recovering accessible program information.

Where technically possible, recovered binary data or other available memory contents can assist with equipment repair, controller replacement, product restoration, and further engineering analysis. This service is particularly useful when the original source code and development archive have been lost, but the existing microcontroller remains an important source of operational information. Through a device-specific assessment and a carefully selected recovery strategy, we help customers preserve valuable embedded software and extend the useful life of established electronic equipment.
