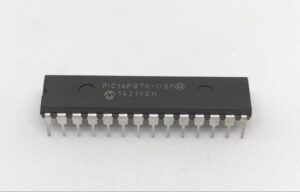

PostHeaderIcon Copy Chip PIC16F870 Program

Copy Chip PIC16F870 Program and data out from microcontroller PIC16F870 flash memory and eeprom memory, reset the status of MCU PIC16F870 from locked to unlocked one after disable its security fuse bit by MCU crack technique

Copy Chip PIC16F870 Program and data out from microcontroller PIC16F870 flash memory and eeprom memory, reset the status of MCU PIC16F870 from locked to unlocked one after disable its security fuse bit by MCU crack technique

Copy Chip PIC16F870 Program and data out from microcontroller PIC16F870 flash memory and eeprom memory, reset the status of MCU PIC16F870 from locked to unlocked one after disable its security fuse bit by MCU crack technique;

Microcontroller Core Features:

· High performance RISC CPU

· Only 35 single word instructions to learn

· All single cycle instructions except for program branches which are two-cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· 2K x 14 words of FLASH Program Memory

128 x 8 bytes of Data Memory (RAM) 64 x 8 bytes of EEPROM Data Memory

· Pinout compatible to the PIC16CXXX 28 and 40-pin devices

· Interrupt capability (up to 11 sources)

· Eight level deep hardware stack



· Direct, Indirect and Relative Addressing modes;

· Power-on Reset (POR)

· Power-up Timer (PWRT) and



Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation when MCU STM32F107RCT6 code recovery

· Programmable code protection

· Power saving SLEEP mode

· Selectable oscillator options

· Low power, high speed CMOS FLASH/EEPROM technology

· Fully static design

· In-Circuit Serial Programmingä (ICSPä) via two pins

· Single 5V In-Circuit Serial Programming capability

· In-Circuit Debugging via two pins

· Processor read/write access to program memory

· Wide operating voltage range: 2.0V to 5.5V

· High Sink/Source Current: 25 mA

· Commercial and Industrial temperature ranges

· Low power consumption:

– < 1.6 mA typical @ 5V, 4 MHz

– 20 mA typical @ 3V, 32 kHz

– < 1 mA typical standby current



Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· One Capture, Compare, PWM module

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10-bit

· 10-bit multi-channel Analog-to-Digital converter only

· Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI) with 9-bit address detection

· Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)

· Brown-out detection circuitry for Brown-out Reset (BOR)
