The PIC16F882 microcontroller stands out as an exceptionally versatile workhorse across a spectrum of modern industries, frequently serving as the core computational engine in advanced medical monitoring devices, HVAC environmental controllers, industrial motor drives, and complex security alarm panels. Celebrated for its unique architectural features—including an ultra-low-power wake-up mode, a highly precise internal oscillator, up to 11 channels of 10-bit Analog-to-Digital conversion, and an independent In-Circuit Serial Programming infrastructure—this chip excels at executing time-sensitive routines in demanding hardware environments.

However, when a legacy device requires urgent maintenance or updates, manufacturers are frequently blindsided to discover that the original development files, source code, or system documentation have been lost or corrupted over time. When production lines face grinding halts due to component shortages, recovering the core operational instructions becomes a critical business imperative. Our specialized laboratory offers high-end extraction services precisely tailored to reverse engineering microcontroller PIC16F882 heximal parameters, providing an elite lifeline that restores full access to your mission-critical system logic.

High-Performance RISC CPU:

· Only 35 Instructions to Learn:

– All single-cycle instructions except branches

· Operating Speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt Capability

· 8-Level Deep Hardware Stack

· Direct, Indirect and Relative Addressing modes

Special Microcontroller Features:

· Precision Internal Oscillator:

– Factory calibrated to ±1%

– Software selectable frequency range of 8 MHz to 31 kHz

– Software tunable

– Two-Speed Start-up mode

– Crystal fail detect for critical applications

– Clock mode switching during operation for power savings

· Power-Saving Sleep mode

· Wide Operating Voltage Range (2.0V-5.5V)

· Industrial and Extended Temperature Range

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Brown-out Reset (BOR) with Software Control Option

· Enhanced Low-Current Watchdog Timer (WDT) with On-Chip Oscillator (software selectable nominal 268 seconds with full prescaler).

· Multiplexed Master Clear with Pull-up/Input Pin

· Programmable Code Protection

· High Endurance Flash/EEPROM Cell:

– 100,000 write Flash endurance

– 1,000,000 write EEPROM endurance

– Flash/Data EEPROM retention: > 40 years

· Program Memory Read/Write during run time

· In-Circuit Debugger (on board)

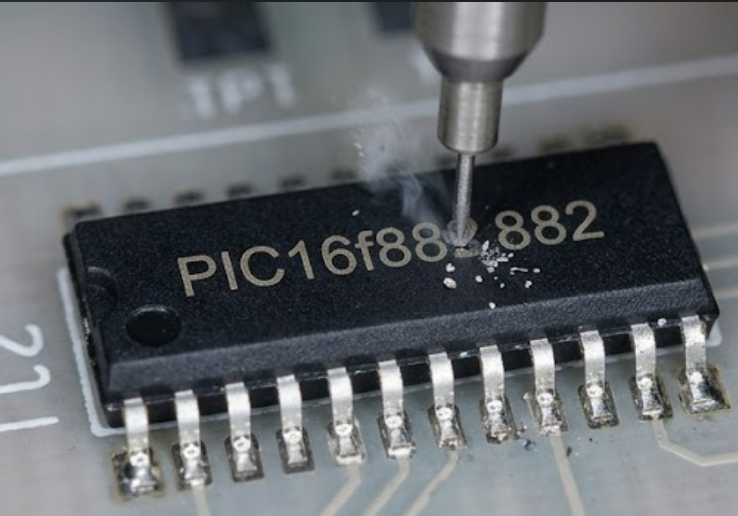

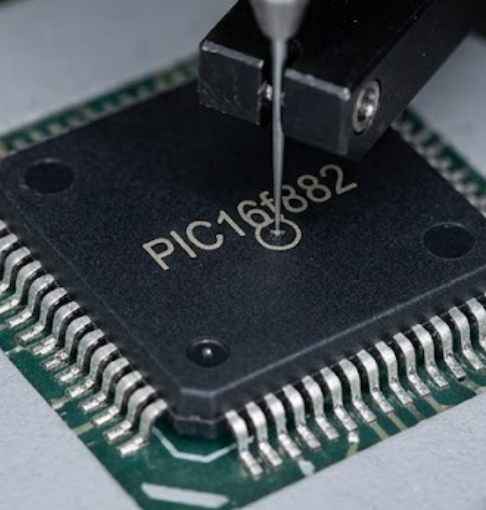

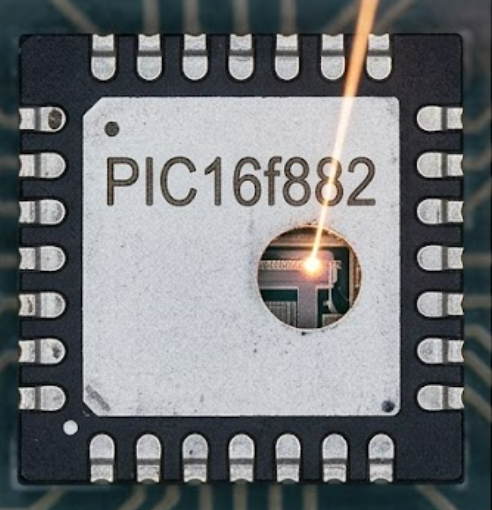

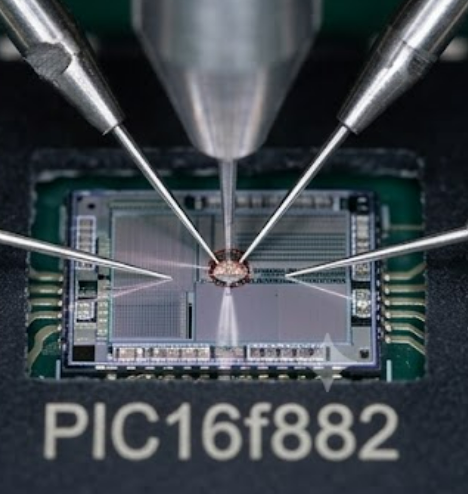

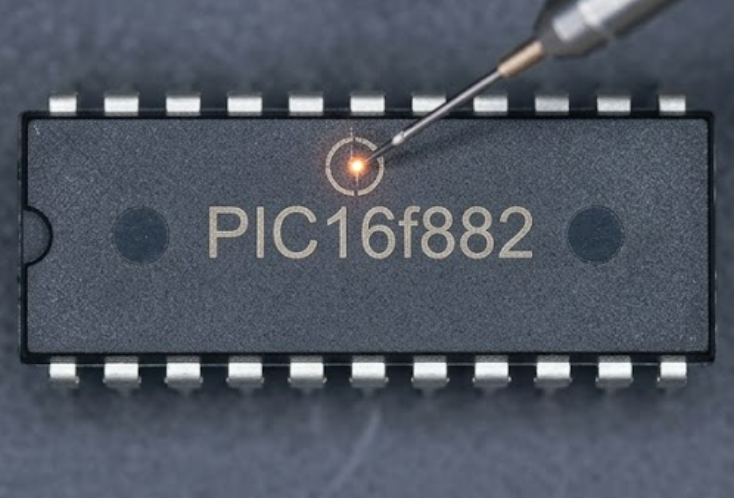

To systematically attack, break, and decode the advanced internal security layers of a secured, locked integrated circuit, our engineering facility deploys highly specialized micro-electronics laboratory equipment. The extraction process begins with precision chemical engineering, where our technicians decapsulate the external plastic mold of the chip to expose the raw, intricate silicon architecture resting beneath the surface. Once the internal circuitry is completely visible under high-magnification microscopy, we can carefully bypass the internal protective code fuses and security bits that natively restrict external reading. By applying targeted micro-probing techniques or precise optical adjustments directly to the layout configuration, our team can safely read out the tightly guarded internal memory arrays without causing structural degradation to the hardware. This targeted intervention allows us to seamlessly retrieve the entire embedded firmware stack, translating hidden physical states into a pristine binary data stream. The definitive output of this delicate procedure is a flawless, uncorrupted heximal file that mirrors the exact operational parameters of your original application.

The ultimate purpose of choosing to hack or duplicate a highly protected microcontroller is to insulate an enterprise from severe supply chain vulnerabilities and prevent the exorbitant costs of a ground-up hardware redesign. When access to an active system archive is completely severed, engineers can utilize our specialized extraction services to salvage vital machine instructions from older flash sectors, peripheral PLD arrays, or internal eeprom memory blocks. Once our laboratory successfully extracts the raw data, engineering teams gain the immediate capability to clone the entire logic structure onto readily available, modern alternative silicon. This comprehensive recovery ensures you can easily duplicate the exact operational profiles of legacy components, compile an entirely fresh software backup, and confidently manufacture drop-in replacements that protect your active product lines from experiencing unplanned downtime or operational obsolescence.

Partnering with an elite engineering team to unlock and extract embedded software provides transformative technical and financial advantages for system integrators, maintenance engineers, and product developers alike. Instead of exhausting thousands of dollars and months of valuable engineering time attempting to manually reverse-engineer and rewrite complex code from scratch—a high-risk strategy that notoriously introduces hidden software bugs—our advanced laboratory delivers a direct path to a fully verified, operational program file. This absolute operational consistency guarantees that every newly generated duplicate board performs identically to the field-proven units your clients rely on daily. By utilizing our custom extraction services, your business effectively eliminates the existential risks of parts obsolescence, safeguards vital corporate intellectual property, and establishes a completely secure, predictable roadmap for your industrial hardware investments for many years to come.
