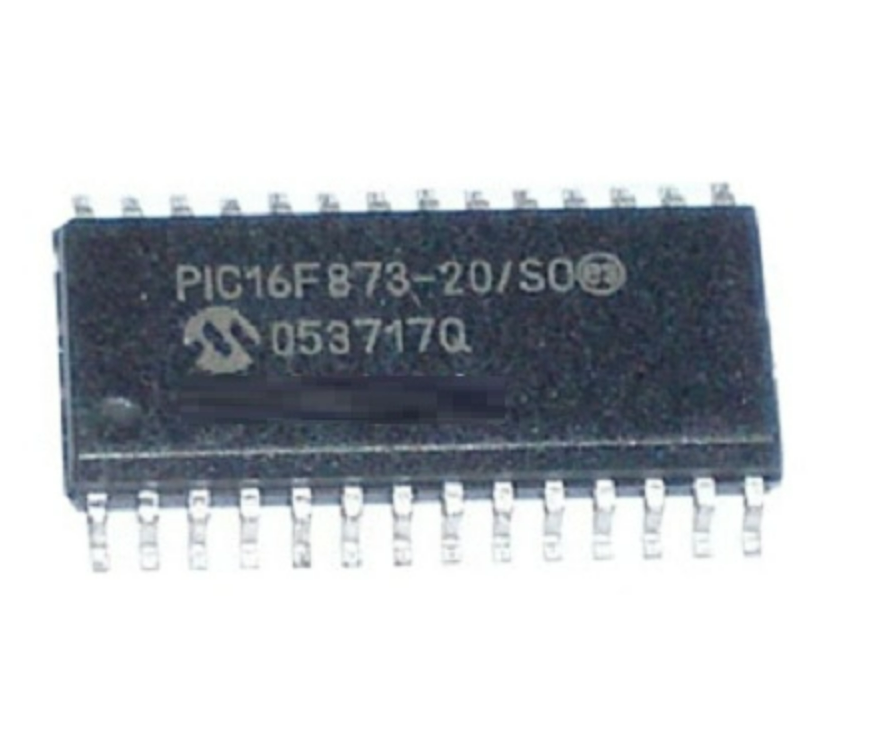

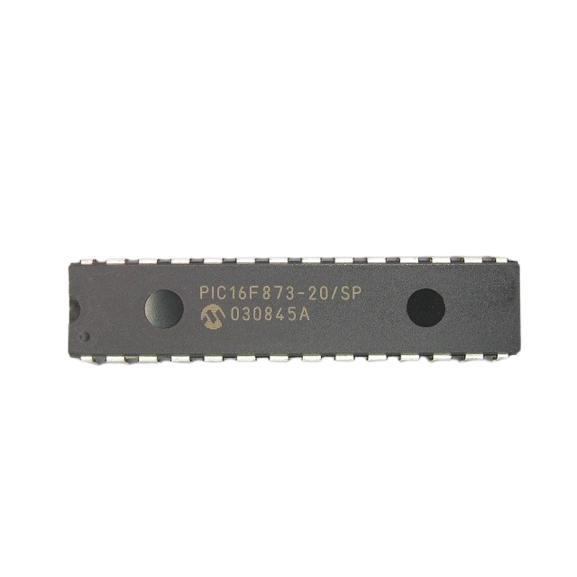

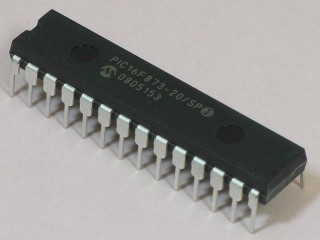

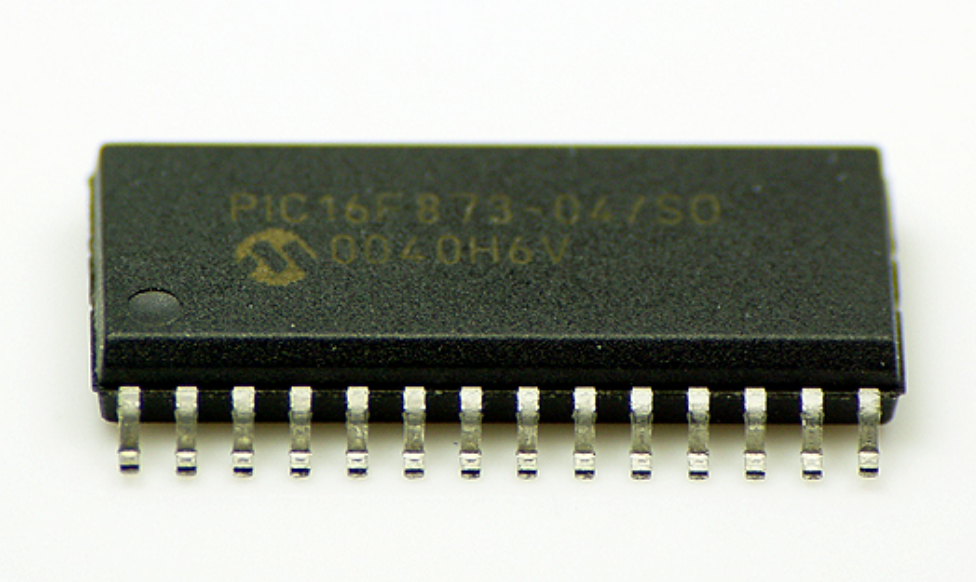

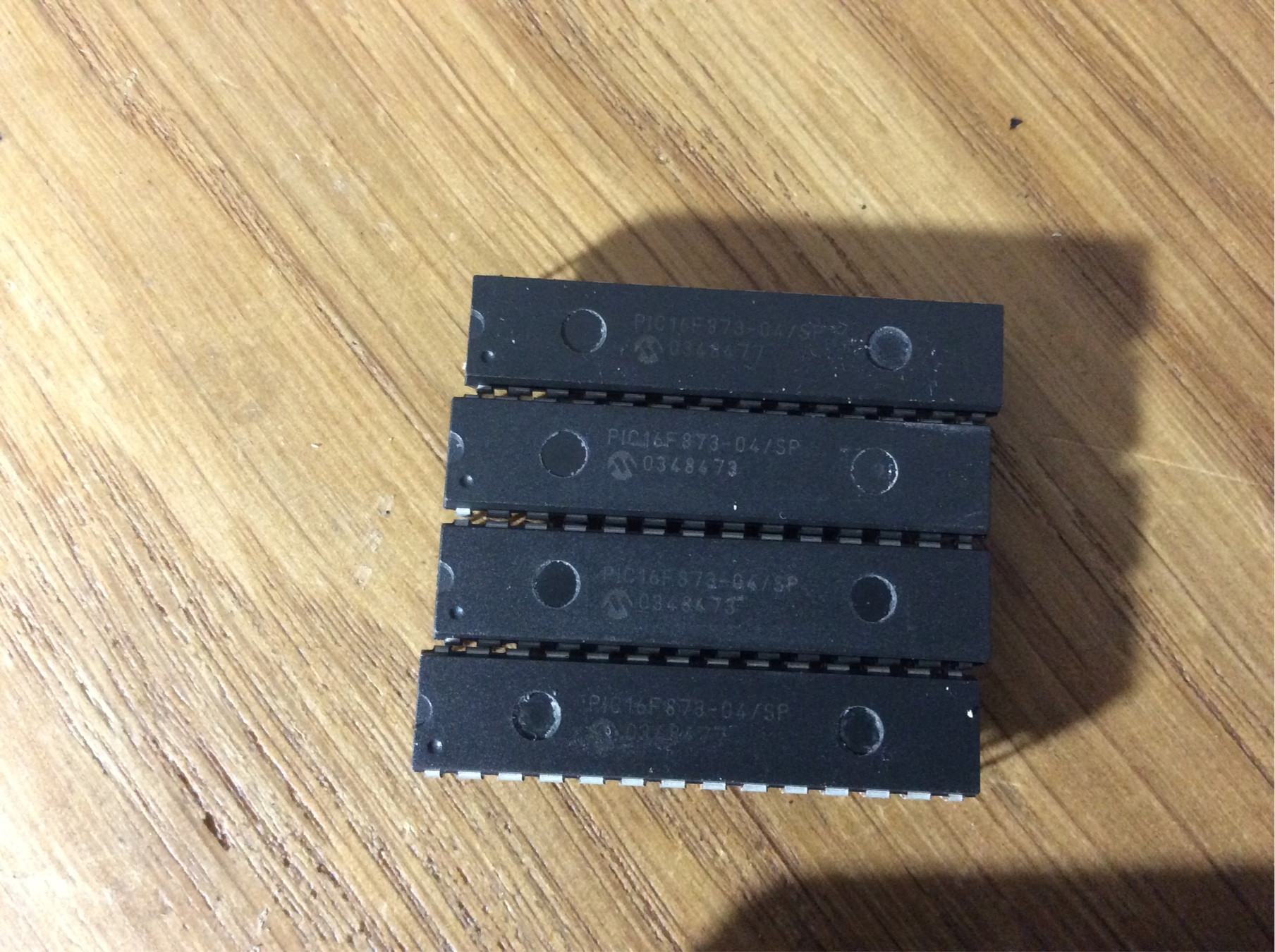

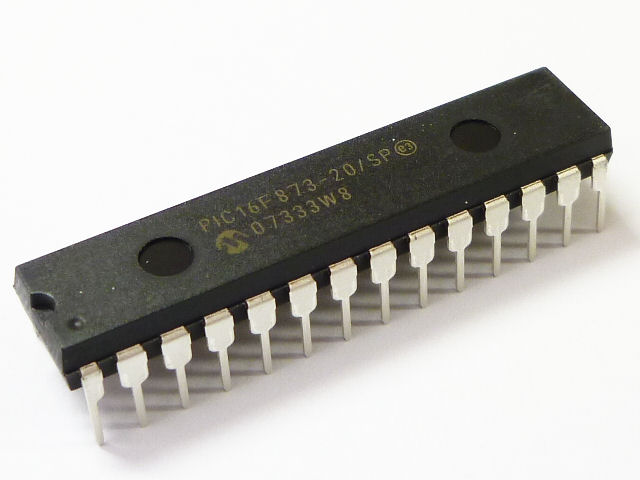

The PIC16F873 microcontroller occupies a venerable position within mid-range industrial engineering, frequently serving as the fundamental processing unit for automated manufacturing machinery, environmental monitoring instrumentation, commercial security systems, and precision motor speed controllers. Its enduring popularity stems from a robust 28-pin architecture that balances computational efficiency with peripheral versatility. Key unique features include a multi-channel 10-bit analog-to-digital converter, an addressable universal synchronous asynchronous receiver transmitter (USART), and a flexible synchronous serial port capable of handling inter-integrated circuit communication. These modules allow the controller to collect complex sensor feedback and execute precision real-time algorithms flawlessly. In commercial deployments, keeping this operational instruction set impervious to external disruptions is paramount, leading engineering teams to activate strict chip-level boundaries that render the device a black box once it leaves the factory floor.

· High performance RISC CPU

· Only 35 single word instructions to learn

· All single cycle instructions except for program branches which are two cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· Up to 8K x 14 words of FLASH Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM)

Up to 256 x 8 bytes of EEPROM Data Memory

· Pinout compatible to the PIC16C73B/74B/76/77

· Interrupt capability (up to 14 sources)

· Eight level deep hardware stack

· Direct, indirect and relative addressing modes

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Programmable code protection

· Power saving SLEEP mode

· Selectable oscillator options

· Low power, high speed CMOS FLASH/EEPROM technology

· Fully static design

· In-Circuit Serial Programming (ICSP) via two pins

· Single 5V In-Circuit Serial Programming capability

· In-Circuit Debugging via two pins

· Processor read/write access to program memory

· Wide operating voltage range: 2.0V to 5.5V

· High Sink/Source Current: 25 mA

· Commercial, Industrial and Extended temperature ranges

· Low-power consumption:

– < 0.6 mA typical @ 3V, 4 MHz

– 20 µA typical @ 3V, 32 kHz

– < 1 µA typical standby current

When custom production hardware breaks down and original documentation is completely lost, our specialized laboratory steps in to Recover MCU PIC16F873 Archive structures through advanced silicon diagnostics. Standard diagnostic software cannot interact with a chip operating under protected, locked, secured, or encrypted restrictions. To navigate this, our microscopic inspection team must physically decapsulate the specialized semiconductor housing, carefully stripping away the external protective epoxy to lay bare the internal silicon micro-architecture. Once the physical logic gates are visible, our technicians utilize micro-probing instruments to decode the configuration registers. By safely bypassing these embedded boundaries, we can attack the chip’s internal security fuses and break the read-protection mechanisms without causing damage to the delicate underlying structures. This intensive laboratory process makes it possible to safely hack through the hardware restrictions to directly read out the raw information contained within the internal flash execution blocks and non-volatile eeprom storage arrays.

Once the silicon-level defense mechanisms are safely compromised, our automated data-mining systems work to cleanly retrieve the uncorrupted binary payload directly from the core memory layout. This extracted data stream is converted into a flawless heximal program file, preserving every operational bit and timing constraint of the original controller. This pristine software archive serves as the definitive blueprint for organizations requiring an exact technological replication. Using this extracted source code, engineering teams can easily clone or duplicate the complete operational behavior of the legacy asset onto fresh replacement silicon. Our laboratory ensures that the recovered firmware matches the exact instruction set, peripheral mapping, and flag configurations of the original device, allowing you to generate an exact operational replica of an otherwise unproducible, protective integrated circuit.

The core advantage of utilizing our non-destructive recovery engineering service is the preservation of massive historical investments in hardware configuration and logic design. When an indispensable piece of manufacturing infrastructure, medical diagnostic equipment, or maritime control array goes dark due to a single failed microcontroller, the financial toll of unplanned downtime can be staggering. Redesigning and rewriting complex software ecosystems from the ground up can consume months of developer hours and introduce unpredictable compliance or timing bugs. Our precision laboratory workflow bypasses these expensive bottlenecks entirely by returning full software visibility to your technical teams. By turning an opaque, inaccessible piece of legacy silicon back into an open, fully documented digital asset, we empower your enterprise with total hardware independence and long-term operational resilience.
