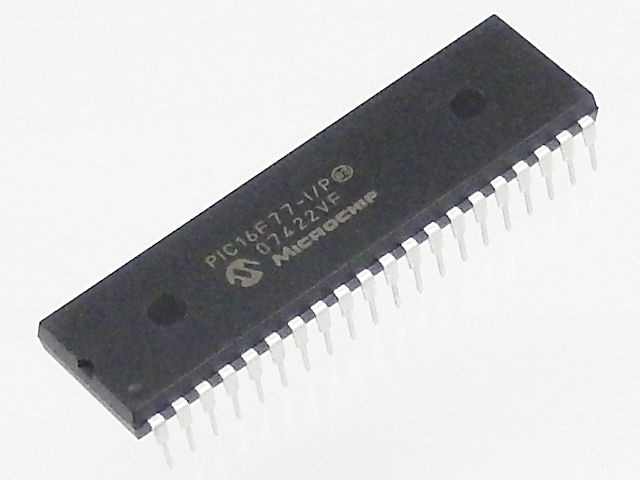

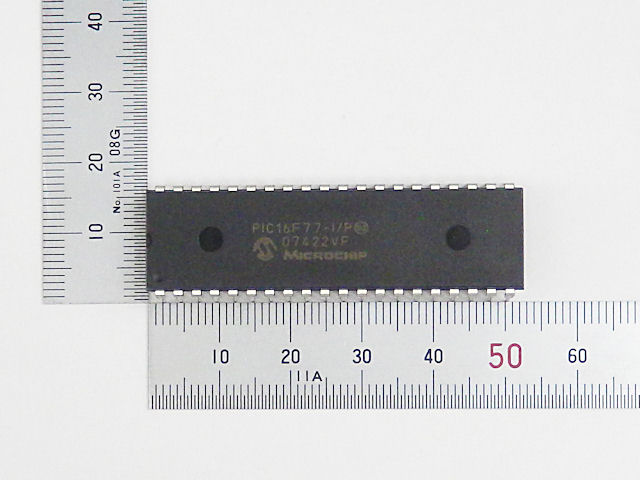

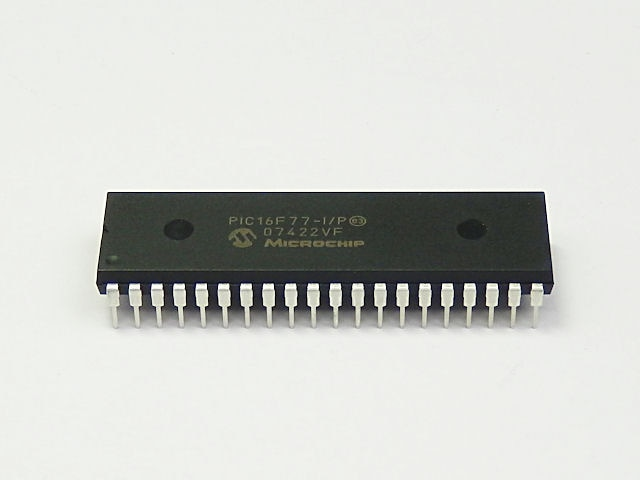

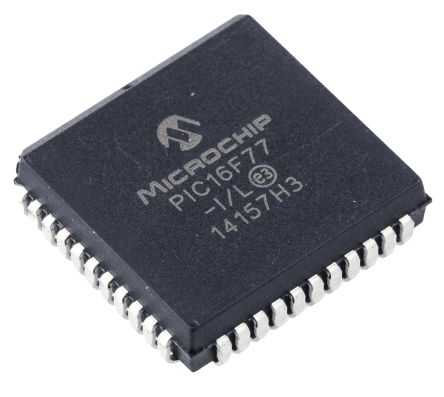

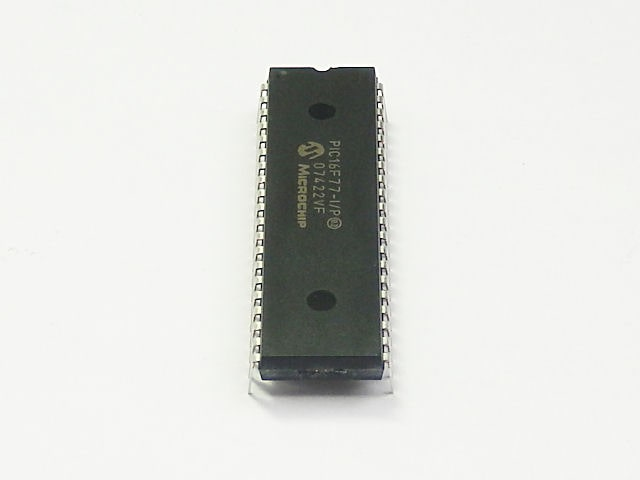

The PIC16F77 microcontroller is a powerhouse of versatility within legacy industrial and commercial electronics, prized for its expansive input/output pin layout, dual capture/compare/PWM modules, and high-performance RISC architecture. This highly capable embedded controller serves as the central processing core in heavy-duty factory automation systems, HVAC control units, commercial vending machinery, and complex telecommunication routing hardware.

What sets this specific chip apart is its ability to handle dense, real-time operating parameters alongside a robust internal flash memory array and critical eeprom storage zones, which often hold unique calibration metrics, system runtime data, and cryptographic variables. Because these settings are fundamental to the host machine’s identity and function, manufacturers invariably engage the chip’s rigid, protective security fuses. Consequently, the chip operates in a permanently locked or encrypted environment, keeping the proprietary programming secured against direct read attempts or external tampering.

Program Memory Organization:

The PIC16F7X devices have a 13-bit program counter capable of addressing an 8K word x 14-bit program memory space. The PIC16F77/76 devices have 8K words of FLASH program memory and the PIC16F73/74 devices have 4K words. The program memory maps for PIC16F7X devices are shown in Figure 2-1. Accessing a location above the physically implemented address will cause a wraparound. in the PICmicro Mid-Range Reference Manual.

The 28-pin devices have 11 interrupts, while the 40/44-pin devices have 12

· The 28-pin devices have 5 A/D input channels, while the 40/44-pin devices have 8

· The Parallel Slave Port is implemented only on the 40/44-pin devices

The RESET Vector is at 0000h and the Interrupt Vector is at 0004h;

Each bank extends up to 7Fh (128 bytes). The lower locations of each bank are reserved for the Special Function Registers. Above the Special Function Registers are General Purpose Registers, implemented as

static RAM. All implemented banks contain Special

Function Registers. Some frequently used Special

Function Registers from one bank may be mirrored in

another bank for code reduction and quicker access. implemented address will cause a wraparound. in the PICmicro Mid-Range Reference Manual

The 28-pin devices have 11 interrupts, while the 40/44-pin devices have 12

· The 28-pin devices have 5 A/D input channels, while the 40/44-pin devices have 8

· The Parallel Slave Port is implemented only on the 40/44-pin devices.

When an industrial facility or hardware engineering team encounters a critical system failure paired with a complete loss of the original source code or project archive, our dedicated laboratory provides a vital lifeline to recover MCU PIC16F77 eeprom allocations and firmware. Overcoming the integrated security flags of an obsolete microcontroller requires a sophisticated blend of material science and micro-electronics engineering. Our specialists approach this task by utilizing a highly precise physical methodology: we carefully decapsulate the resilient plastic package using controlled chemical or mechanical etching to bring the microscopic silicon die into view. Once the internal micro-structures are accessible, engineers can decode the physical state of the memory cells and attack the embedded security lock bits. By understanding the chip’s internal layout, we can safely break past the hardware-level restrictions, allowing us to hack the read-protection barriers, retrieve the uncorrupted binary data, and extract the complete heximal file flawlessly.

The core purpose of this micro-engineering intervention is to safeguard industrial longevity and eliminate the astronomical costs associated with unplanned system redesigns. When a vital piece of production equipment goes offline due to a corrupted or inaccessible chip, trying to rewrite the original program from scratch can take months of speculative engineering. Our technical services allow clients to seamlessly duplicate or clone the exact operational parameters of the failing device onto replacement hardware. The major benefit for the end user is a fast, non-destructive, and predictable restoration pathway that breathes new life into obsolete infrastructure. By transforming an unreadable, protected microcontroller into a fully accessible data asset, we ensure your daily business operations continue smoothly, entirely insulated from the threat of hardware obsolescence.
