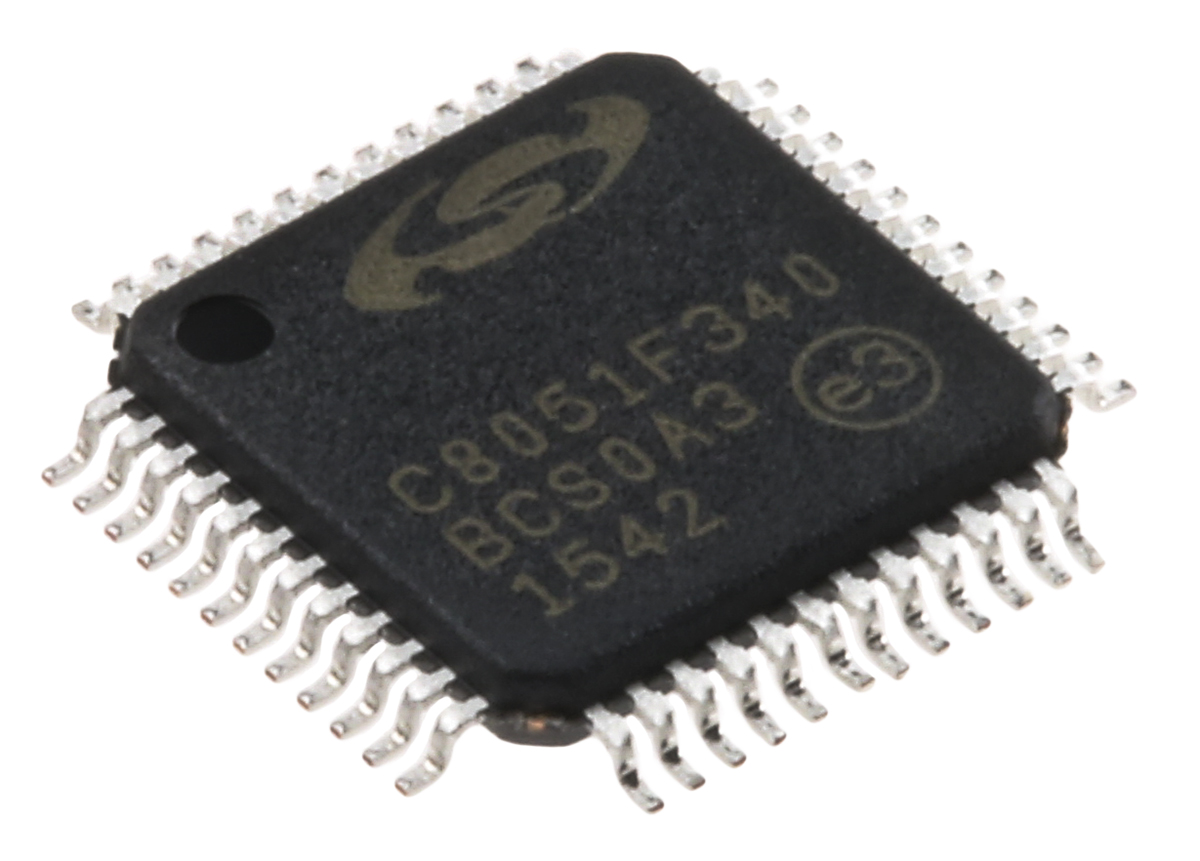

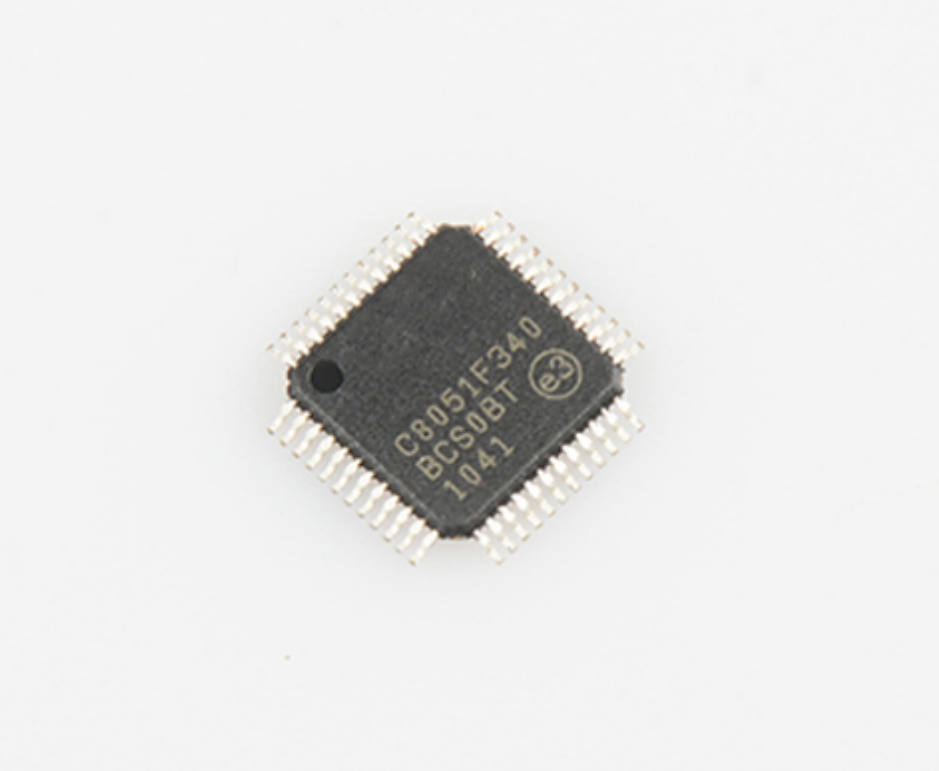

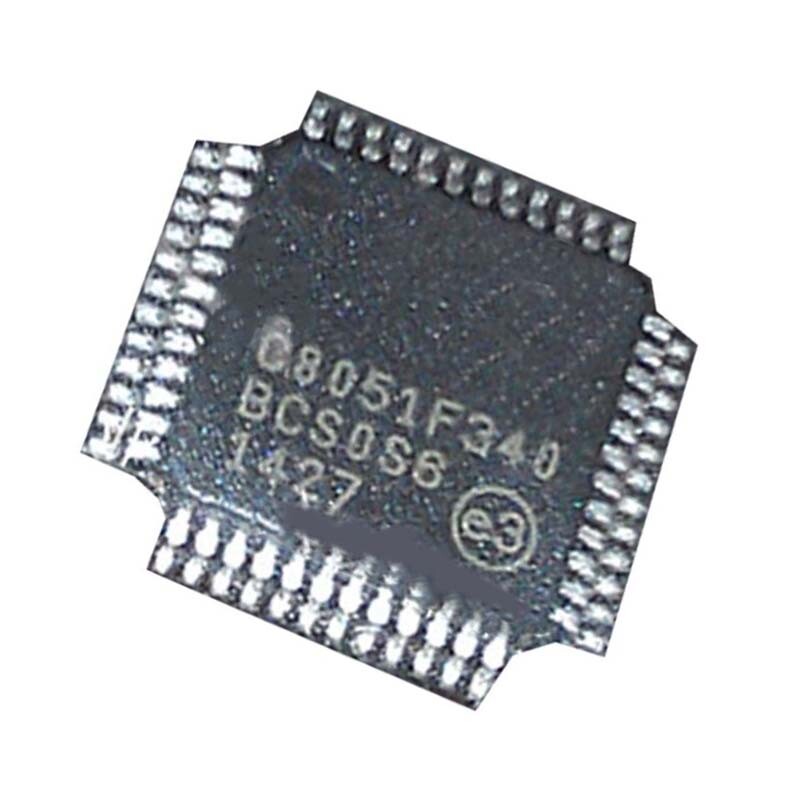

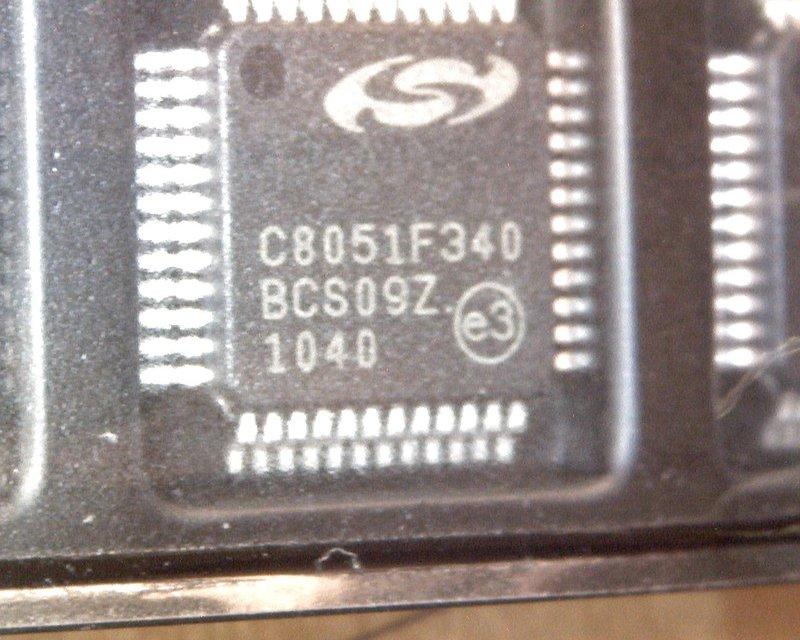

Recover Chip C8051F340 Firmware

Recover Chip C8051F340 Firmware include the program from flash and data from eeprom memory through MCU Cracking technique, then replicate the content to other blank Microcontroller C8051F340;

Analog Peripherals

High Speed 8051 µC Core 10-Bit ADC (C8051F340/1/2/3/4/5/6/7/A/B only)

Pipelined instruction architecture; executes 70% of Up to 200 ksps

Built-in analog multiplexer with single-ended and differential mode

VREF from external pin, internal reference, or VDD

Instructions in 1 or 2 system clocks 48 MIPS and 25 MIPS versions available.

Expanded interrupt handler

·   Built-in temperature sensor

·   External conversion start input option

Two comparators Internal voltage reference

Memory

– 4352 or 2304 Bytes RAM

– 64 or 32 kB Flash; In-system programmable in 512-byte

(C8051F340/1/2/3/4/5/6/7/A/B only)

– Brown-out detector and POR Circuitry

USB Function Controller

– USB specification 2.0 compliant

– Full speed (12 Mbps) or low speed (1.5 Mbps) operation sectors

Digital Peripherals

– 40/25 Port I/O; All 5 V tolerant with high sink current

– Hardware enhanced SPI™, SMBus™, and one or two enhanced UART serial ports

Integrated clock recovery; no external crystal required for full speed or low speed

Supports eight flexible endpoints 1 kB USB buffer memory

Four general purpose 16-bit counter/timers

16-bit programmable counter array (PCA) with five capture/compare modules

External Memory Interface (EMIF)

Integrated transceiver; no external resistors required

Clock Sources

On-Chip Debug

Internal Oscillator: ±0.25% accuracy with clock recovery

On-chip debug circuitry facilitates full speed, non-intruenabled. Supports all USB and UART modes sive in-system debug (No emulator required) Provides breakpoints, single stepping, inspect/modify memory and registers

External Oscillator: Crystal, RC, C, or clock (1 or 2 Pin modes)

Low Frequency (80 kHz) Internal Oscillator Superior performance to emulation systems using ICE-chips, target pods, and sockets

Voltage Supply Input: 2.7 to 5.25 V

– Voltages from 3.6 to 5.25 V supported using On-Chip Voltage Regulator

– Can switch between clock sources on-the-fly

Packages

– 48-pin TQFP (C8051F340/1/4/5/8/C)

– 32-pin LQFP (C8051F342/3/6/7/9/A/B/D)

– 5×5 mm 32-pin QFN (C8051F342/3/6/7/9/A/B)

Temperature Range: –40 to +85 °C
