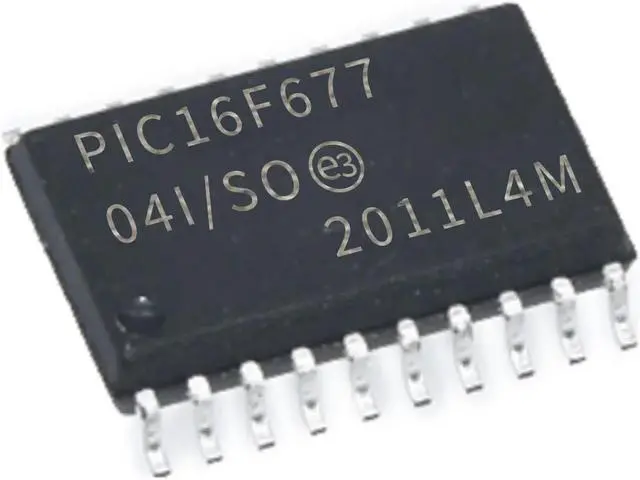

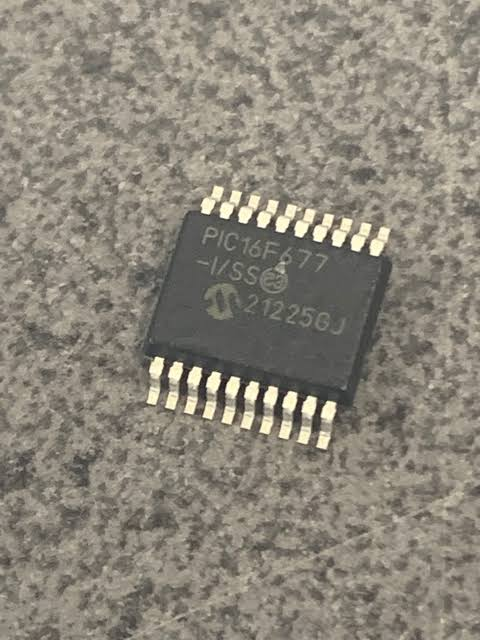

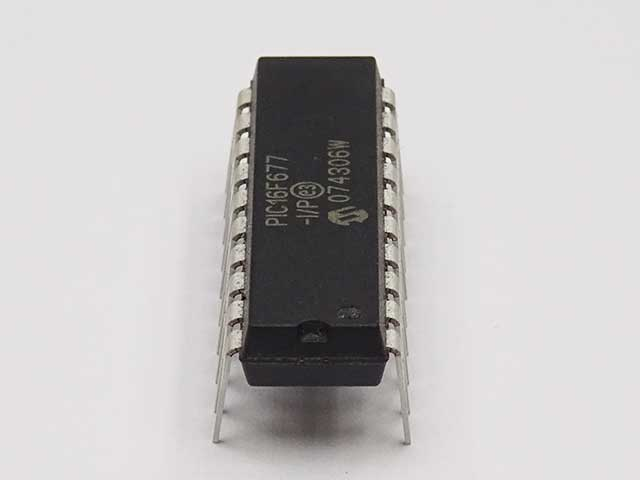

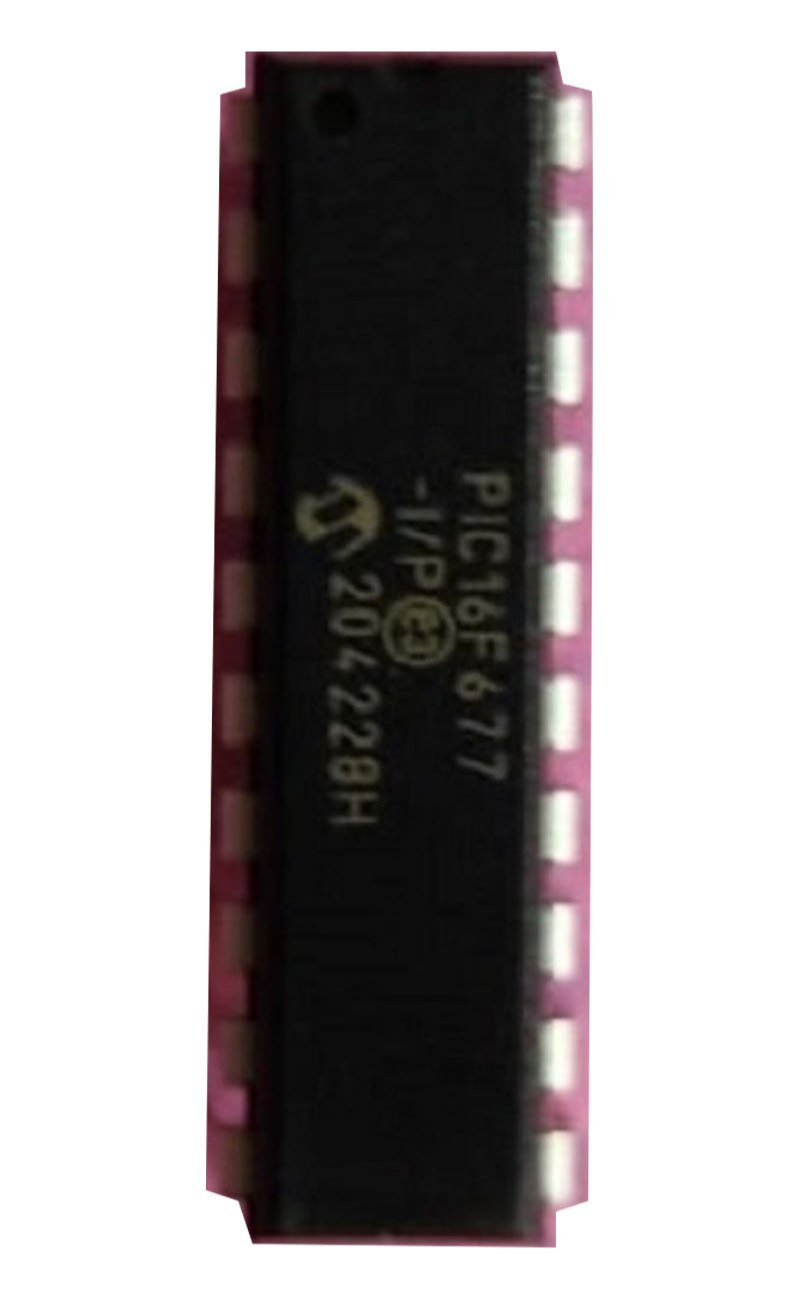

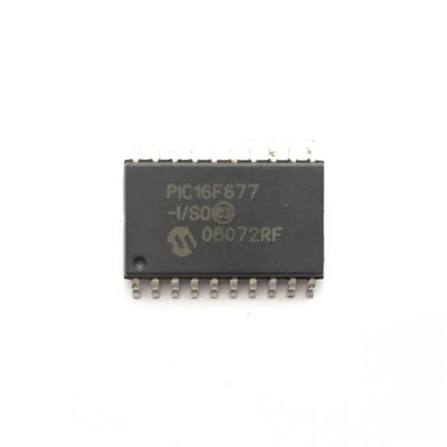

The PIC16F677 is a highly integrated 20-pin MCU that has become a staple in modern electronics due to its impressive balance of precision analog features and robust digital control. Found at the heart of various sectors—from high-efficiency LED lighting controllers and automotive sensor interfaces to complex security alarm systems—this chip is valued for its internal oscillator and versatile I/O. Its embedded architecture includes a reliable flash memory and an integrated eeprom, specifically designed to store sensitive program logic and calibration data. However, when these devices are deployed in the field, they are almost always protected by internal security fuses. This locked state ensures that the secured logic remains inaccessible to standard readers, which can create a critical roadblock for companies needing to maintain legacy hardware when the original development file is missing.

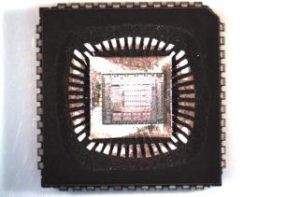

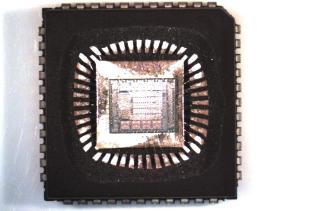

Our specialized laboratory offers a sophisticated service to break through these hardware-level restrictions to retrieve the vital binary archive residing within the silicon. To successfully attack a secured MCU, our technical team may physically decapsulate the chip to expose the internal circuitry for micro-probing or optical analysis. This advanced method allows us to decode the heximal data directly from the protected memory layers without compromising the integrity of the original hardware. Whether you need to clone an obsolete MCU for emergency repairs or duplicate the firmware from a locked device to safeguard your production line, our process ensures a flawless extraction of the embedded source code. By choosing to hack the physical and logical barriers of the PIC16F677, we turn a secured “black box” back into a manageable and portable program archive.

Low-Power Features:

· Standby Current:

– 50 nA @ 2.0V, typical

· Operating Current:

– 11 ìA @ 32 kHz, 2.0V, typical

– 220 ìA @ 4 MHz, 2.0V, typical

· Watchdog Timer Current:

– <1 ìA @ 2.0V, typical

Peripheral Features:

· 17 I/O pins and 1 input only pin:

– High current source/sink for direct LED drive

– Interrupt-on-Change pin

– Individually programmable weak pull-ups

– Ultra Low-Power Wake-up (ULPWU)

· Analog Comparator module with:

– Two analog comparators

– Programmable on-chip voltage reference (CVREF) module (% of VDD)

– Comparator inputs and outputs externally accessible

– SR Latch mode

– Timer 1 Gate Sync Latch

– Fixed 0.6V VREF

· A/D Converter:

– 10-bit resolution and 12 channels

· Timer0: 8-bit timer/counter with 8-bit programmable prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Timer1 Gate (count enable)

– Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Enhanced Capture, Compare, PWM+ module:

– 16-bit Capture, max resolution 12.5 ns

– Compare, max resolution 200 ns

– 10-bit PWM with 1, 2 or 4 output channels, programmable “dead time”, max frequency 20 kHz

– PWM output steering control

· Synchronous Serial Port (SSP):

– SPI mode (Master and Slave)

· I2C™ (Master/Slave modes):

– I2C™ address mask

· In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

The core objective of performing a targeted attack to break the security of a protected PIC16F677 is to ensure the longevity of high-value industrial assets. In many cases, the ability to retrieve a heximal file is the difference between a simple component replacement and a total system overhaul. By deciding to decode or hack the secured memory of an existing chip, engineers can clone or duplicate critical firmware to new units, effectively bypassing the constraints of a locked or encrypted environment. Our service provides the essential bridge for those who need to duplicate the flash and eeprom data from an embedded controller, ensuring that the binary logic is preserved with 100% accuracy. This prevents the catastrophic loss of proprietary algorithms and ensures that your protected source code remains an active part of your operational inventory.

For the end user, the advantages of our MCU code recovery service are found in significant cost savings and minimized operational downtime. Rather than investing months into reverse-engineering a lost program, you can simply retrieve the heximal data and clone the locked logic onto a replacement device immediately. We specialize in how to decapsulate and attack these high-security components to ensure that the binary file is extracted with surgical precision. Our expertise allows you to decode and duplicate the firmware of any secured PIC16F677, turning a protected archive into a functional reality once again. By utilizing our professional services to break the limitations of embedded silicon, you ensure that your data, flash, and eeprom contents are always available to support your critical infrastructure.
