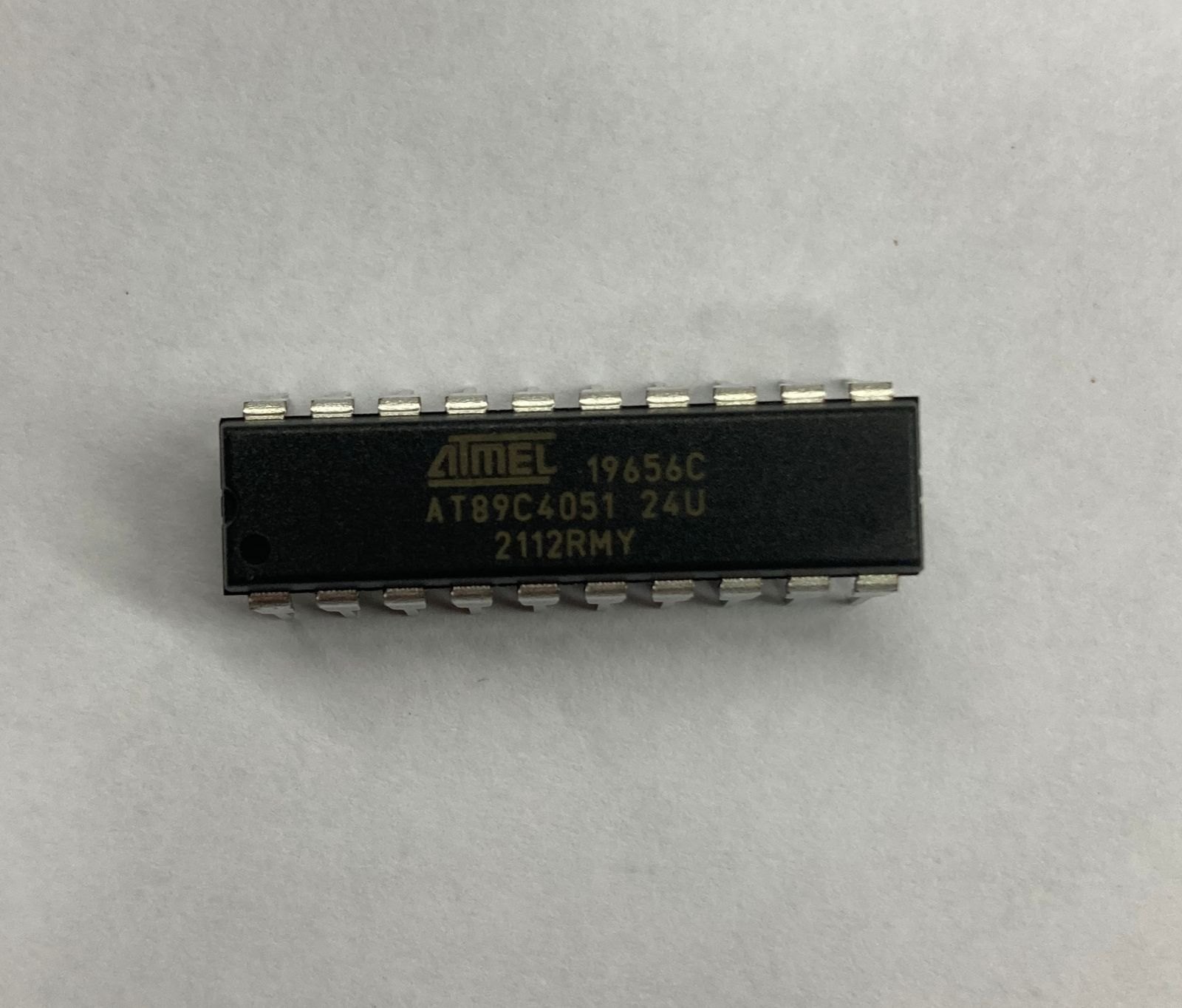

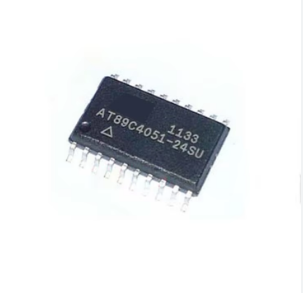

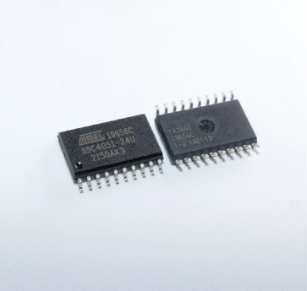

The AT89C4051 is a compact, high-performance microcontroller based on the Intel 8051 architecture, widely used in control systems, industrial automation, remote sensors, consumer electronics, and more. With its integrated flash memory, EEPROM, and I/O capabilities, this chip is ideal for compact and efficient embedded applications. However, when the firmware, heximal, or binary data stored in its flash memory is locked, encrypted, or fuse-protected, accessing or modifying the internal program becomes a significant challenge.

At CIRCUIT ENGINEERING CO.,LTD, we specialize in advanced reverse engineering and microcontroller security bypass services. Our flagship service, Recover IC AT89C4051 Heximal, is designed to unlock, decrypt, copy, or clone the protected contents of the AT89C4051 chip — even if the fuse bits are set to prevent reading or duplication.

One of the most common protection mechanisms on the AT89C4051 is the fuse bit, which, once enabled, prevents the reading of the chip’s internal program memory and eeprom. While this protects intellectual property, it can also create roadblocks for legitimate owners seeking to restore, update, or migrate legacy systems when the original source code or firmware is lost.

We provide technical services to safely crack and bypass the fuse bit protection, allowing us to recover the secured heximal or binary file from the device’s flash memory. Our process ensures that the original chip remains intact while extracting readable, editable source code or machine code. The data we provide can be used to duplicate, clone, or modify the firmware for use in development, troubleshooting, or system replication.

Recover IC AT89C4051 Heximal from flash memory and eeprom memory, decapsulate MCU AT89C4051 silicon package by MCU cracking, so the microprobe will be able to get access to the databus of Microcontroller AT89C4051;

Features

· Compatible with MCS®51 Products

· 4K Bytes of Reprogrammable Flash Memory

– Endurance: 1,000 Write/Erase Cycles

2.7V to 6V Operating Range

Fully Static Operation: 0 Hz to 24 MHz

Two-level Program Memory Lock

128 x 8-bit Internal RAM

15 Programmable I/O Lines

Two 16-bit Timer/Counters

Six Interrupt Sources

Programmable Serial UART Channel

Direct LED Drive Outputs

On-chip Analog Comparator

Low-power Idle and Power-down Modes

Brown-out Detection

Power-On Reset (POR)

Green (Pb/Halide-free/RoHS Compliant) Packaging

The AT89C4051 is a low-voltage, high-performance CMOS 8-bit microcontroller with

4K bytes of Flash programmable and erasable read-only memory. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C4051 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.

Our technical team is equipped with a suite of custom-built and industry-grade tools for dealing with protected embedded systems. Our capabilities include:

• Reading and decoding secured flash and eeprom memory
• Recovering and decompiling the heximal firmware into readable assembly or C-like source code
• Cloning and duplicating protected firmware to new chips
• Restoring non-functional systems when the original program is no longer available
• Providing clean, editable code suitable for debugging, migration, or enhancement

The AT89C4051 provides the following standard features: 4K bytes of Flash, 128 bytes of RAM, 15 I/O lines, two 16-bit timer/counters, a five-vector, two-level interrupt architecture, a full duplex serial port, a precision analog comparator, on-chip oscillator and clock circuitry. In addition, the AT89C4051 is designed with static logic for operation down to zero frequency and supports two software-selectable power saving modes. The Idle Mode stops the CPU while allowing the RAM, timer/counters, serial port and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the oscillator disabling all other chip functions until the next hardware reset for MCU Attacking.

The AT89C4051 is often used in legacy systems where maintenance and upgrades are needed but the original development tools or firmware are no longer available. Our services are critical for:

• Industrial automation systems with aging control boards
• Medical devices requiring secure updates or analysis
• Automotive modules with proprietary embedded programs
• Consumer electronics where unlocking firmware is needed for repair or compatibility

Whether you’re a hardware engineer, OEM, or system integrator, we help you decode, hack, or open the locked data within embedded systems, giving you the access you need for further development or security analysis.

Circuit Engineering Company Limited continues to be recognized as the Southern China Leader in Services for IC Break, MCU attack, Chip Recover, Microcontroller Copy service. With the advancement of today’s modern circuit board technology, it is more important than ever to have specialists available to help you at a moment’s notice. Our engineering and commercial teams collectively have a vast amount of electronic experience covering field include Consumer Electronics, Industrial Automation Electronics, Wireless Communication Electronics., etc. For more information please contact us through email.
