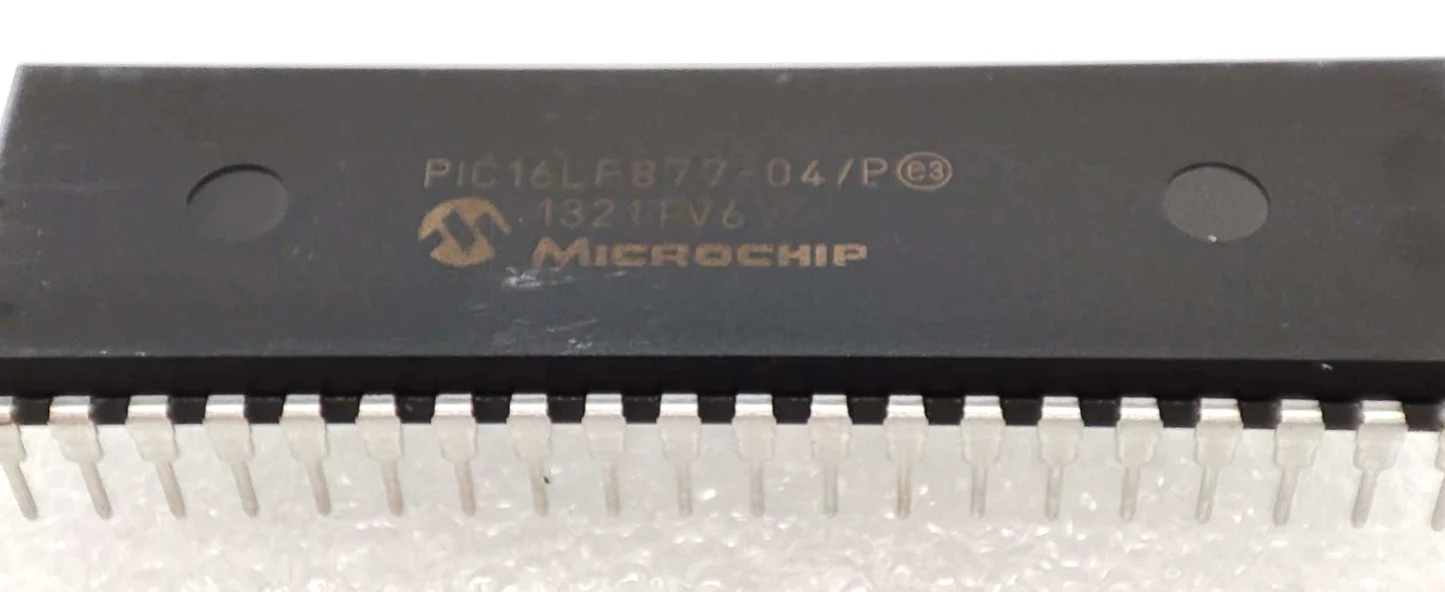

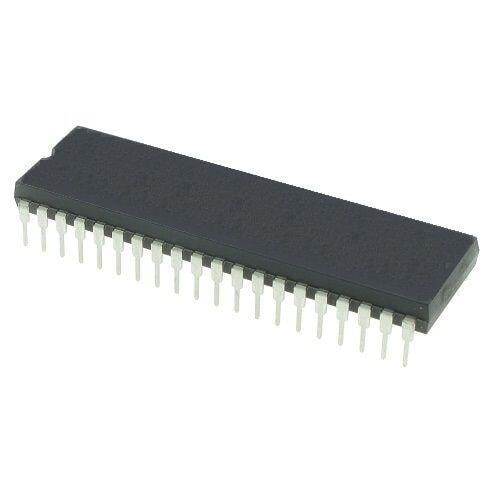

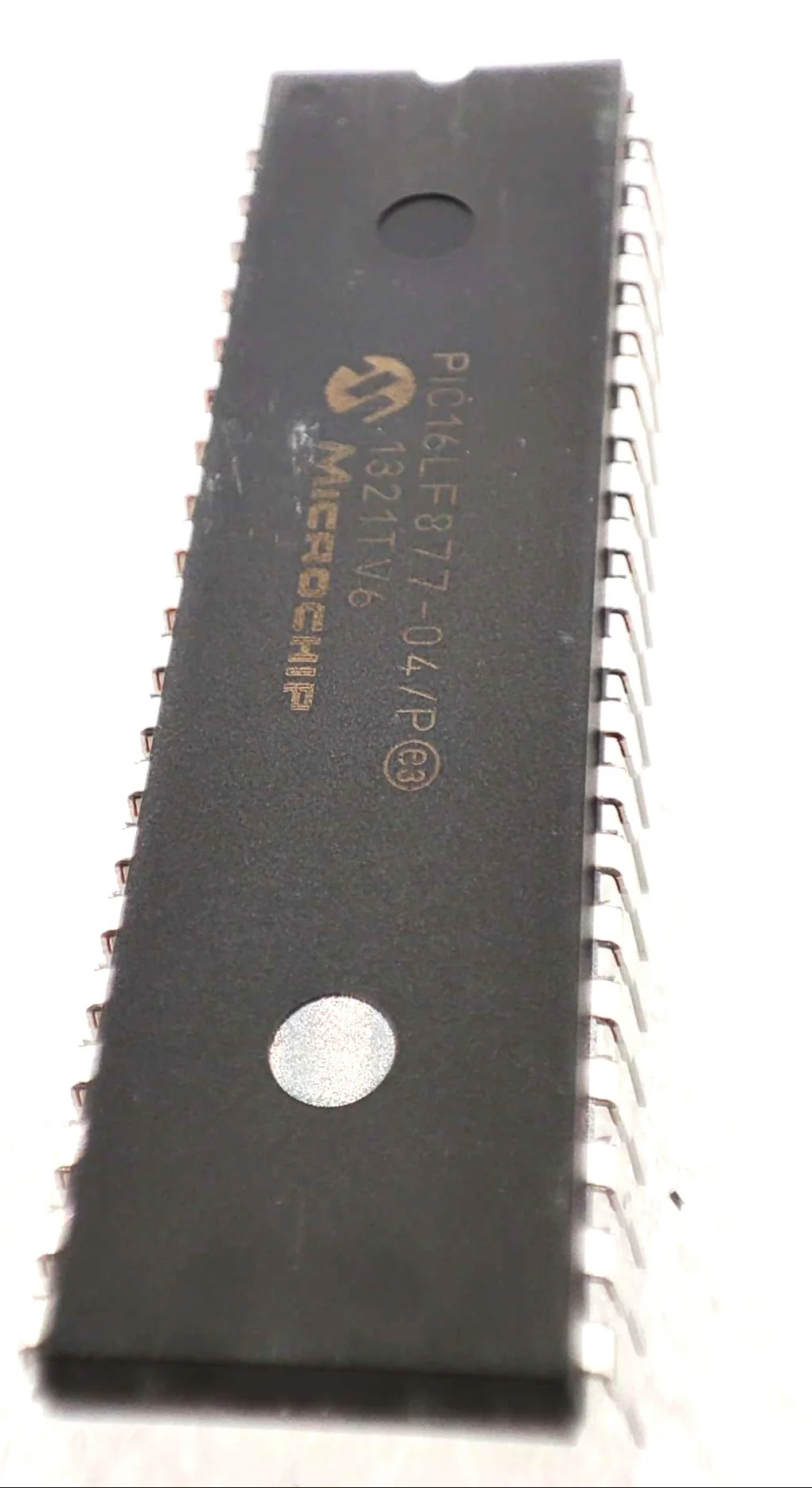

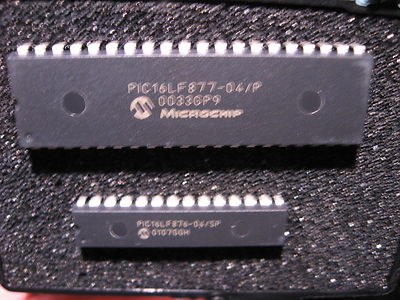

Accessing and managing the embedded program inside a PIC16LF877 is a frequent need across many industries. Whether you must restore a corrupted heximal file, copy legacy firmware for production scaling, or audit protected code for security and compliance, our service specializes in helping end users open, copy, clone, duplicate, and when legitimately required, decode or decrypt secured program data from Microchip PIC16LF877 devices.

Why PIC16LF877 matters

The PIC16LF877 is a widely used 8-bit microcontroller known for its versatile I/O, on-chip EEPROM/flash memory, and robust peripheral set. You’ll find it in:

• Industrial controls and PLC interfaces
• Consumer appliances and instrumentation
• Motor controllers and simple robotics
• Legacy medical devices and instrumentation
  Its combination of low-power operation, programmable flash, and EEPROM storage makes it ideal for embedded systems that require reliable, low-cost control logic.

We can Copy IC PIC16LF877 Program, below please view the IC PIC16LF877 features for your reference:

Devices Included in this Data Sheet:

Analog Features:

· PIC16F873A

· PIC16F874A

· PIC16F876A

· PIC16F877A

· 10-bit, up to 8-channel Analog-to-Digital Converter (A/D)

· Brown-out Reset (BOR)

High-Performance RISC CPU:

 What we provide

Our Copy IC PIC16LF877 Program service covers the entire lifecycle of firmware recovery and duplication without exposing clients to unnecessary risk:

• Identification of the device variant and memory layout (flash, EEPROM, config words).
• Non-destructive extraction and safe handling of binary/heximal program archives.
• Restoration of corrupted or partial program files into usable program or file formats.
• Cloning/duplication of firmware for legitimate backup, production, or migration needs.
• Decoding/decrypting services when encryption or protective measures are present — performed only under lawful authorization.
• Creation of a cleaned, documented source code map (where feasible) and verified program images for redeployment.

General workflow (high-level)

To protect clients and comply with legal and ethical norms, we describe our approach conceptually rather than as step-by-step instructions:

1. Assess the device and verify ownership/authorization.
2. Analyze protection status and the type of locked/encrypted mechanisms present.
3. Use safe, reversible methods to obtain a readable copy of the flash and EEPROM data.
4. Process and validate extracted binary/heximal archives; reconstruct into a usable program file.
5. Provide deliverables: restored hex file, duplication images, and a reproducible deployment procedure.

(Important: we do not publish or provide procedural instructions that would enable bypassing protections without proper authorization.)

· Only 35 single-word instructions to learn when Clone IC

· All single-cycle instructions except for program branches, which are two-cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· Up to 8K x 14 words of Flash Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory

· Pinout compatible to other 28-pin or 40/44-pin PIC16CXXX and PIC16FXXX microcontrollers

Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Two Capture, Compare, PWM modules

– Capture is 16-bit, max. resolution is 12.5 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10-bit

· Synchronous Serial Port (SSP) with SPI™ (Master mode) and I2C™ (Master/Slave)

· Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection

· Parallel Slave Port (PSP) – 8 bits wide with external RD, WR and CS controls (40/44-pin only)

· Brown-out detection circuitry for Brown-out Reset (BOR)

· Analog Comparator module with:

– Two analog comparators

– Programmable on-chip voltage reference (VREF) module

– Programmable input multiplexing from device inputs and internal voltage reference

– Comparator outputs are externally accessible

Special Microcontroller Features:

· 100,000 erase/write cycle Enhanced Flash program memory typical

· 1,000,000 erase/write cycle Data EEPROM memory typical

· Data EEPROM Retention > 40 years

· Self-reprogrammable under software control

· In-Circuit Serial Programming™ (ICSP™) via two pins

· Single-supply 5V In-Circuit Serial Programming

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Programmable code protection

· Power saving Sleep mode

· Selectable oscillator options

· In-Circuit Debug (ICD) via two pins CMOS Technology:

· Low-power, high-speed Flash/EEPROM technology

· Fully static design when Copy IC

· Wide operating voltage range (2.0V to 5.5V)

· Commercial and Industrial temperature ranges

· Low-power consumption

Many PIC16LF877 units are shipped with protective fuse/configuration bits to safeguard IP. Our work is delivered strictly under client authorization and with confidentiality. We refuse requests that aim to facilitate piracy, IP theft, or other illicit activities. For each project we request proof of ownership or permission to act.

Value to clients

By choosing this service, end users gain the ability to restore lost firmware, duplicate proven configurations for manufacturing, migrate legacy systems to modern hardware, and secure business continuity for systems dependent on the PIC16LF877. Whether you need to open an archived program, copy firmware for lawful duplication, or decode a protected image under proper authority, our professional, compliant approach ensures reliable results and reduced operational risk.
