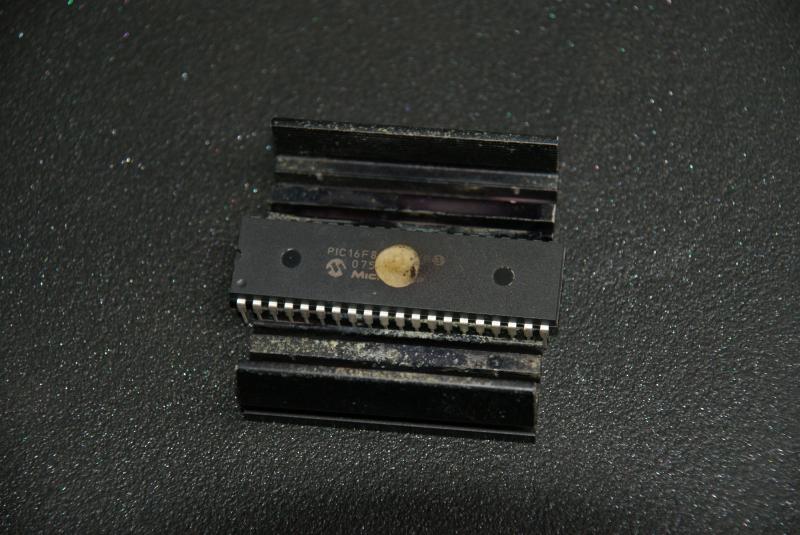

The Microchip PIC16F886 is a versatile 8-bit microcontroller widely used in various embedded applications, from consumer electronics and industrial automation to medical devices and automotive control systems. With its built-in EEPROM, Flash memory, 12-bit ADC, and enhanced capture/compare/PWM modules, the PIC16F886 is a favorite among engineers for projects that demand flexibility, compact size, and low power consumption.

However, the same qualities that make it ideal for integration also make it a challenge when it comes to firmware analysis or recovery—especially when the chip is locked, secured, or encrypted to prevent unauthorized access. At CIRCUIT ENGINEERING CO., LTD, we specialize in helping clients copy IC PIC16F886 firmware, including from protected or embedded systems.

Copy IC PIC16F886 Firmware and reprogramme the program into blank Microcontroller PIC16F886 which will provide the same functions as original MCU PIC16F886 after Crack MCU protective system;

High-Performance RISC CPU:

· Only 35 instructions to learn:

– All single-cycle instructions except branches

· Operating speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt capability

· 8-level deep hardware stack

· Direct, Indirect and Relative Addressing modes

Our expert team provides comprehensive services to copy, clone, or duplicate the firmware, binary, or heximal data from a secured PIC16F886 microcontroller. Whether you’re trying to restore a corrupted device, decode a legacy system, or unlock the original program for upgrades, we offer the technical capabilities and experience to assist you.

We work with:

• Encrypted and locked PIC16F886 devices
• Flash and EEPROM data extraction
• Heximal file recovery and source code reconstruction
• Memory mapping and firmware archive analysis
• Protected firmware decryption and reverse engineering

Using highly specialized techniques and proprietary hardware/software tools, our process enables the safe and accurate extraction of data, even from secured chips that most general programmers can’t access.

Special Microcontroller Features:

· Precision Internal Oscillator:

– Factory calibrated to ±1%

– Software selectable frequency range of 8 MHz to 31 kHz

– Software tunable

– Two-Speed Start-up mode

– Crystal fail detect for critical applications

– Clock mode switching during operation for power savings

· Power-Saving Sleep mode

· Wide operating voltage range (2.0V-5.5V)

· Industrial and Extended Temperature range

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Brown-out Reset (BOR) with software control option

· Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable

· Multiplexed Master Clear with pull-up/input pin

· Programmable code protection

Understanding the structure and function of the PIC16F886 helps explain the demand for this service. The chip includes:

• 14KB of self-programmable Flash memory
• 368 bytes of SRAM
• 256 bytes of EEPROM
• Rich peripheral set (ADC, CCP, UART, SPI, I²C)
• Internal oscillator and watchdog timer

It’s commonly deployed in remote sensors, motor control, signal processing, and smart controller systems, where firmware updates or analysis might be required—especially in cases of hardware failure, lost documentation, or product redesign.

When a manufacturer fails to provide the original firmware, or when you’re working with a legacy system that’s no longer supported, copying the IC PIC16F886 firmware becomes a practical necessity. It may be the only way to restore full functionality or maintain operations in a production environment.

· High Endurance Flash/EEPROM cell:

– 100,000 write Flash endurance

– 1,000,000 write EEPROM endurance

– Flash/Data EEPROM retention: > 40 years

· Program memory Read/Write during run time

· In-Circuit Debugger (on board)

Low-Power Features:

· Standby Current:

– 50 nA @ 2.0V, typical

· Operating Current:

– 11 ìA @ 32 kHz, 2.0V, typical

– 220 ìA @ 4 MHz, 2.0V, typical

· Watchdog Timer Current:

– 1 ìA @ 2.0V, typical

Peripheral Features:

· 24/35 I/O pins with individual direction control

– High current source/sink for direct LED drive

– Interrupt-on-Change pin

– Individually programmable weak pull-ups

– Ultra Low-Power Wake-up (ULPWU)

· Analog Comparator module with:

While we offer the technical expertise to crack, hack, or decode locked firmware, our services are offered under strict confidentiality and within the boundaries of local laws. We support ethical reverse engineering, such as:

• System recovery
• Security research
• Legacy system maintenance
• Intellectual property retrieval for rightful owners

We do not engage in any services that violate the intellectual property rights of others.

– Two analog comparators

– Programmable on-chip voltage reference (CVREF) module (% of VDD)

– Fixed voltage reference (0.6V)

– Comparator inputs and outputs externally accessible

– SR Latch mode

– External Timer1 Gate (count enable)

· A/D Converter:

– 10-bit resolution and 11/14 channels

· Timer0: 8-bit timer/counter with 8-bit programmable prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Gate Input mode

– Dedicated low-power 32 kHz oscillator

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Enhanced Capture, Compare, PWM+ module:

– 16-bit Capture, max. resolution 12.5 ns

– Compare, max. resolution 200 ns

– 10-bit PWM with 1, 2 or 4 output channels, programmable “dead time”, max. frequency 20 kHz

– PWM output steering control

· Capture, Compare, PWM module:

– 16-bit Capture, max. resolution 12.5 ns

– 16-bit Compare, max. resolution 200 ns

– 10-bit PWM, max. frequency 20 kHz

· Enhanced USART module:

– Supports RS-485, RS-232, and LIN 2.0

– Auto-Baud Detect

– Auto-Wake-Up on Start bit

· In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

· Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI (all 4 modes) and I2C™ Master and Slave Modes with I2C address mask

At CIRCUIT ENGINEERING CO., LTD, we combine technical precision, industry experience, and a deep understanding of embedded microcontroller architectures to deliver world-class firmware recovery solutions. If you’re struggling with a locked or damaged PIC16F886 and need to copy its internal data, we’re here to help.

Contact us today to learn more about how our services can help you copy IC PIC16F886 firmware, unlock valuable programs, and regain control of your embedded systems.
