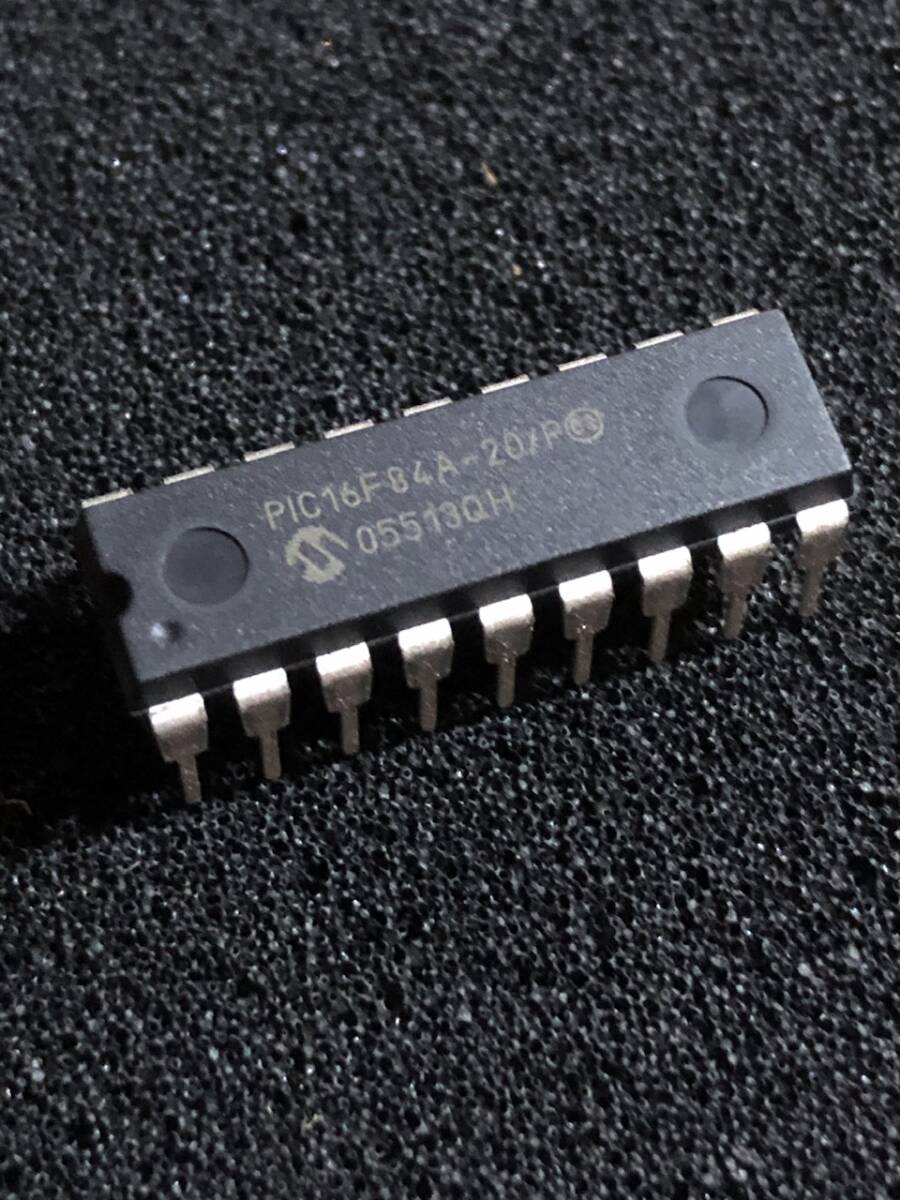

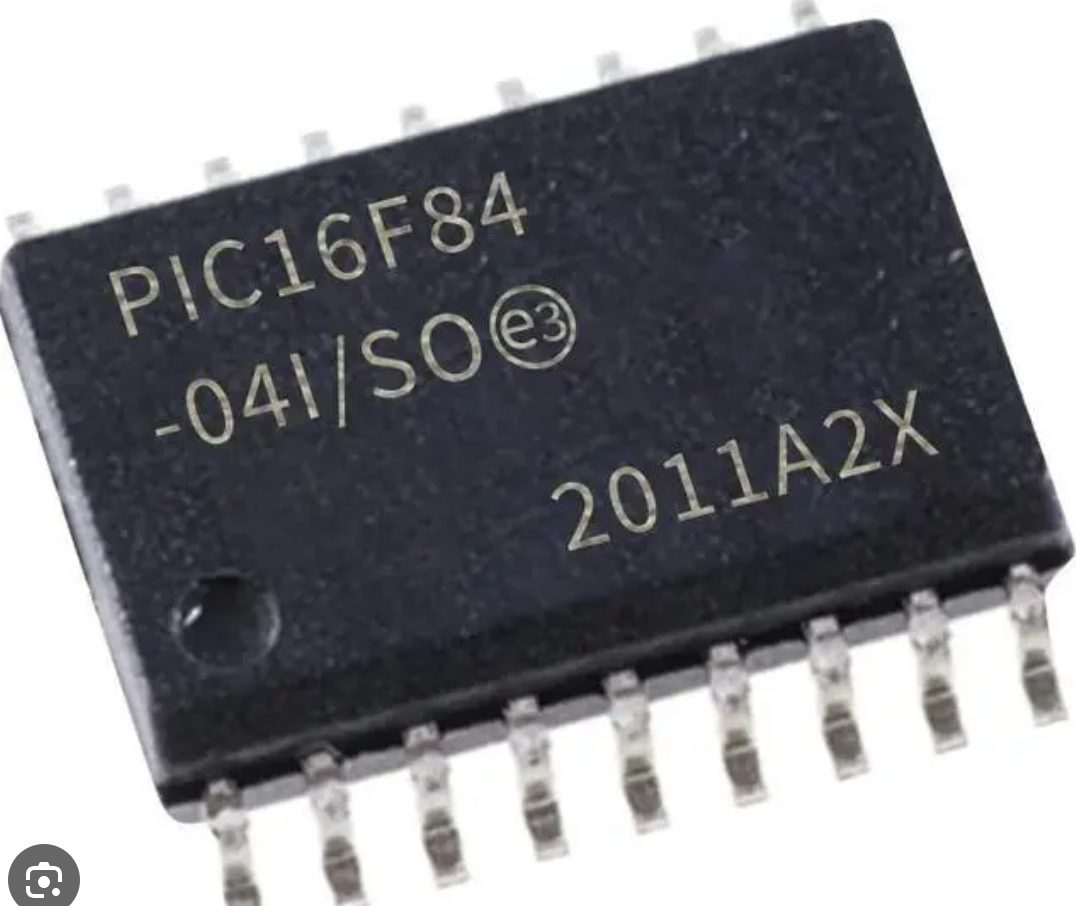

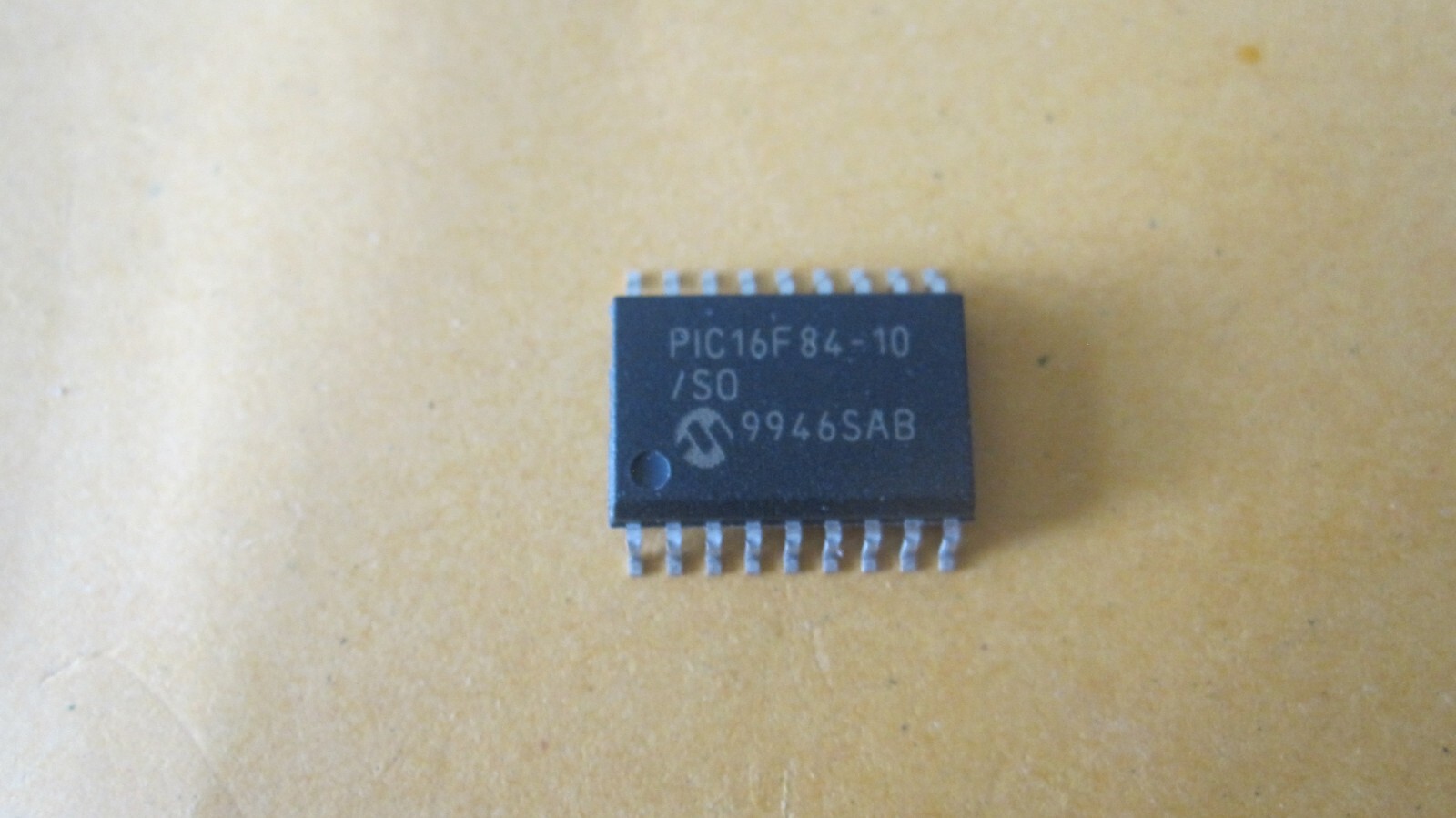

The Microchip PIC16F84 is one of the most widely recognized microcontrollers in the history of embedded design. Even today, it remains active inside countless industrial controllers, educational platforms, automation modules, access systems, and consumer electronics. When organizations search for Copy IC PIC16F84 Code, it is typically because the original source code, program, or compiled firmware has been lost, while the hardware must continue operating. Our specialized service is designed to help legitimate owners retrieve, clone, or duplicate the embedded binary or heximal content from protected devices—without exposing any technical methods.

All PICmicro™ microcontrollers employ an advanced RISC architecture. PIC16F8X devices have enhanced core features, eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with a separate 8-bit wide data bus which can be used for Copy IC PIC16F84 Code. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available. Additionally, a large register set is used to achieve a very high performance level.

The PIC16F84 gained popularity due to its simplicity, reliability, and on-chip flash and EEPROM memory, which made it ideal for early embedded applications such as:

• Industrial automation and timing controllers
• Educational development boards and training systems
• Home appliances and basic consumer electronics
• Security alarms and access-control units
• Small robotic and sensor-based products

Its non-volatile memory allows systems to store logic and configuration data even after power loss, making the internal archive essential for maintenance and future expansion.

PIC16F8X microcontrollers typically achieve a 2:1 code compression and up to a 4:1 speed improvement (at 20 MHz) over other 8-bit microcontrollers in their class. The PIC16F8X has up to 68 bytes of RAM, 64 bytes of Data EEPROM memory, and 13 I/O pins. A timer/counter is also available.

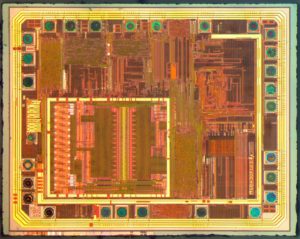

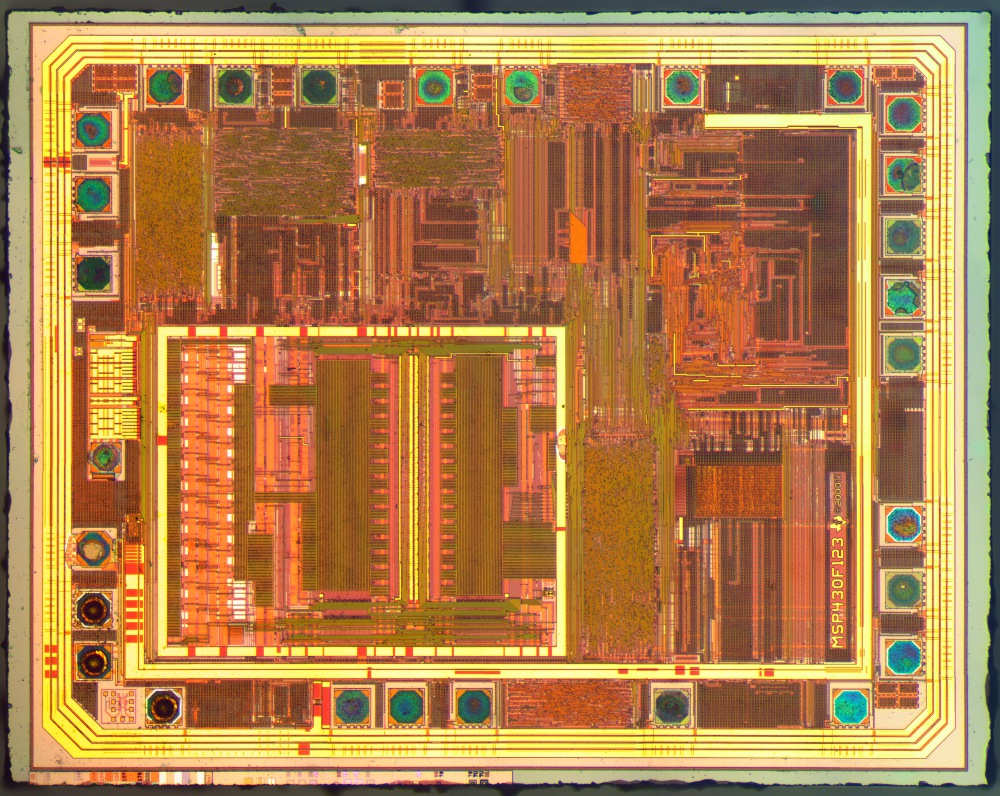

Our service assists authorized clients who need to attack or break access restrictions imposed by locked, encrypted, or secured configurations. Standard programmers cannot decode or read these devices once protection is enabled. Through controlled analysis and, when required, approved decapsulation, we safely retrieve the internal program and reconstruct a usable file.

We do not provide instructions on how to hack devices. All processes are handled internally, and customers receive only the final recovered firmware, suitable for validation, redesign, or controlled replication.

The PIC16CXX family has special features to reduce external components, thus reducing cost, enhancing system reliability and reducing power consumption.

There are four oscillator options, of which the single pin RC oscillator provides a low-cost solution, the LP oscillator minimizes power consumption, XT is a standard crystal, and the HS is for High Speed crystals.

Clients use this service to:

• Restore production when original developers are unavailable
• Avoid costly redesign of proven legacy systems
• Build verified archives for long-term product support
• Enable accurate clone or duplicate manufacturing
• Preserve intellectual property already embedded in hardware

Recovering the PIC16F84 code ensures continuity, lowers risk, and protects prior engineering investment.

The SLEEP (power-down) mode offers power saving. The user can wake the chip from sleep through several external and internal interrupts and resets. A highly reliable Watchdog Timer with its own on-chip RC oscillator provides protection against software lock-up. The devices with Flash program memory allow the same device package to be used for prototyping and production.

In-circuit reprogrammability allows the code to be updated without the device being removed from the end application. This is useful in the development of many applications where the device may not be easily accessible to Copy IC PIC16F84 Code, but the prototypes may require code updates. This is also useful for remote applications where the code may need to be updated (such as rate information).

The PIC16F8X fits perfectly in applications ranging from high speed automotive and appliance motor control to low-power remote sensors, electronic locks, security devices and smart cards. The Flash/EEPROM technology makes customization of application programs (transmitter codes, motor speeds, receiver frequencies, security codes, etc.) extremely fast and convenient.

The small footprint packages make this microcontroller series perfect for all applications with space  limitations.  Low-cost,  low-power,  high performance, ease-of-use and I/O flexibility make the PIC16F8X very versatile even in areas where no microcontroller use has been considered (e.g., timer functions; serial communication; capture, compare and PWM functions; and co-processor applications).

The serial in-system programming feature (via two pins) offers flexibility of customizing the product after complete assembly and testing. This feature can be used to serialize a product, store calibration data, or program the device with the current firmware before shipping.

Typical difficulties include aging silicon, partially degraded EEPROM, undocumented revisions, or deeply protective security settings. These challenges require experience and precision to ensure complete and reliable output.
