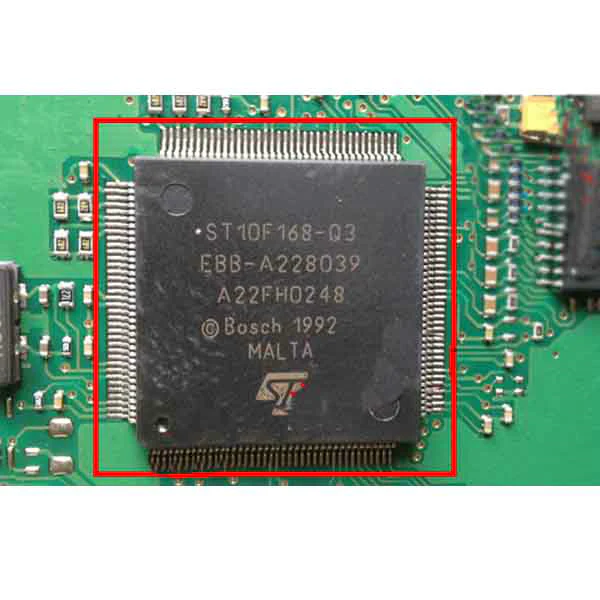

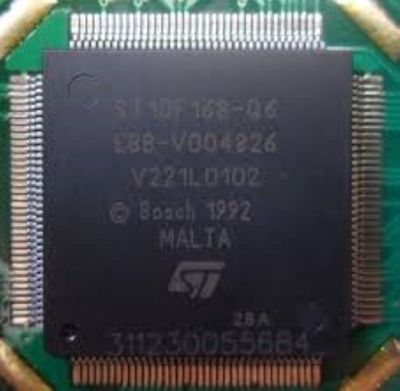

The STMicroelectronics ST10F168 family is a widely used 16/32-bit microcontroller line built for demanding automotive, industrial, and control applications. When the need arises to copy chip ST10F168SQ6 software — whether to restore lost firmware, duplicate legacy systems, or audit a protected embedded program — professional, careful handling is essential. We offer a service to help end users readout, analyze, and recover the firmware/binary/heximal data stored in ST10F168 devices while prioritizing legality and data integrity.

Why clients need this service

Devices using the ST10F168 often contain critical program files, calibration data, or archived memory essential to system operation. Common legitimate reasons to request a firmware copy include:

• Restore corrupted or accidentally erased flash/eeprom files.
• Duplicate/clone firmware for legitimate manufacturing backups or legacy system support.
• Migrate software to replacement hardware during maintenance or upgrades.
• Audit and verify embedded software for safety and compliance.

Copy Chip ST10F168SQ6 Software from its encrypted flash and eeprom memory, extract MCU firmware and make microcontroller st10f168sq6 cloning units;

HIGH PERFORMANCE CPU

– 16-BIT CPU WITH 4-STAGE PIPELINE

– 80ns INSTRUCTION CYCLE TIME AT 25MHz CPU CLOCK

– 400ns 16 X 16-BIT MULTIPLICATION

– 800ns 32 / 16-BIT DIVISION

– ENHANCED BOOLEAN BIT MANIPULATION FACILITIES

– ADDITIONAL INSTRUCTIONS TO SUPPORT HLL AND OPERATING SYSTEMS

– SINGLE-CYCLE CONTEXT SWITCHING SUP-

PQFP144 (28 x 28 mm) (Plastic Quad Flat Pack)

PORT A/D CONVERTER

MEMORY ORGANIZATION

– 256K BYTE ON-CHIP FLASH MEMORY

– 10K ERASING / PROGRAMMING CYCLES

– UP TO 16M BYTE LINEAR ADDRESS SPACE

FOR CODE AND DATA (5M BYTE WITH CAN) when break microcontroller s3f9454 software

– 2K BYTE ON-CHIP INTERNAL RAM (IRAM)

– 6K BYTE ON-CHIP EXTENSION RAM (XRAM)

– 20 YEAR DATA RETENTIO N TIME

FAST AND FLEXIBLE BUS

– PROGRAMMABLE EXTERNAL BUS CHARAC-

TE- RISTICS FOR DIFFERENT ADDRESS RANGES

– 8-BIT OR 16-BIT EXTERNAL DATA BUS

– MULTIPLEXED OR DEMULTIPLEXED EXTER-NAL ADDRESS / DATA BUSES

– FIVE PROGRAMMABLE CHIP-SELECT SIGNALS

– HOLD-ACKNOWLEDGE  BUS  ARBITRATION SUPPORT INTERRUPT

– 16-CHANNEL 10-BIT after read microchip mcu pic32mx440f512h bin

– 7.76µS CONVERSION TIME

FAIL-SAFE PROTECTIO N

– PROGRAMMABLE WATCHDOG TIMER

– OSCILLATOR WATCHDOG

ON-CHIP CAN 2.0B INTERFACE

ON-CHIP BOOTSTR AP LOADER

CLOCK GENERATION

– ON-CHIP PLL

– DIRECT OR PRESCALED CLOCK INPUT.

UP TO 111 GENERAL PURPOSE I/O LINES

– INDIVIDUALLY PROGRAMMABLE AS INPUT,

OUTPUT OR SPECIAL FUNCTION.

– PROGRAMMABLE THRESHOLD (HYSTERESIS)

IDLE AND POWER DOWN MODES

SINGLE VOLTAGE SUPPLY: 5V ±10%

144-PIN PQFP PACKAGE

What we can do (high level)

We assist clients in lawful recovery and duplication tasks related to the ST10F168: open, copy, duplicate, and extract readable flash and EEPROM images; decode and disassemble binary/heximal data to aid in analysis; and support efforts to restore usable program archives. While we can work with protected or locked images at a conceptual level, we do not provide step-by-step instructions for bypassing security mechanisms — our focus is on safe, ethical recovery under proper authorization.

Typical applications of ST10F168

The ST10F168 and its relatives are commonly found in:

• Automotive control modules (engine, transmission, ABS, body control).
• Industrial automation (PLC peripherals, motor controllers, process instruments).
• Power management and metering devices.
• Consumer and professional instrumentation requiring deterministic control and analog integration.

Unique features that matter for recovery

The ST10 series combines real-time CPU performance with peripheral richness — watchdogs, timers, serial interfaces, and on-chip nonvolatile memories — which makes firmware critical and often secured. Its architecture and on-chip memory layout influence how firmware is stored (flash vs. EEPROM) and what recovery approaches are appropriate. Knowing these chip specifics reduces risk of data loss during readout and helps produce a more complete source of truth for clients.

Ethics, legality, and confidentiality

We require proof of ownership or authorization before attempting any firmware recovery, and we operate under strict confidentiality agreements. Our work is intended for lawful purposes: restore, repair, support legacy equipment, or perform authorized security audits. We do not assist with illegal copying or distribution of copyrighted or safety-critical software without explicit, lawful consent.

Deliverables & outcomes

Clients receive recoverable binary/heximal files, documented extraction reports, and optional high-level disassembly summaries to aid integration, testing, or migration. Where feasible and lawful, we can help translate low-level outputs into readable program representations to accelerate troubleshooting or redevelopment. If you need to copy chip ST10F168SQ6 software for legitimate recovery, maintenance, or audit purposes, our service provides secure, professional support focused on protecting your data and operational continuity.
