Break IC MC9S12XDG128 Heximal is a professional recovery and analysis service designed for organizations that must legally regain access to embedded firmware when original source code, documentation, or development partners are no longer available. The MC9S12XDG128 is a high-performance 16-bit microcontroller from the HCS12X family, widely recognized for its robust flash memory, EEPROM resources, and advanced embedded security features. It has been extensively deployed in automotive electronics, industrial automation, energy management systems, and mission-critical control modules where long product life cycles are common.

We can Break IC MC9S12XDG128 Heximal, please view below IC MC9S12XDG128 features for your reference:

Introduction

Targeted at automotive multiplexing applications, the MC9S12XD Family will deliver 32-bit performance with all the advantages and efficiencies of a 16-bit MCU. The S12X is designed to retain the low cost, low power consumption, excellent EMC performance and code-size efficiency advantages enjoyed by users of Freescale’s previous 16-bit MC9S12 MCU family.

Based around an enhanced S12 core, the MC9S12XD Family will deliver two to five times the performance of a 25 MHz S12 whilst retaining a high degree of pin and code compatibility with the original S12D – family.

This microcontroller integrates on-chip flash, EEPROM, RAM, and a rich set of peripherals, making it suitable for complex embedded applications that demand reliability and deterministic performance. In many production environments, firmware, binary, or heximal program files are stored in protected, locked, or encrypted memory regions to secure intellectual property. Over time, these protective mechanisms can become a barrier when firmware archives are lost, hardware suppliers change, or systems require refurbishment. Our service focuses on helping authorized clients attack and break access restrictions in a controlled manner to retrieve secured firmware, memory data, or program files without exposing confidential technical details.

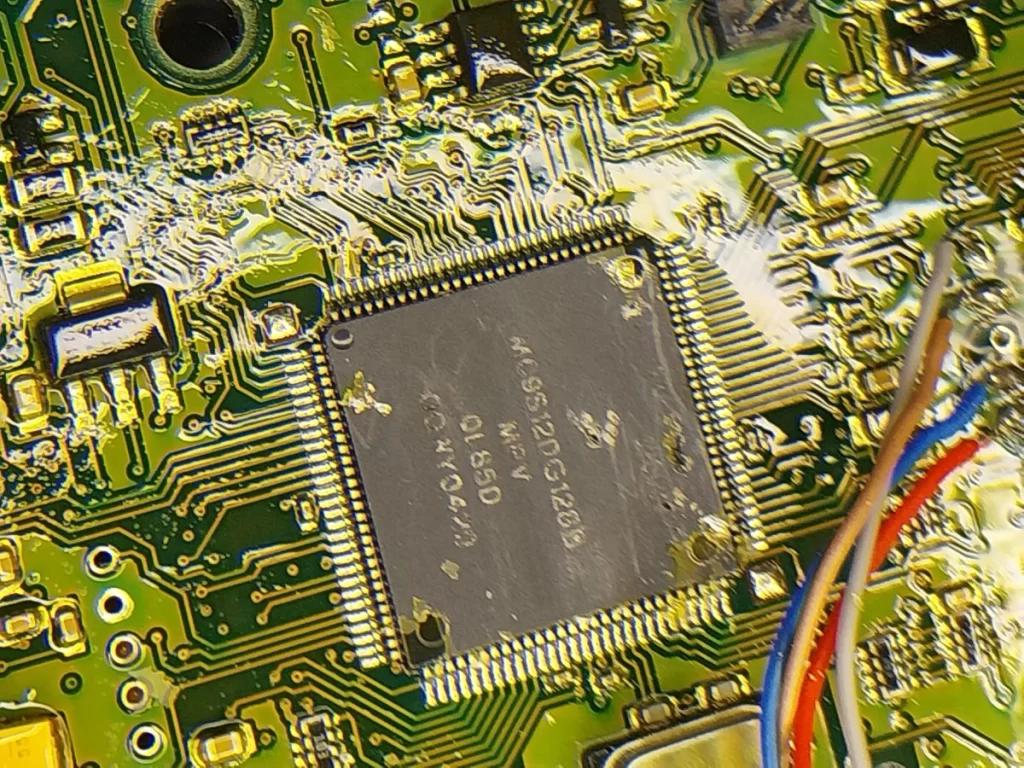

From a conceptual perspective, working with a secured MC9S12XDG128 involves understanding how embedded protection schemes interact with flash and EEPROM memory. Challenges may include locked boot sectors, encrypted firmware blocks, or fragmented archive data that cannot be accessed through standard programming tools. Each project requires careful analysis to decode and retrieve usable heximal or binary output while maintaining data consistency. Rather than simply copying memory, our goal is to restore structured firmware archives that can be used for validation, migration, or controlled duplication in a professional engineering environment.

The MC9S12XD Family features the performance boosting XGATE co-processor. The XGATE, which is programmable in “C” language, has an instruction set which is optimized for data movement, logic and bit manipulation instructions. It runs at twice the bus frequency of the S12X and off-loads the CPU by providing high speed data transfer (and data processing) between any peripheral module, RAM and I/O ports before Break IC. This is particularly useful in applications such as automotive gateways where there are multiple busses carrying heavy data traffic which would otherwise exert a heavy interrupt/processing load on the CPU.

The MC9S12XD Family will feature an enhanced MSCAN module which, when used in conjunction with XGATE, delivers FullCAN performance with virtually unlimited number of mailboxes and retains backwards compatibility with the MSCAN module featured on previous S12 products.

Memory options will range from 64 Kbytes to 512 Kbytes of Freescale’s industry-leading, full automotive spec SG-Flash with additional integrated EEPROM.

In addition to the rich S12 peripheral set, the MC9S12XD Family will feature more RAM, extra A/D channels, new timer features and additional LIN-compatible SCI ports compared with the original S12 D Family. The MC9S12XD Family also features a new flexible interrupt handler which allows multilevel nested interrupts.

The MC9S12XD Family has full 16-bit data paths throughout. The non-multiplexed expanded bus interface available on the 144-pin versions allows an easy interface to external memories. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements. System power consumption is further improved with the new “fast exit from STOP mode” feature and an ultra low power wakeup timer. In addition to the I/O ports available in each module, up to 25 further I/O ports are available with interrupt capability allowing wakeup from STOP or WAIT mode. The MC9S12XD Family will be available in 144-pin LQFP (with optional external bus), 112-pin, and 80-pin options.

The benefits of the Break IC MC9S12XDG128 Heximal service are clear for end users facing operational risk or product obsolescence. Recovered firmware and source code equivalents allow companies to clone or duplicate legacy controllers, support after-sales maintenance, or transition designs to new platforms without full redevelopment. This reduces downtime, lowers engineering cost, and protects long-term investments in embedded systems. By offering a secure, discreet, and SEO-focused service model, we support industries that rely on protected microcontrollers while aligning technical recovery with real business and lifecycle requirements.
