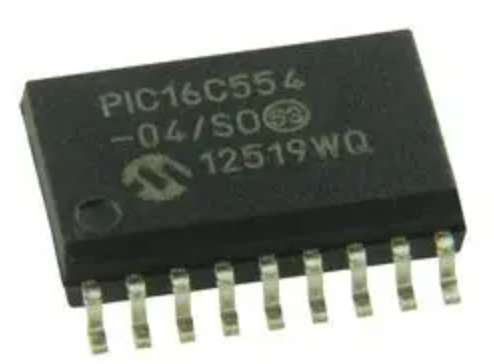

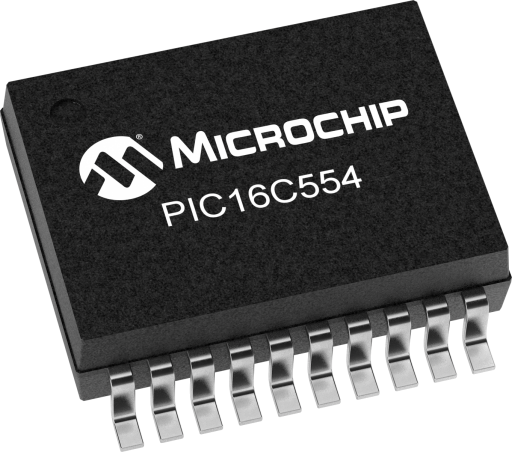

The PIC16C554 microcontroller is a classic embedded control device widely used in compact electronic products where reliability and simplicity are essential. It has been deployed in household appliances, small industrial controllers, motor drivers, access systems, security devices, and measurement equipment. Although the architecture is relatively simple compared with modern microcontrollers, the PIC16C554 remains present in many long-lifecycle products that continue to operate in factories, laboratories, and field installations. Over time, however, companies often lose the original firmware archive, development documentation, or program file that controls the device. When the original source code, firmware binary, or heximal file is no longer available, maintaining or reproducing the system becomes extremely difficult. Our Recover IC PIC16C554 Software service addresses this challenge by helping authorized clients regain access to valuable embedded program logic stored inside the device.

We can Recover IC PIC16C554 Software, please view the Ic PIC16C554 features for your reference:

High Performance RISC CPU:

· Only 35 instructions to learn

· All single-cycle instructions (200 ns), except for program branches which are two-cycle

· Operating speed:

– DC – 20 MHz clock input

– DC – 200 ns instruction cycle

16 special function hardware registers

Special Ic Features (cont’d)

8-level deep hardware stack

Direct, Indirect and Relative addressing modes

Programmable code protection

Power saving SLEEP mode

Peripheral Features:

· 13 I/O pins with individual direction control

· High current sink/source for direct LED drive Selectable oscillator options Serial in-circuit programming (via two pins) Four user programmable ID locations

· Timer0: 8-bit timer/counter with 8-bit programmable prescaler

In many production environments, manufacturers configure the PIC16C554 with protective, protected, locked, or even encrypted security settings to safeguard their embedded firmware and program data. These mechanisms prevent direct access to internal memory, including flash or configuration areas where the firmware binary and operational parameters are stored. Our recovery service focuses on carefully analyzing these secured devices and applying controlled engineering methods to attack, break, or decode restricted access mechanisms when legitimate recovery is required. Through advanced technical workflows, our engineers can retrieve embedded firmware, extract binary or heximal program files, and reconstruct the original archive of embedded software. In certain complex cases where conventional interfaces cannot access the secured memory, controlled decapsulate procedures may be applied to expose the silicon structure and allow deeper analysis of internal data storage regions.

After the embedded memory content has been successfully retrieved, the next step is transforming raw data into usable engineering resources. The recovered firmware binary, EEPROM configuration information, and program file structures are carefully analyzed and verified. This allows the reconstructed firmware archive to be used for engineering validation, documentation recovery, and product continuity. The extracted heximal or binary firmware images can then be used to clone or duplicate the behavior of the original PIC16C554 device on replacement components. By rebuilding the missing source code equivalents and program structures from protected embedded memory, our service enables companies to recover valuable intellectual assets that would otherwise be permanently lost.

Special Ic Features:

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

CMOS Technology:

· Low-power, high-speed CMOS EPROM technology

· Fully static design

· Wide operating voltage range

– 2.5V to 5.5V PIC16C55X

– 3.0 to 5.5V PIC16C55XA

· Commercial, industrial and extended temperature range

· Low power consumption

– < 2.0 mA @ 5.0V, 4.0 MHz

– 15 µA typical @ 3.0V, 32 kHz

– < 1.0 µA typical standby current @ 3.0V

For equipment manufacturers, maintenance providers, and system integrators, the benefits of Recover IC PIC16C554 Software are significant. Recovering embedded firmware data makes it possible to maintain legacy systems, repair field devices, and reproduce hardware units without redesigning the entire control platform. Organizations can continue manufacturing spare units, extend the operational lifespan of existing products, and avoid costly redevelopment. Instead of abandoning proven equipment due to locked or secured microcontrollers, companies can regain access to their embedded program logic and memory resources. Through disciplined handling of protected devices and advanced firmware reconstruction techniques, our service offers a reliable path for retrieving critical software assets and preserving the functionality of embedded electronic systems across multiple industries.
