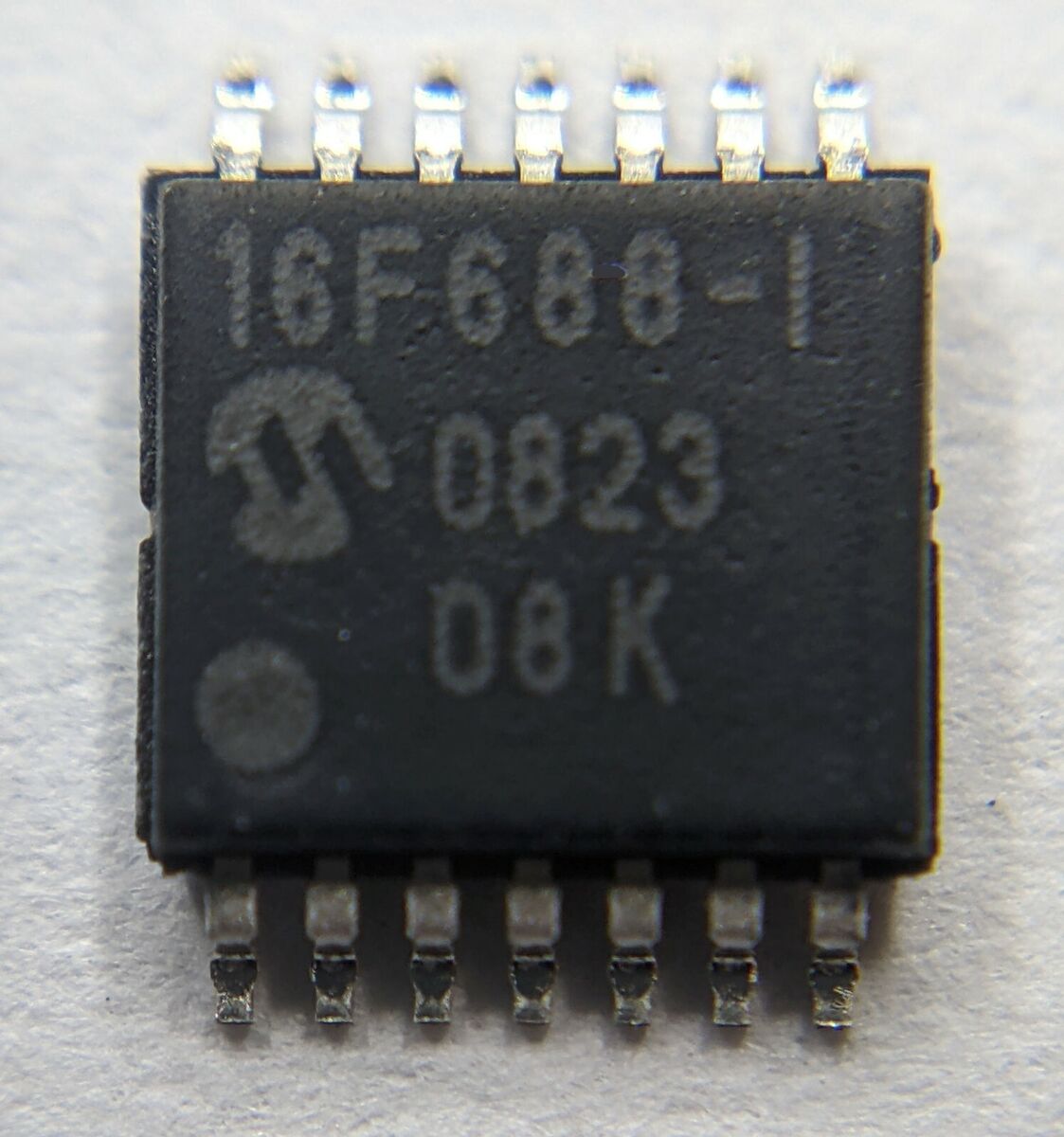

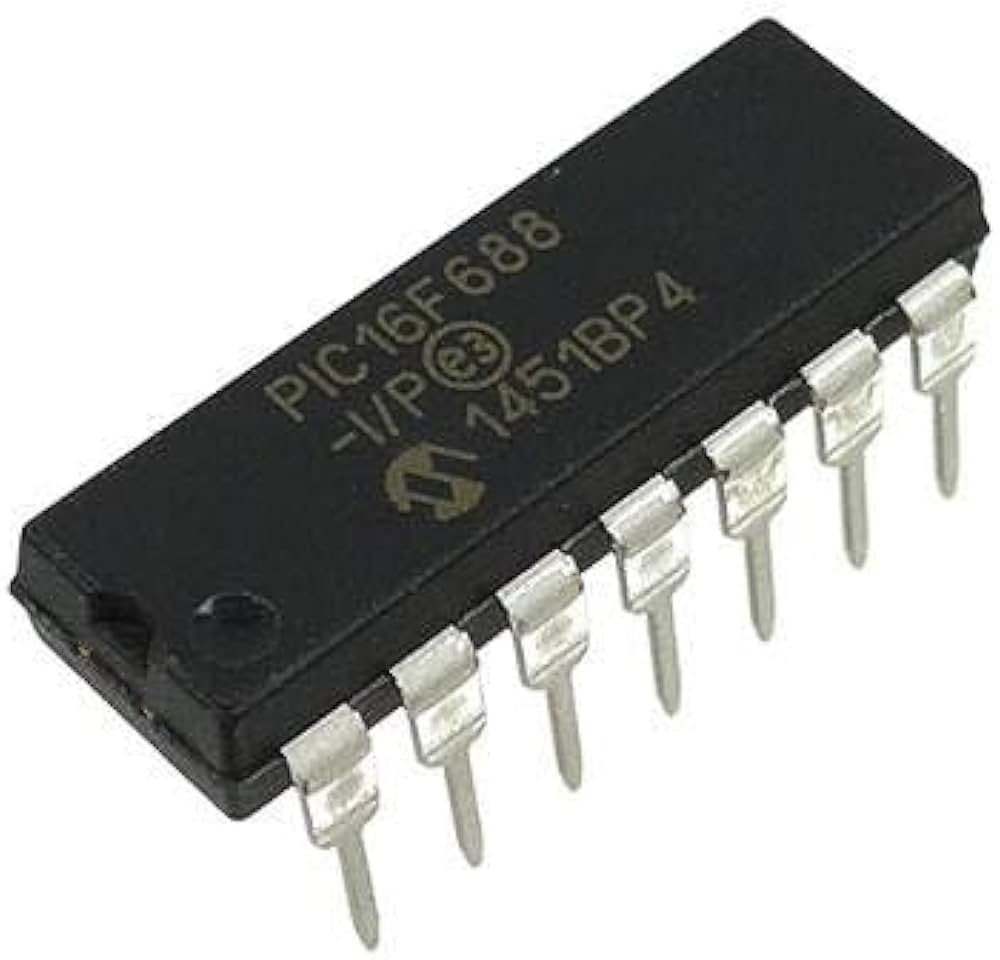

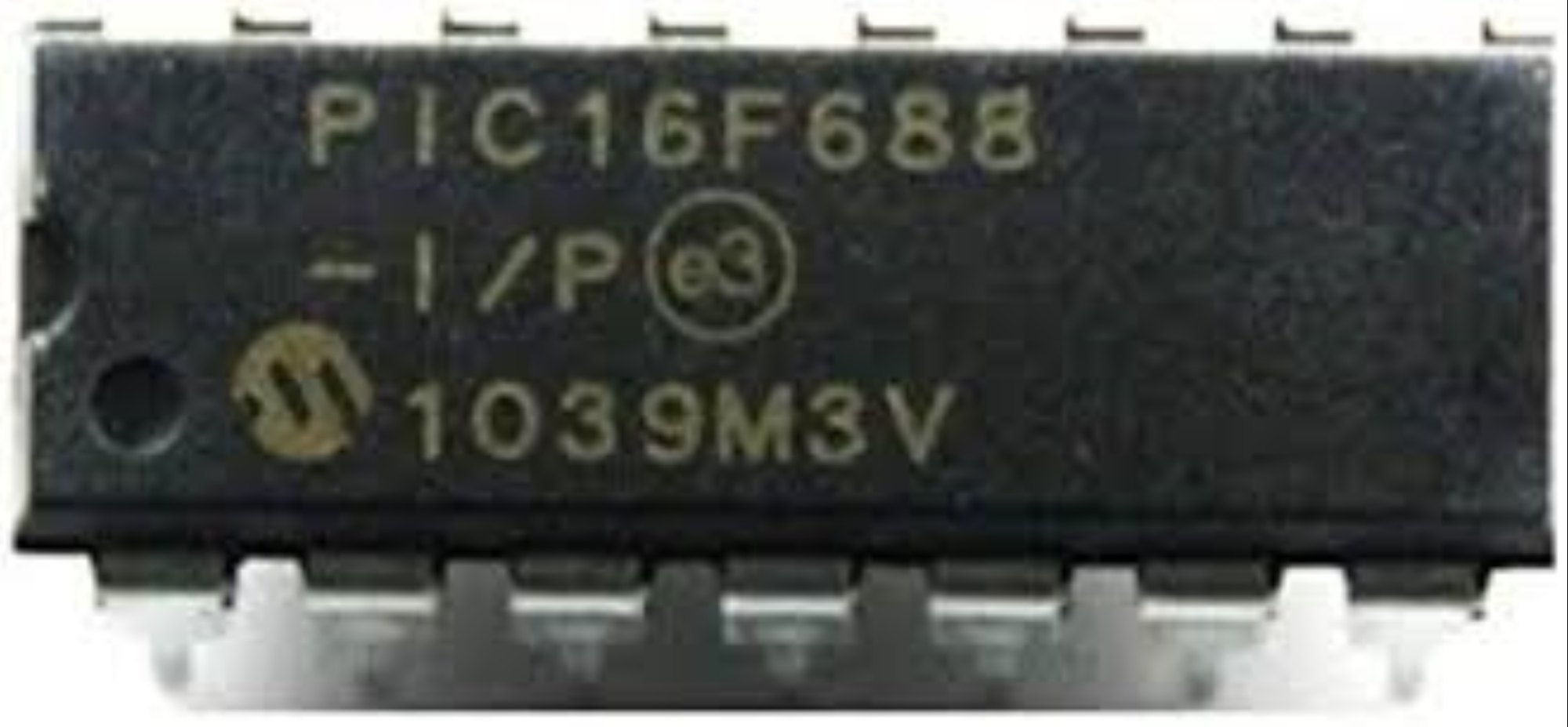

Read MCU PIC16F688 Software out in the format of heximal or binary, silicon package of Microcontroller PIC16F688 will be dissolved by chemical solution according to MCU crack principle, and copy firmware to new microcomputer PIC16F688 for MCU clone

Read MCU PIC16F688 Software out in the format of heximal or binary, silicon package of Microcontroller PIC16F688 will be dissolved by chemical solution according to MCU crack principle, and copy firmware to new microcomputer PIC16F688 for Microprocessor PIC16F688 clone;

High-Performance RISC CPU:

· Only 35 Instructions to Learn:

– All single-cycle instructions except branches

· Operating Speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt Capability

· 8-level Deep Hardware Stack

Low-Power Features:

· Standby Current:

– 50 nA @ 2.0V, typical

· Operating Current:

– 11 ìA @ 32 kHz, 2.0V, typical

– 220 ìA @ 4 MHz, 2.0V, typical

· Watchdog Timer Current:

– 1 ìA @ 2.0V, typical

· Direct, Indirect and Relative Addressing modes

Peripheral Features:

Special Microcontroller Features:

· Precision Internal Oscillator:

– Factory calibrated to ±1%

– Software selectable frequency range of 8 MHz to 125 kHz

– Software tunable

– Two-Speed Start-Up mode

– Crystal fail detect for critical applications

– Clock mode switching during operation for power savings

· Power-Saving Sleep mode

· Wide Operating Voltage Range (2.0V-5.5V)

· Industrial and Extended Temperature Range

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable

· Multiplexed Master Clear with Weak Pull-up or Input Only Pin

· Programmable Code Protection

· High-Endurance Flash/EEPROM Cell:

– 100,000 write Flash endurance

– 1,000,000 write EEPROM endurance

– Flash/Data EEPROM retention: > 40 years

· 12 I/O Pins with Individual Direction Control:

– High-current source/sink for direct LED drive

– Interrupt-on-change pin

– Individually programmable weak pull-ups

– Ultra Low-Power Wake-up

· Analog Comparator module with:

– Two analog comparators

– Programmable On-chip Voltage Reference (CVREF) module (% of VDD)

– Comparator inputs and outputs externally accessible

· A/D Converter:

– 10-bit resolution and 8 channels

· Timer0: 8-bit Timer/Counter with 8-bit Programmable Prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Timer1 Gate (count enable)

– Option to use OSC1 and OSC2 in LP mode as

Timer1 oscillator if INTOSC mode selected

· Enhanced USART Module:

– Supports RS-485, RS-232, LIN 2.0/2.1 and J2602

– Auto-Baud Detect

– Auto-wake-up on Start bit

· In-Circuit Serial Programming™ (ICSP™) via two pins
