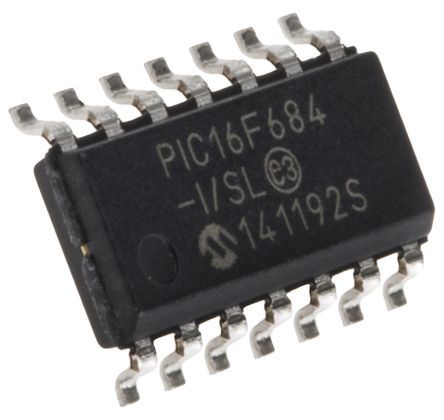

Let’s get some knowledge about PIC16F684 to better Break IC PIC16F684 Binary

14-Pin Flash-Based, 8-Bit CMOS Microcontrollers with nanoWatt Technology

High-Performance RISC CPU:

· Only 35 instructions to learn:

– All single-cycle instructions except branches

· Operating speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt capability

· 8-level deep hardware stack

Break IC PIC16F684 Binary

· Direct, Indirect and Relative Addressing modes

Special Microcontroller Features:

· Precision Internal Oscillator:

– Factory calibrated to ±1%

– Software selectable frequency range of 8 MHz to 31 kHz

– Software tunable

– Two-speed Start-up mode which is useful for Break IC PIC16F616 Heximal

– Crystal fail detect for critical applications

– Clock mode switching during operation for power savings

· Power-saving Sleep mode

· Wide operating voltage range (2.0V-5.5V)

· Industrial and Extended Temperature range

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Brown-out Detect (BOD) with software control option

· Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable

· Multiplexed Master Clear with pull-up/input pin

· Programmable code protection is one of the application for Break IC PIC12F609 Heximal

· High Endurance Flash/EEPROM cell:

– 100,000 write Flash endurance

– 1,000,000 write EEPROM endurance

– Flash/Data EEPROM retention: > 40 years

Peripheral Features:

· 12 I/O pins with individual direction control:

– High current source/sink for direct LED drive in the end

– Interrupt-on-pin change

– Individually programmable weak pull-ups

– Ultra Low-power Wake-up (ULPWU)

· Analog comparator module with:

– Two analog comparators

– Programmable on-chip voltage reference (CVREF) module (% of VDD)

– Comparator inputs and outputs externally accessible

· A/D Converter:

– 10-bit resolution and 8 channels

· Timer0: 8-bit timer/counter with 8-bit programmable prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Gate Input mode

– Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Enhanced Capture, Compare, PWM module:

– 16-bit Capture, max resolution 12.5 ns

– Compare, max resolution 200 ns

– 10-bit PWM with 1, 2 or 4 output channels, programmable “dead time”, max frequency 20 kHz

· In-Circuit Serial ProgrammingTM (ICSPTM) via two pins
