Attack IC LPC2119FBD64 Firmware

We can Attack IC LPC2119FBD64 Firmware, please view below IC LPC2119FBD64 features for your reference:

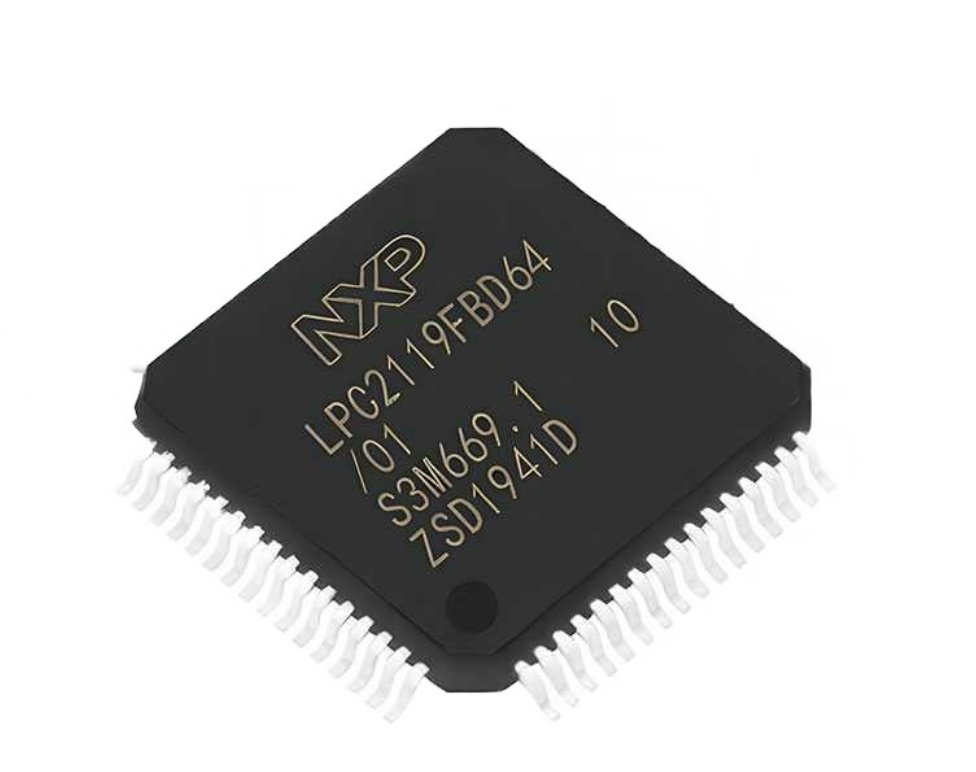

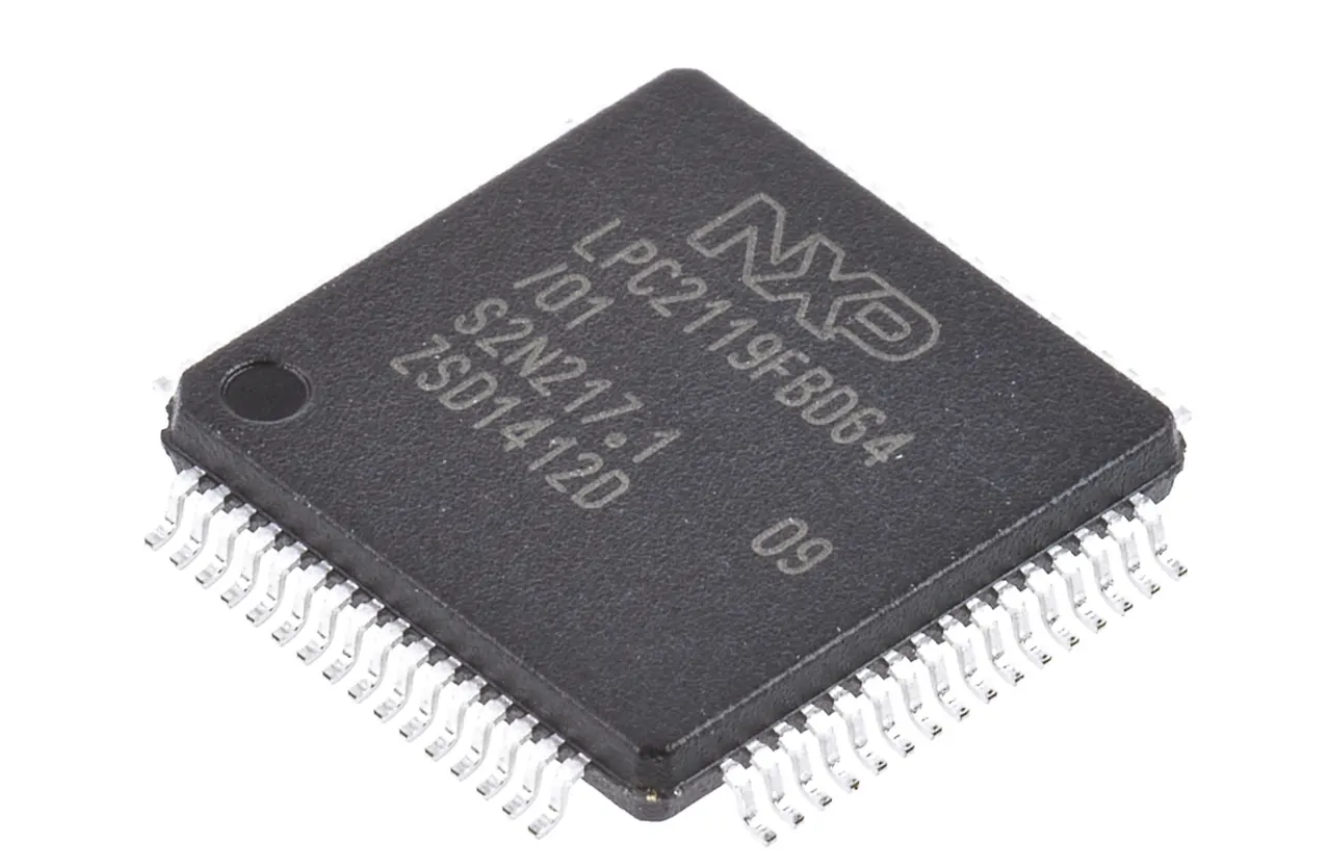

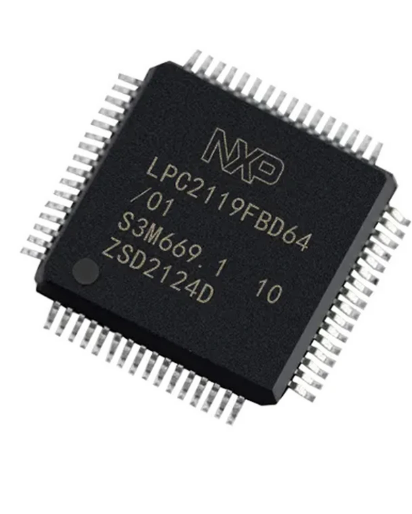

16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package.

16 kB on-chip Static RAM.

128/256 kB on-chip Flash Program Memory. 128-bit wide interface/accelerator enables high speed 60 MHz operation. In-System Programming (ISP) and In-Application Programming (IAP) via on-chip boot-loader software. Flash programming takes 1 ms per 512 byte line. Single sector or full chip erase takes 400 ms

EmbeddedICE-RT interface enables breakpoints and watch points. Interrupt service routines can continue to execute while the foreground task is debugged with the on-chip RealMonitor™ software.

Embedded Trace Macrocell enables non-intrusive high speed real-time tracing of instruction execution

Two interconnected CAN interfaces with advanced acceptance filters.

Four channel 10-bit A/D converter with conversion time as low as 2.44 µs.

Multiple serial interfaces including two UARTs (16C550), Fast I2C (400 kbits/s) and two SPIs 60 MHz maximum CPU clock available from programmable on-chip

Phase-Locked Loop with settling time of 100 µs.

Vectored Interrupt Controller with configurable priorities and vector addresses.

Two 32-bit timers (with four capture and four compare channels), PWM unit (six outputs), Real Time Clock and Watchdog

Up to forty-six 5 V tolerant general purpose I/O pins. Up to nine edge or level sensitive external interrupt pins available.

On-chip crystal oscillator with an operating range of 1 MHz to 30 MHz

Two low power modes, Idle and Power-down.

Processor wake-up from Power-down mode via external interrupt.

Individual enable/disable of peripheral functions for power optimization.

Dual power supply:

CPU operating voltage range of 1.65 V to 1.95 V (1.8 V ±0.15 V).

I/O power supply range of 3.0 V to 3.6 V (3.3 V ± 10 %) with 5 V tolerant I/O pads.
