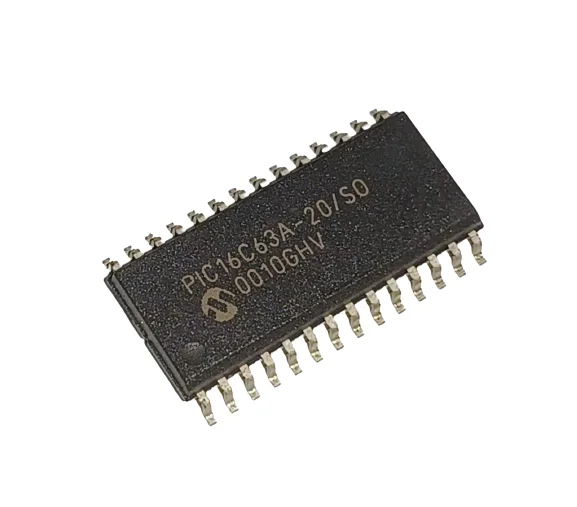

Attack Microcontroller PIC16C63A Heximal

Attack Microcontroller PIC16C63A protective memory and readout heximal of MCU PIC16C63A flash memory, microprocessor PIC16C63A unlocking process will normally start from chip surface decapsulation;

Attack Microcontroller PIC16C63A protective memory and readout heximal of MCU PIC16C63A flash memory, microprocessor PIC16C63A unlocking process will normally start from chip surface decapsulation

Devices included in this data sheet:

PIC16C7X Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler can be incremented during SLEEP via external

PIC16CXX Microcontroller Core Features:

· High performance RISC CPU

· Only 35 single word instructions to learn

· All single cycle instructions except for program branches which are two cycle

· Operating speed: DC – 20 MHz clock input

DC – 200 ns instruction cycle

· 4 K x 14 words of Program Memory,

192 x 8 bytes of Data Memory (RAM)

· Interrupt capability

· Eight-level deep hardware stack

· Direct, indirect and relative addressing modes

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Programmable code protection

· Power-saving SLEEP mode crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Capture, Compare, PWM modules

– Capture is 16-bit, max. resolution is 200 ns

– Compare is 16-bit, max. resolution is 200 ns

– PWM max. resolution is 10-bit

· 8-bit multichannel Analog-to-Digital converter

· Synchronous Serial Port (SSP) with SPITM and I2CTM

· Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)

· Parallel Slave Port (PSP), 8-bits wide with external RD, WR and CS controls when Attack Microcontroller

· Brown-out detection circuitry for Brown-out Reset (BOR) Pin Diagram: PDIP, Windowed CERDIP

· Selectable oscillator options

· Low power, high speed CMOS EPROM technology

· Wide operating voltage range: 2.5V to 5.5V

· High Sink/Source Current 25/25 mA

· Commercial, Industrial and Automotive temperature ranges

· Low power consumption:

– < 5 mA @ 5V, 4 MHz

– 23 mA typical @ 3V, 32 kHz

– < 1.2 mA typical standby current
