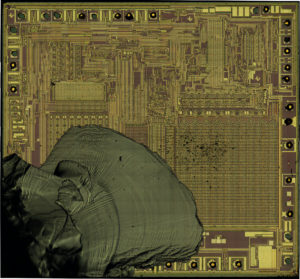

Attack Chip ST62T00CB6 Firmware

Attack Chip ST62T00CB6 Firmware

Attack Chip ST62T00CB6 Firmware

We can Attack Chip ST62T00CB6 Firmware and extract its source code out of eeprom, please view below Chip ST62T00CB6 features for your reference:

Memories

– 1K or 2K bytes Program memory (OTP, EPROM, FASTROM or ROM) with read-out protection

– 64 bytes RAM

Clock, Reset and Supply Management

– Enhanced reset system

PDIP16

– Low voltage detector (LVD) for safe Reset and Crack MCU

– Clock sources: crystal/ceramic resonator or RC network, external clock, backup oscillator (LFAO)

– Oscillator safeguard (OSG)

SO16

– 2 Power saving modes: Wait and Stop



Interrupt Management

– 4 interrupt vectors plus NMI and RESET

– 9 external interrupt lines (on 2 vectors)



SSOP16

9 I/O Ports

– 9 multifunctional bidirectional I/O lines

– 4 alternate function lines

– 3 high sink outputs (20mA)



2 Timers

– Configurable watchdog timer



CDIP16W

– 8-bit timer/counter with a 7-bit prescaler

Analog Peripheral

(See Section 11.5 for Ordering Information)

– 8-bit ADC with 4 input channels (except on ST6203C) Instruction Set

Development Tools

– Full hardware/software development package

– 8-bit data manipulation

– 40 basic instructions

– 9 addressing modes

– Bit manipulation
