PostHeaderIcon Recover MCU PIC16C72 Software

We can Recover MCU PIC16C72 Software, please see the MCU PIC16C72 features for your reference:

PIC16C7X Microcontroller Core Features:

· High-performance RISC CPU

· Only 35 single word instructions to learn

· All single cycle instructions except for program branches which are two cycle

· Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle

· Up to 8K x 14 words of Program Memory, up to 368 x 8 bytes of Data Memory (RAM)

· Interrupt capability

· Eight level deep hardware stack

· Direct, indirect, and relative addressing modes

· Power-on Reset (POR) to facilitate the process of Recover Chip PIC16C73B Firmware

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

· Programmable code-protection

· Power saving SLEEP mode

· Selectable oscillator options

· Low-power, high-speed CMOS EPROM technology which is quite common for MCU Cracking

· Fully static design

· Wide operating voltage range: 2.5V to 6.0V

· High Sink/Source Current 25/25 mA

· Commercial, Industrial and Extended temperature ranges

· Low-power consumption:

· < 2 mA @ 5V, 4 MHz

· 15 µA typical @ 3V, 32 kHz

· < 1 µA typical standby current

PIC16C7X Peripheral Features:

· Timer0: 8-bit timer/counter with 8-bit prescaler

· Timer1: 16-bit timer/counter with prescaler, can be incremented during sleep via external crystal/clock

· Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

· Capture, Compare, PWM module(s)

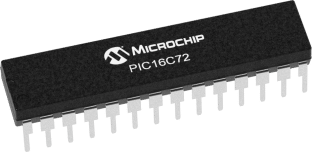

Recover MCU PIC16C72 Software

Recover MCU PIC16C72 Software

· Capture is 16-bit, max. resolution is 12.5 ns, Compare is 16-bit, max. resolution is 200 ns, PWM max. resolution is 10-bit

· 8-bit multichannel analog-to-digital converter

· Synchronous Serial Port (SSP) with SPI™ and I2C™

· Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)

· Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls before Recover MCU PIC16C63A Firmware

· Brown-out detection circuitry for Brown-out Reset (BOR)
