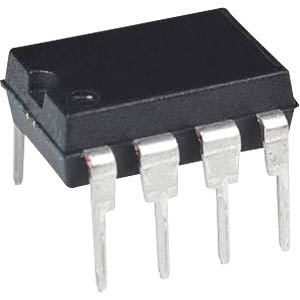

Break Microcontroller PIC12F617 Binary

We can Break Microcontroller PIC12F617 Binary, please view the Microcontroller PIC12F617 features for your reference:

High-Performance RISC CPU:

· Only 35 Instructions to Learn:

– All single-cycle instructions except branches

· Operating Speed:

– DC – 20 MHz oscillator/clock input

– DC – 200 ns instruction cycle

· Interrupt Capability

· 8-Level Deep Hardware Stack

· Direct, Indirect and Relative Addressing modes

Special Microcontroller Features:

· Precision Internal Oscillator:

– Factory calibrated to ±1%, typical

– Software selectable frequency: 4 MHz or 8 MHz

· Power-Saving Sleep mode

· Voltage Range:

– PIC12F609/615/617: 2.0V to 5.5V

– PIC12HV609/615: 2.0V to user defined maximum (see note)

· Industrial and Extended Temperature Range

· Power-on Reset (POR)

· Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

· Brown-out Reset (BOR)

마이크로프로세서 PIC12F617 잠금 비트를 크래킹한 후 보안 플래시 메모리에서 암호화된 MCU PIC12F617 플래시 메모리 바이너리를 복원하고 PIC12F617 잠금 마이크로컨트롤러를 새 장치로 복제합니다.

· Watchdog Timer (WDT) with independent Oscillator for Reliable Operation after Break Microcontroller

· Multiplexed Master Clear with Pull-up/Input Pin

· Programmable Code Protection

· High Endurance Flash:

– 100,000 write Flash endurance

– Flash retention: > 40 years

· Self Read/ Write Program Memory (PIC12F617 only)

Low-Power Features:

· Standby Current:

– 50 nA @ 2.0V, typical

· Operating Current:

– 11 mA @ 32 kHz, 2.0V, typical

260 mA @ 4 MHz, 2.0V, typical

· Watchdog Timer Current:

– 1 mA @ 2.0V, typical

Peripheral Features:

· Shunt Voltage Regulator (PIC12HV609/615 only):

– 5 volt regulation

– 4 mA to 50 mA shunt range

· 5 I/O Pins and 1 Input Only

· High Current Source/Sink for Direct LED Drive when Break IC

– Interrupt-on-pin change or pins

– Individually programmable weak pull-ups

· Analog Comparator module with:

Copiar Microcontrolador Bloqueado PIC12F617 Flash O programa precisa quebrar a proteção sobre a memória flash MCU PIC12F617 segura e, em seguida, extrair o arquivo heximal incorporado do processador PIC12F617;

– One analog comparator

– Programmable on-chip voltage reference (CVREF) module (% of VDD)

– Comparator inputs and output externally accessible

– Built-In Hysteresis (software selectable)

· Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler

· Enhanced Timer1:

– 16-bit timer/counter with prescaler

– External Timer1 Gate (count enable)

– Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected

– Option to use system clock as Timer1

· In-Circuit Serial ProgrammingTM (ICSPTM) via Two Pins

PIC12F615/617/HV615 ONLY:

· Enhanced Capture, Compare, PWM module:

– 16-bit Capture, max. resolution 12.5 ns

– Compare, max. resolution 200 ns

– 10-bit PWM with 1 or 2 output channels, 1 output channel programmable “dead time,” max. frequency 20 kHz, auto-shutdown

· A/D Converter:

– 10-bit resolution and 4 channels, samples internal voltage references

· Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
