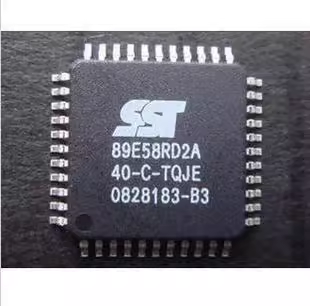

Break IC SST89E58RD2A Software

We can Break IC SST89E58RD2A Software, below please find the IC SST89E58RD2A features for your reference:

SST89E/V58 / 54 / 52RD2/RD FlashFlex51 MCU

Preliminary FEATURES:

· 8-bit 8051-Compatible Microcontroller (MCU)

· Ten Interrupt Sources at 4 Priority with Embedded SuperFlash Memory to Clone IC

– Four External Interrupt Inputs

– Fully Software Compatible

· Programmable Watchdog Timer

– Development Toolset Compatible

· Programmable Counter Array (PCA)

– Pin-For-Pin Package Compatible

· Four 8-bit I/O Ports (32 I/O Pins)

· SST89E5xRD2 Operation

One 4-bit Port

– 0 to 40 MHz at 5V

· Second DPTR register

· SST89V5xRD2 Operation

· Low EMI Mode (Inhibit ALE)

– 0 to 33 MHz at 3V

· SPI Serial Interface

· 1 KByte Internal RAM

· Standard 12 Clocks per cycle

· Dual Block SuperFlash EEPROM option to double the speed to 6

– 8/16/32 KByte primary block +

· TTL- and CMOS-Compatible Logic 8 KByte secondary block

· Brown-out Detection (128-Byte sector size for both blocks)

· Low Power Modes

– Individual Block Security Lock with SoftLock

– Concurrent Operation during

– Power-down Mode with External In-Application Programming (IAP)

– Idle Mode

– Memory Overlay for Interrupt Support during IAP

· Temperature Ranges:

· Support External Address Range up to 64

– Commercial (0°C to +70°C) KByte of Program and Data Memory

– Industrial (-40°C to +85°C)

· Three High-Current Drive Ports (16 mA each)

· Packages Available

· Three 16-bit Timers/Counters

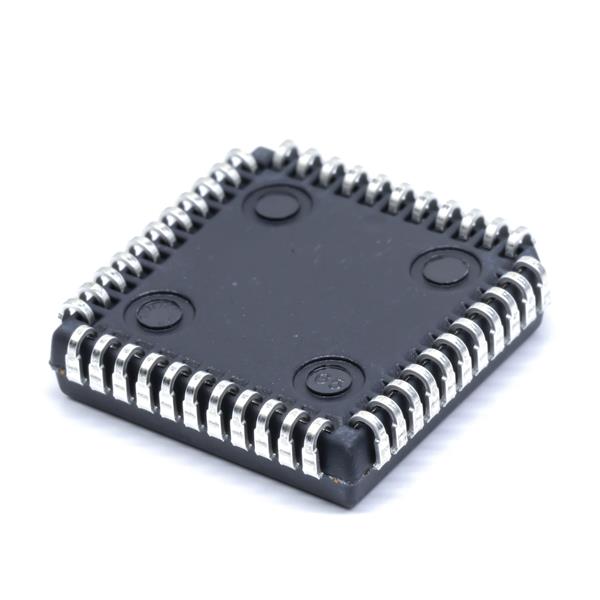

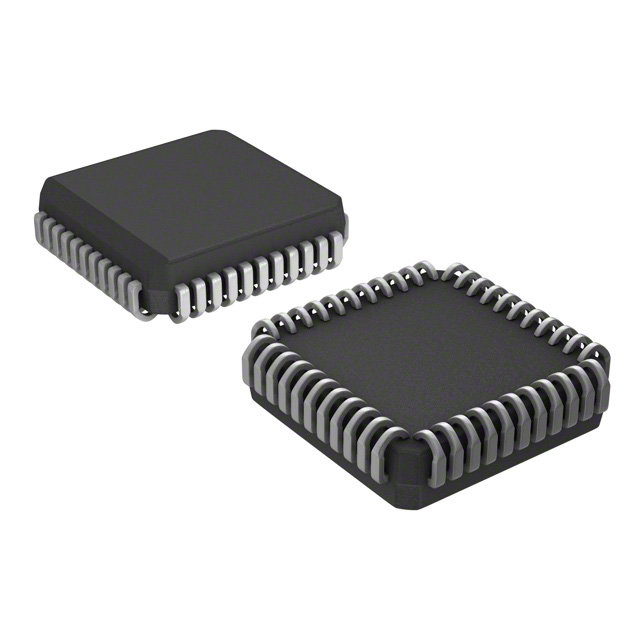

– 44-lead PLCC

· Full-Duplex, Enhanced UART

– 40-pin PDIP (Port 4 feature

– 44-lead TQFP

– Framing Error Detection

– Automatic Address Recognition

· All non-Pb (lead-free) devices
