PostHeaderIcon Attack Microcontroller MC68HC705P6ACDW Binary

attack-microcontroller-mc68hc705p6acdw-binary

attack-microcontroller-mc68hc705p6acdw-binary

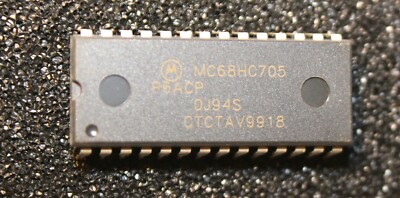

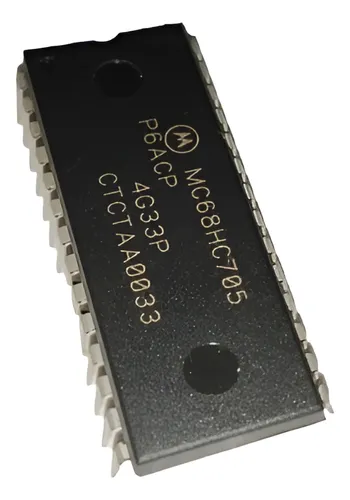

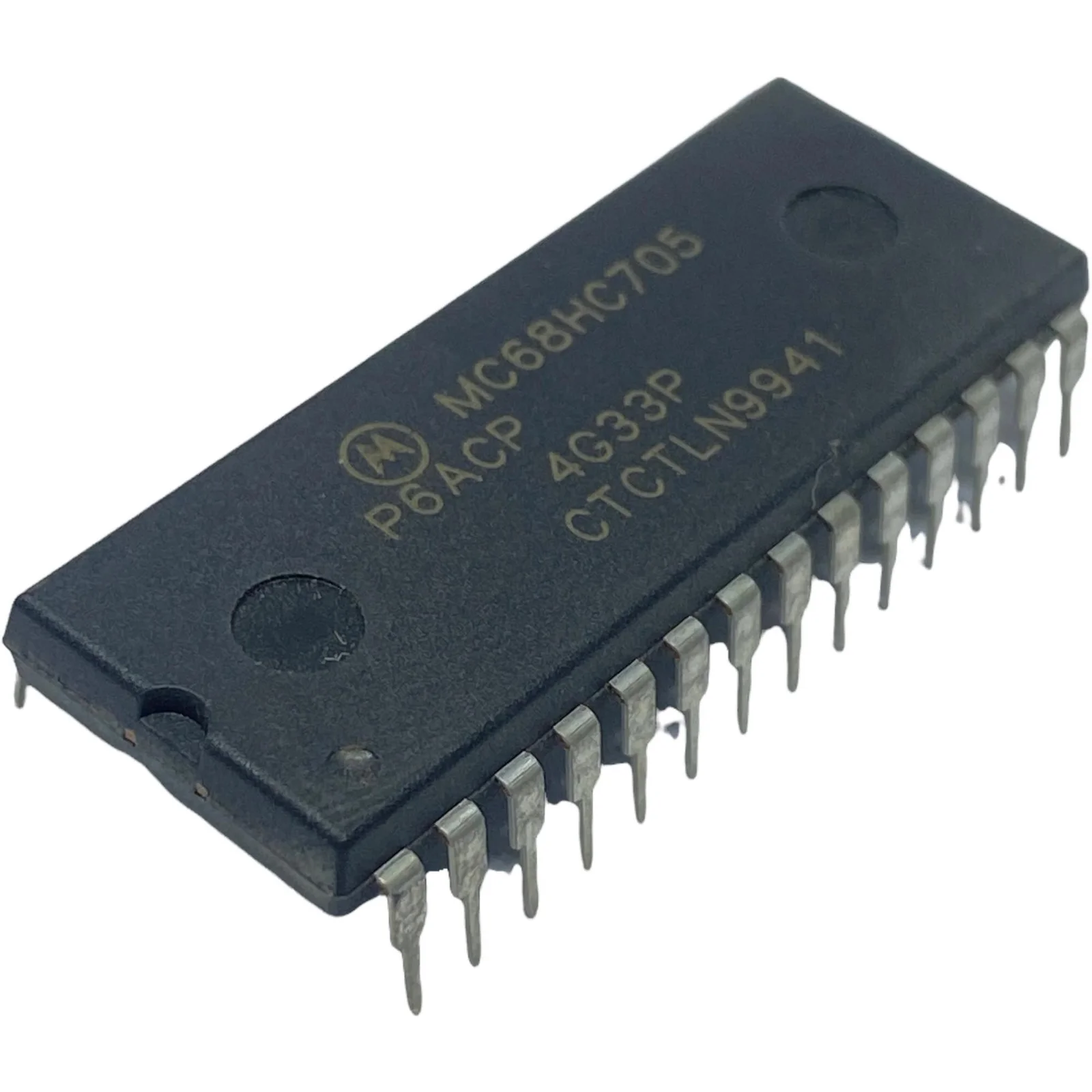

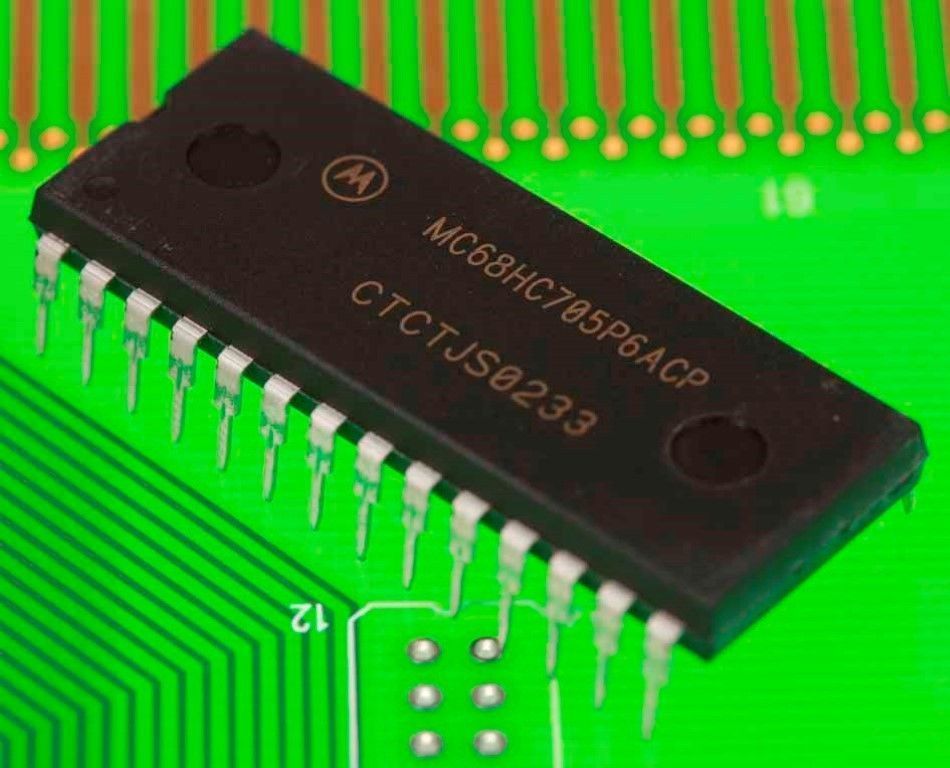

We can reverse engineering Microcontroller MC68HC705P6ACDW Binary, please view Microcontroller MC68HC705P6ACDW feature for your reference:

Features of the MC68HC705P6A include:

· Low cost

· M68HC05 core

· 28-pin SOIC, PDIP, or windowed DIP package if attack microcontroller

· 4672 bytes of user EPROM (including 48 bytes of page zero EPROM and 16 bytes of user vectors)

·  239 bytes of bootloader ROM

· 176 bytes of on-chip RAM

· 4-channel 8-bit A/D converter

· SIOP serial communications port

· 16-bit timer with output compare and input capture if attack microcontroller

· 20 bidirectional I/O lines and 1 input-only line

· PC0 and PC1 high-current outputs

· Single-chip, bootloader, and test modes

· Power-saving stop, halt, and wait modes

· Static EPROM mask option register (MOR) selectable options:

– COP watchdog timer enable or disable

– Edge-sensitive or edge- and level-sensitive external interrupt when attack microcontroller

– SIOP most significant bit (MSB) or least significant bit (LSB) first

– SIOP clock rates: OSC divided by 8, 16, 32, or 64

– Stop instruction mode, STOP or HALT

– EPROM security external lockout

– Programmable keyscan (pullups/interrupts) on PA0–PA7

Circuit Engineering Company Limited continues to be recognized as the Southern China Leader in Services for IC Break, MCU attack, Chip Recover, Microcontroller Copy service. With the advancement of today’s modern circuit board technology, it is more important than ever to have specialists available to help you at a moment’s notice. Our engineering and commercial teams collectively have a vast amount of electronic experience covering field include Consumer Electronics, Industrial Automation Electronics, Wireless Communication Electronics., etc. For more information please contact us through email.
